Helix Ci3 K100..2FM-S3 MK2 - 10cm 2-way component system

HELIX Ci3 K100.2FM-S3 MK2

HELIX COMPOSE. The perfect loudspeaker for every composition.

Born from the ever-increasing demands of modern vehicle technology and HELIX's signature pursuit of intelligent solutions, we made the advanced redesign of proven universal loudspeaker systems our mission. The result: the innovative HELIX COMPOSE platform, which, following the principle "designed in the car, for the car," combines classic universal loudspeakers with the advantages of vehicle-specific systems.

Innovative materials and cutting-edge technologies paired with smart, practical engineering – the best of both worlds in harmony: very high efficiency, fantastic sound quality, and enormous dynamics that fit into any vehicle. HELIX COMPOSE – Universal loudspeakers reimagined.

Performance Highlight

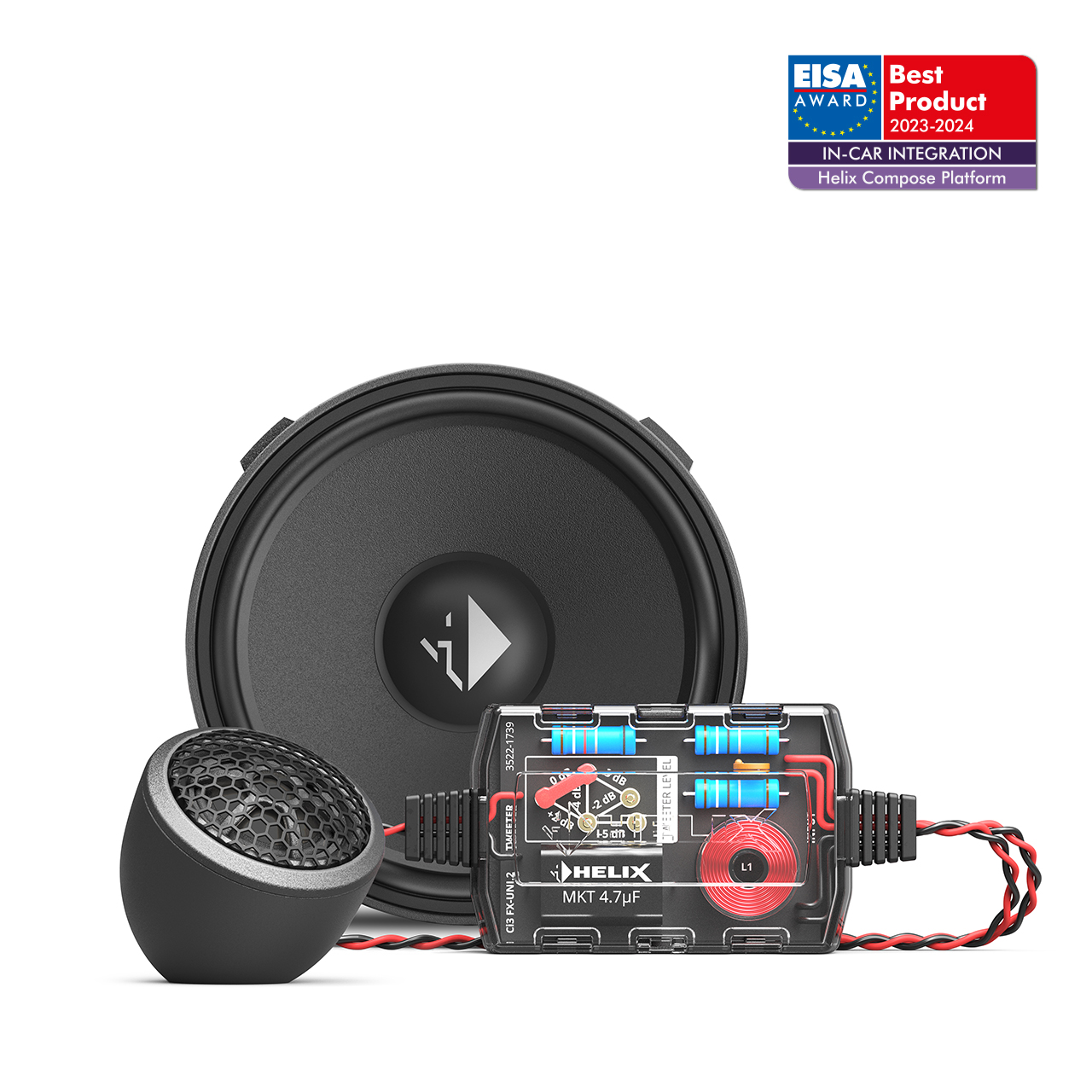

The i3 Speaker Kits offer everything you could want from a 2-way system: a first-class sound experience that, thanks to high-quality materials and exceptionally smart engineering, is very easy and convenient to install in your car. All components are ideally matched and, together with our HELIX and MATCH amplifiers, form the perfect team, guaranteeing maximum performance and power output at all times. Furthermore, our new mechanical technologies, with a clear focus on safety during connection and operation, have been implemented, creating ideal conditions for integration into the vehicle with maximum compatibility. Maximum Efficiency HELIX COMPOSE stands for smart engineering and is therefore based on highly efficient 3-ohm technology, which harmonizes perfectly with all HELIX and MATCH amplifiers and simultaneously enables a noticeably increased efficiency and maximum sound pressure level. Individual models will also be available as an optional 2-ohm version, which, in conjunction with the appropriate amplifiers, extracts the absolute maximum performance and power from the respective speaker component. Cenosphere Paper Cone With the innovative "Cenosphere" coating, micro-hollow spheres are embedded in a polymer layer and applied to the diaphragm. This process increases stiffness and also optimizes its internal damping. This results in an exceptionally stable yet lightweight diaphragm, offering outstanding precision in sound reproduction.

High-Tech Polymer Composite Basket

All HELIX COMPOSE i7 and i3 speaker baskets are made of a high-tech polymer composite material, which is further reinforced with glass beads. The result: maximum stability with minimal resonance, while also eliminating flux modulation of the magnet system and providing maximum resistance to thermal influences. Finally, this allows for significantly more compact basket dimensions and thus simplified installation in confined spaces.

Natural Brilliance and Precise Detail Resolution

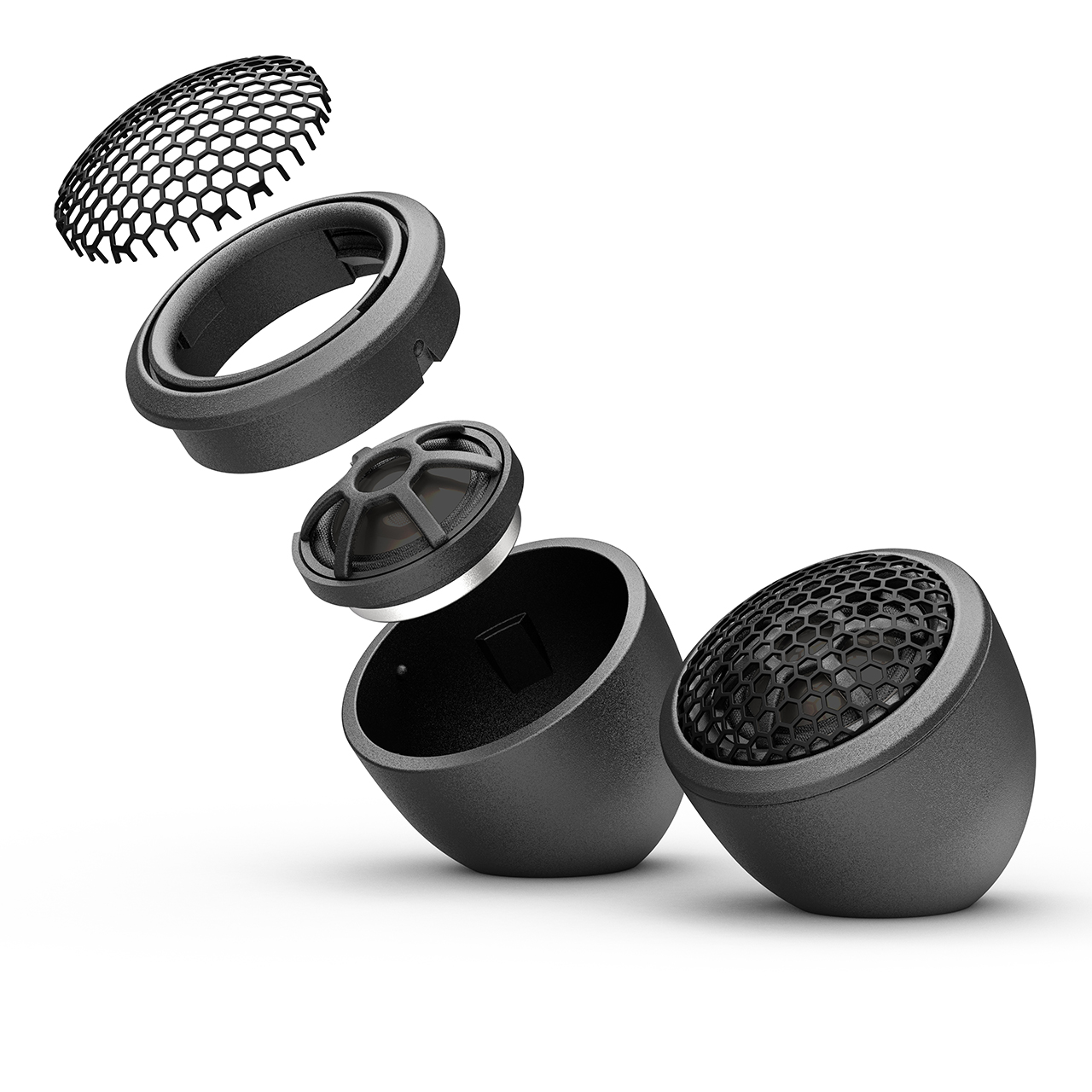

The 20 mm tweeter features an elegant aluminum dome with a black finish, which impresses with its perfect balance of low weight and high rigidity. In combination with the redesigned, highly efficient neodymium magnet system, even more precise, clear, and detailed treble reproduction is achieved. The result is natural brilliance with the finest resolution and impressive dynamics – for a listening experience of the highest caliber.

Perfectly Separated

The crossover is designed for optimal use with our HELIX Compose i3 components, and thus for the professional, vehicle-integrated performance typical of COMPOSE. It offers a 6-stage treble level adjustment with a 12 dB slope for optimal adaptation to the installation position, as well as integrated treble protection.

Furthermore, no effort was spared in the complex tuning of the crossover to ensure the best possible frequency band distribution and a harmonious sound.

Thanks to its compact dimensions, the Ci3 FX-UNI.2 is perfect for installation in space-saving installations and is compatible with our COMPOSE Connect and WireKit technologies for maximum operational reliability and to minimize installation errors.

COMPOSE Connect

Goodbye DIY and soldering. Compose Connect is the ingenious connector system that significantly simplifies car audio installation in conjunction with HELIX COMPOSE components. Proprietary plastic housings, into which standard flat plugs and sockets snap, ensure a reverse polarity-protected and absolutely reliable connection to automotive standards.

FlexMount20 & FlexMount100 – Universal meets vehicle-specific

FlexMount is a mounting system based on specially developed adapter rings that allows the installation of COMPOSE FlexMount speakers in a virtually unlimited number of vehicles. This transforms the universal speaker into a vehicle-specific speaker in no time, allowing for easy and acoustically optimized installation in the original mounting position of any vehicle using the appropriate FlexMount ring.

WireKits – Plug & Play at the highest level

Our WireKits make connecting the HELIX COMPOSE speaker system to the original wiring harness effortless. Manufactured to the high standards of the automotive industry, these lockable adapter cables meet all the requirements for the harsh environmental conditions found in vehicles.

Features

• 2-way performance speaker kit, combining unique sound characteristics with versatile integration options
• High efficiency and 3-ohm technology for maximized amplifier power output
• Sophisticated automotive-grade connectors for a secure, reverse-polarity connection – COMPOSE Connect & FlexConnect Tweeter 20 mm performance tweeter with black aluminum dome for precise, clear, and detailed high-frequency reproduction High-quality aluminum dome with a perfect balance of low weight and high rigidity – for natural brilliance and the finest detail resolution Refined, highly efficient neodymium magnet for optimized magnetic flux and increased performance Compact design and various mounting options for diverse installation requirements Flush and angled mounting housing included Midrange 100 mm midrange driver with unique Cenosphere-coated paper cone for precise and detailed sound reproduction Glass bead-reinforced high-tech polymer composite basket for maximum rigidity and minimal vibration Resonances
• Flat neodymium magnet system with high efficiency allows for a shallow mounting depth
• Polyurethane dome (dustcap) for optimized frequency response in the upper midrange
• Crossover
• High-quality, separate crossover with compact dimensions for easy installation
• 6-step tweeter level adjustment with integrated tweeter protection for optimal adaptation to the mounting position
• Extensively tuned – with a 12 dB slope for the tweeter
• Compatible with the optionally available WireKits for a vehicle-specific, reversible connection to the original vehicle wiring harness
• Compatible with the optionally available, vehicle-specific FlexMount100 & FlexMount20 adapter rings, which enable acoustically optimized and professional integration in the vehicle's original mounting position
Technical Specifications
• Power Handling RMS / Max. P 80 / 120 Watts
Frequency Range 120 Hz - 25,000 Hz Impedance Z 3 Ω
• Sensitivity SPL 91 dB @ 2.83V / 1m
• 87 dB @ 1W / 1m
• Outer Diameter ø
• Tweeter: 32.0 mm
• Midrange: 98.0 mm
• Mounting Diameter ø
• Tweeter: 32.0 mm
• Midrange driver: 89.0 mm
• Mounting depth
• Tweeter: 9.8 mm
• Midrange driver: 30.0 mm
• Crossover dimensions
• 103.3 x 50.4 x 25.0 mm

Midrange driver

• Impedance Z 3 Ω
• DC resistance Re 3.0 Ω
• Resonance frequency Fs 146 Hz
• Mechanical Q factor Qms 4.49
• Electrical Q factor Qes 1.02
• Total Q factor Qts 0.83
• Compliance Cms 280 μm/N Equivalent volume Vas 1.1 L Force factor B*l 3.4 Tm Membrane area Sd 53 cm² Moving mass Mms 4.3 g Mechanical resistance Rms 0.87 kg/s Voice coil diameter ø 25 mm Voice coil winding width 4.8 mm Max. Linear diaphragm excursion Xmax +/- 2.0 mm Tweeter Impedance Z 4 Ω Resonance frequency Fs 1800 Hz Voice coil diameter ø 20 mm Features Tweeter: Extremely compact, aluminum dome, neodymium magnet and FlexMount20 Midrange Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100 Tweeter crossover: 12 dB high-pass filter, tweeter protection and Level Adjustment Compatibility FlexMount20 FlexMount100 FlexConnect Inlays Scope of Delivery 2 x Ci3 T20FM-AL MK2 Tweeters 2 x Ci3 M100FM-S3 Midranges 2 x Ci3 FX-UNI.2 Crossovers 2 x Connection Cables 2 x COMPOSE Connector Kits 2 x Tweeter Mounting Accessories 2 x Midrange Mounting Accessories 2 x FlexConnect Inlay A 1 x Mounting Hardware
