Ampire KCX401

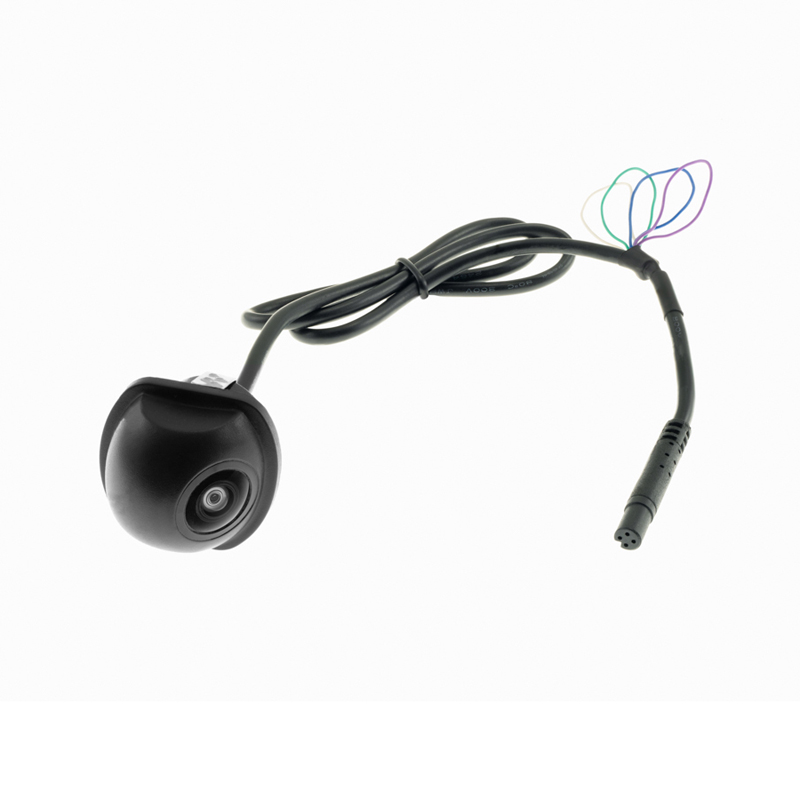

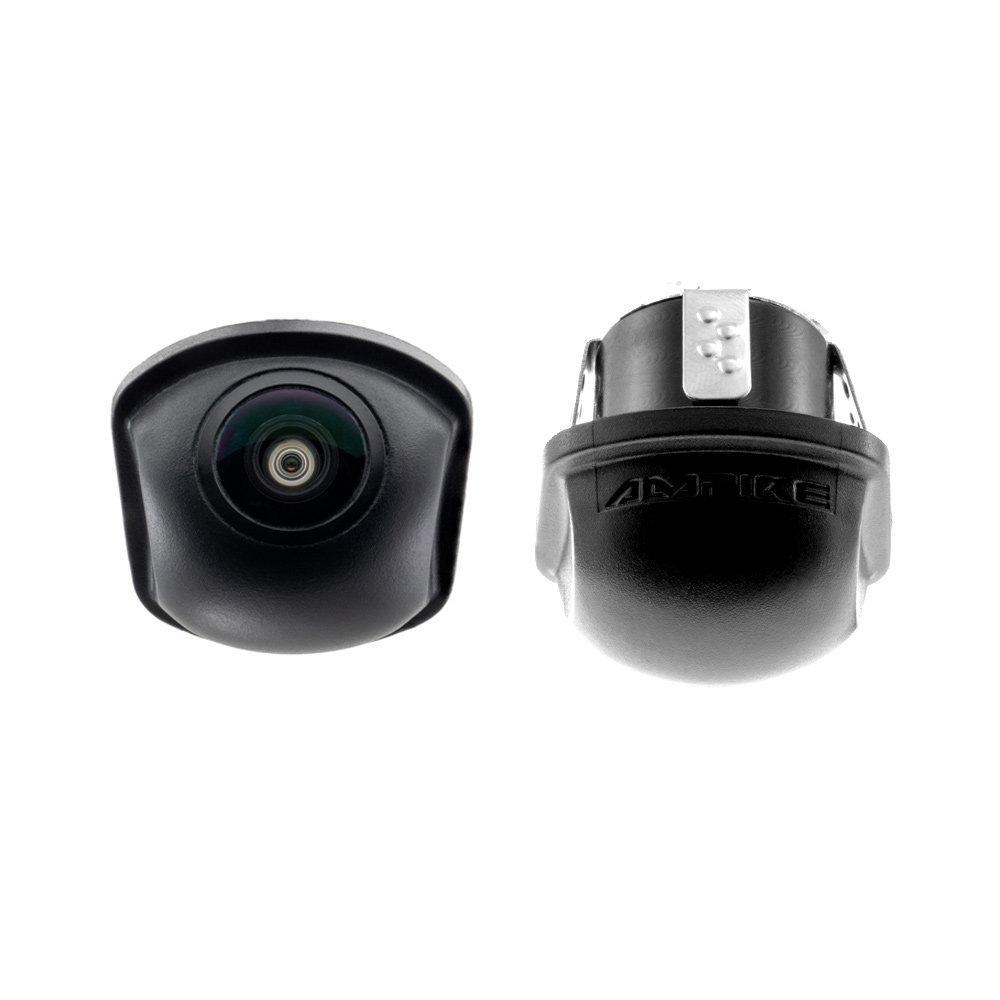

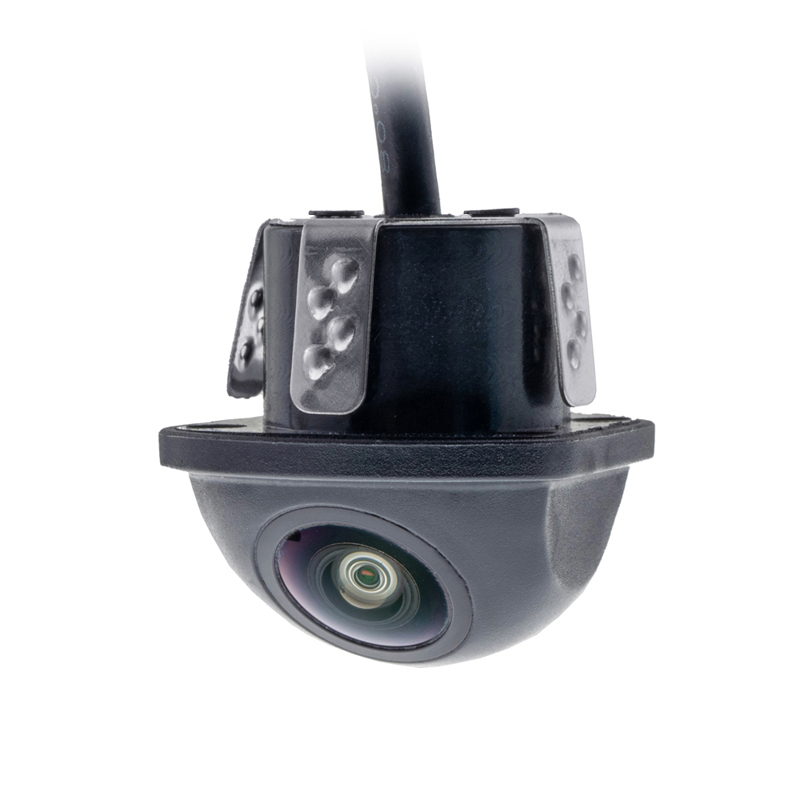

The KCX401 miniature wide-angle under-cabinet camera is a rearview camera with unlimited application possibilities in cars, buses, motorhomes, trucks, or trailers. The matte black plastic housing is particularly weather-resistant, IP69K waterproof, and extremely robust. Two different guide lines (narrow/wide) can be optionally overlaid into the video signal, allowing the viewer to park more easily. The delivery includes an 8-meter extension cable with high-quality copper strands.
FEATURES
- HD wide-angle camera in a plastic housing
- Can be used for 24/7 continuous operation
- IP69K waterproof with stainless steel bracket

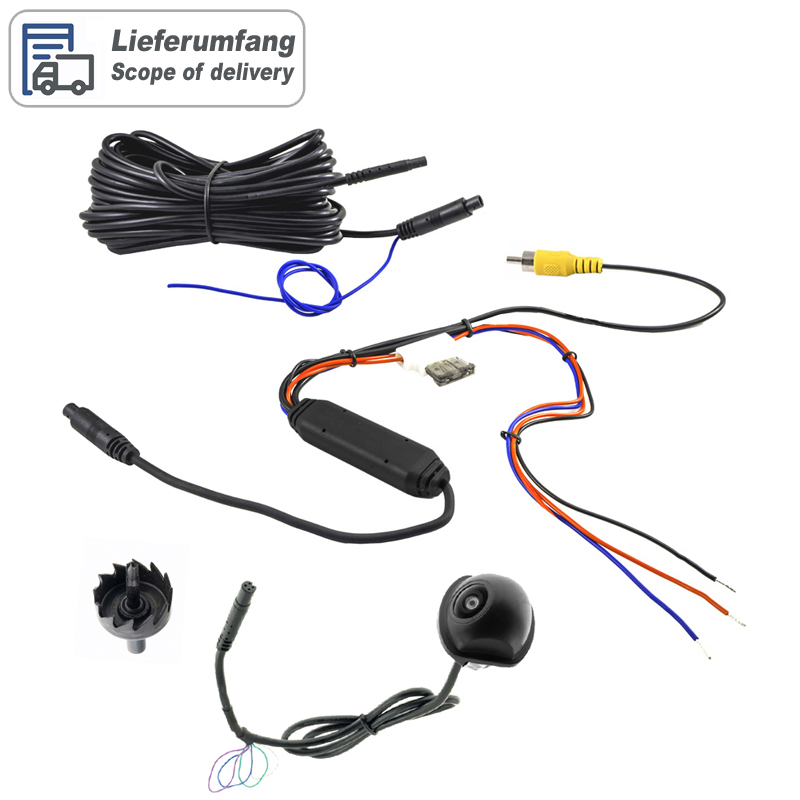

SCOPE OF DELIVERY
- Built-in camera EK-KCX401
- 8-meter extension cable AK1033
- Power supply AK1035
- Instruction manual
- 21-mm drill bit
TECHNICAL DATA
- 2 different guide lines: factory-deactivated (can be activated)
- Matte black plastic housing with Stainless steel mount
- Image display mirrored (adjustable)
- Image display rotated 180° (adjustable)
- Image sensor type: 1/4'' 1233 HD Color CMOS Low Light Sensor
- Video signal: NTSC at 60 frames/second
- Pixel resolution: 960x480V
- DIN protection class: IP69K
- Resolution: 800 TV lines
- Exposure: 1/50-60~1/15000 seconds
- Signal-to-noise ratio: >46dB
- Dynamic range: >74dB
- Light sensitivity: < 0.01 Lux/F1.2
- Output signal 1.0Vp-p, 75 OHM
- Automatic white balance
- Automatic video level adjustment
- Operating voltage 12/24 Volt DC
- Power consumption 25-55mA
- Diagonal viewing angle 140°
- Horizontal viewing angle 106°
- Vertical viewing angle 78°
- Camera dimensions 25.8x28.2mm and 20.8mm high
- 21mm mounting hole
- Operating temperature -40°C to +75°C
- Storage temperature -60°C to 105°C
- E certified
APPROVALS
CE Directive of 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
FCC Part 15B Report No. STR12058092E-3
IMPORTANT INSTALLATION INSTRUCTIONS
The camera head is waterproof according to DIN protection class IP69K and does not require additional sealing during installation. The camera lens is made of glass and is fragile. All metal parts are made of stainless steel. Stainless steel does not rust because it has a protective chromium oxide layer. However, this layer can be damaged or degraded under certain conditions, which can lead to the formation of rust.
| quantity: | 1 piece |
| Blickwinkel, diagonal: | 140° |
| Perspective, horizontal: | 106° |
| Perspective, vertical: | 78° |
| Product group: | Camera |
