Zenec ZE-RCE3703AHD - Rear view camera for Fiat Ducato

Zenec ZE-RCE3703AHD

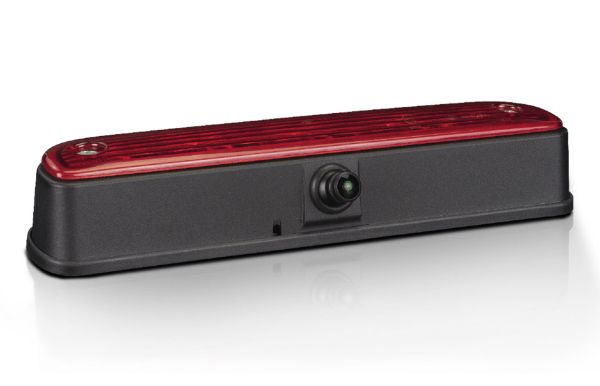

The ZENEC ZE-RCE3703AHD rear view camera was developed for use with FIAT Ducato III-based vehicles. This product utilizes high-quality components and materials to guarantee longevity and reliable operation in compatible target vehicles.
ZENEC's AHD ("Analog High Definition") camera models offer enhanced image quality thanks to the newer analog image transmission standard. AHD offers a higher signal transmission bandwidth with an optimized color space and, due to the analog transmission, is less susceptible to interference and more cost-effective than digital systems. In practice, AHD camera models therefore have a clear advantage due to their visibly sharper, more natural images.
The special technical feature of the ZE-RCE3703AHD is the output signal, which can be selected using the green
function cable. The camera delivers a 720p AHD or CVBS video signal via the RCA output, allowing both conventional and newer, AHD-capable control units to be combined with this camera model. The vertically pivoting sensor module allows for easy manual adjustment of the desired image section. The large diagonal viewing angle of 160° ensures a good overview of the area behind the vehicle, ensuring safe reversing and maneuvering at all times. The 15 m long main system cable of the ZE-RCE3703AHD is equipped with mini 4-pin connectors. MAIN FEATURES

• AHD rear view camera for FIAT Ducato III vehicles and identical vehicle types for use with selected ZENEC device models and infotainers from other brands that support AHD video signals at 720p/1080p. Video scaler with selectable AHD or CVBS video output signal. System design with integration of the original brake light (ABE/vehicle approval remains valid). High-quality CMOS image sensor with AHD 720p output signal and low power consumption. Mechanically adjustable camera angle for individual vertical adjustment of the field of view. Injection-molded plastic housing with stainless steel mounting bolts. 15 m long, detachable system cable with mini 4-pin connectors. Protection class: IP69K certified.

TECHNICAL SPECIFICATIONS

• Image sensor: 1/4" / 6.09 mm SONY IMX225LQR CMOS sensor
• TV system: NTSC
• Viewing angle: 160°(D) x 130°(H) x 100°(V)
• Native sensor resolution: 1280 (H) x 960 (V) pixels
• Video signal resolution: 1280 (H) x 720 (V) pixels
• Refresh rate: 30 fields/sec.
• Lens focal length: f/1.2
• Light sensitivity: 0.5 lux / 50 IRE
• Image-to-noise ratio: >48 dB
• Video Output: 1.0 Vp-p (±0.2 V) 75 Ohm, CVBS
• White balance: automatic
• Exposure compensation: automatic
• Gamma correction: 0.45
• Gain control (AGC): automatic
• Synchronization: automatic
• Power supply: 5.0 – 24 V DC
• Power consumption: 70 mA @12 VDC, ≤ 840 mW
• Protection class: IP69K
• Operating temperature: -30° C ~ +75° C
• Dimensions (L x W x H): 278 x 35 x 62 mm

VEHICLE COMPATIBILITY LIST
Model Model Type Model Year

• Fiat Ducato III 250 2006 – 2021
• Fiat Ducato III Series 8 / 9 2021 – 2024
• Fiat Ducato III Series 2 from 2024
• Citroën Jumper II 250 2006 – 2024
• Citroën Jumper II Series 2 from 2024
• Peugeot Boxer II 250 2006 – 2024
• Peugeot Boxer II Series 2 from 2024
• Opel Movano C 250 2021 – 2024
• Opel Movano C Series 2 from 2024
• Toyota Proace Max from 2024
