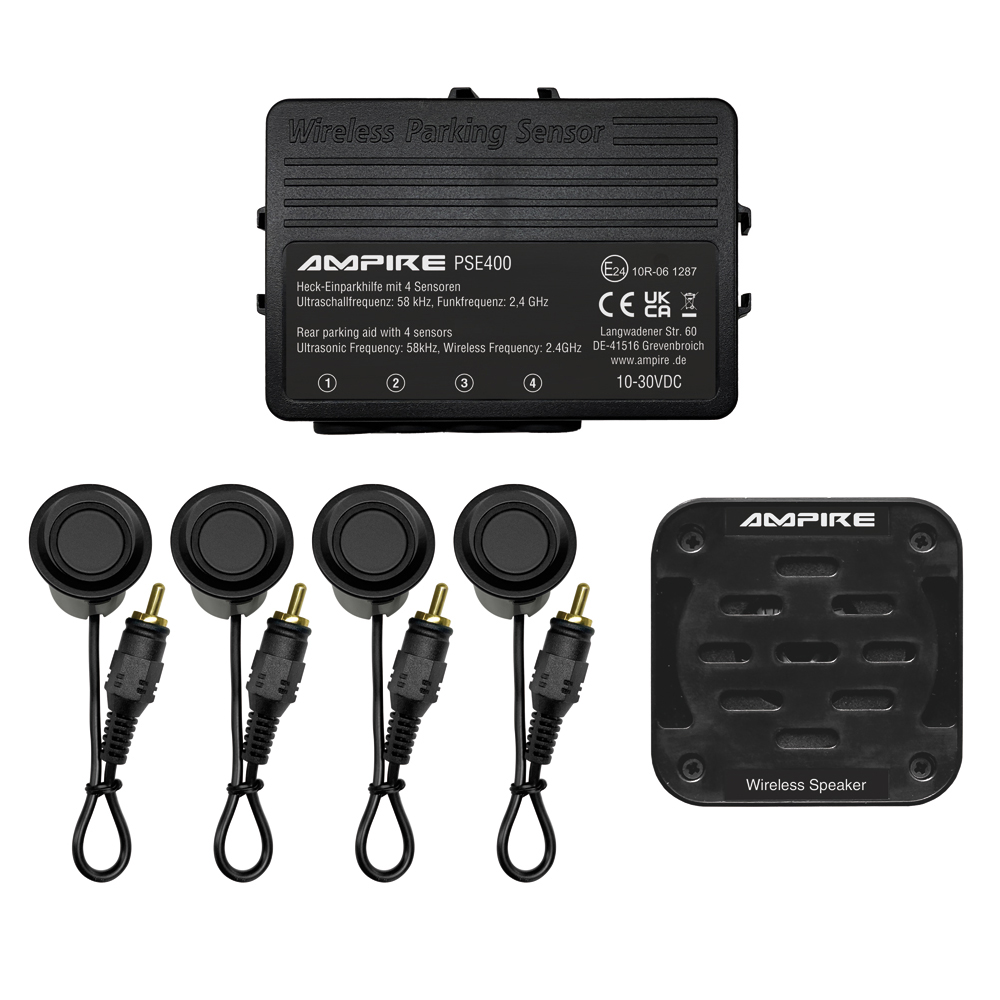

AMPIRE PSE400 - Parking aid for rear bumper, matt black, flush mounting

AMPIRE PSE400 - Parking Aid for Rear Bumper, Matte Black, Flush Mounting

You've finally found a parking space. You don't want to hold up the following traffic any longer than necessary, and the parking space isn't that big. Now you need to act quickly but with foresight. Because a small moment of inattention can have fatal consequences. A minor parking bump can quickly result in costs of €500 or more.
Like a passenger who guides you with a keen eye, the AMPIRE parking aid helps you with this small challenge – only much faster and more reliably. The system activates automatically when reversing and allows you to continuously monitor the area behind you. You'll receive an acoustic warning of obstacles in good time, thus protecting you from personal injury and property damage – and parking becomes child's play. The sensors are almost flush with the bumper.

Variant

• Installation location: Rear bumper
• Activation: via 12 volts from the reversing light
• Installation type: inserted into the mounting hole from the front

Your benefits at a glance

• Comprehensive monitoring of the rear area
• Timely warning of obstacles
• Prevention of personal injury and property damage
• Easy parking in tight spaces
• Self-diagnosis function
• Acoustic warning
• Automatic activation when reversing

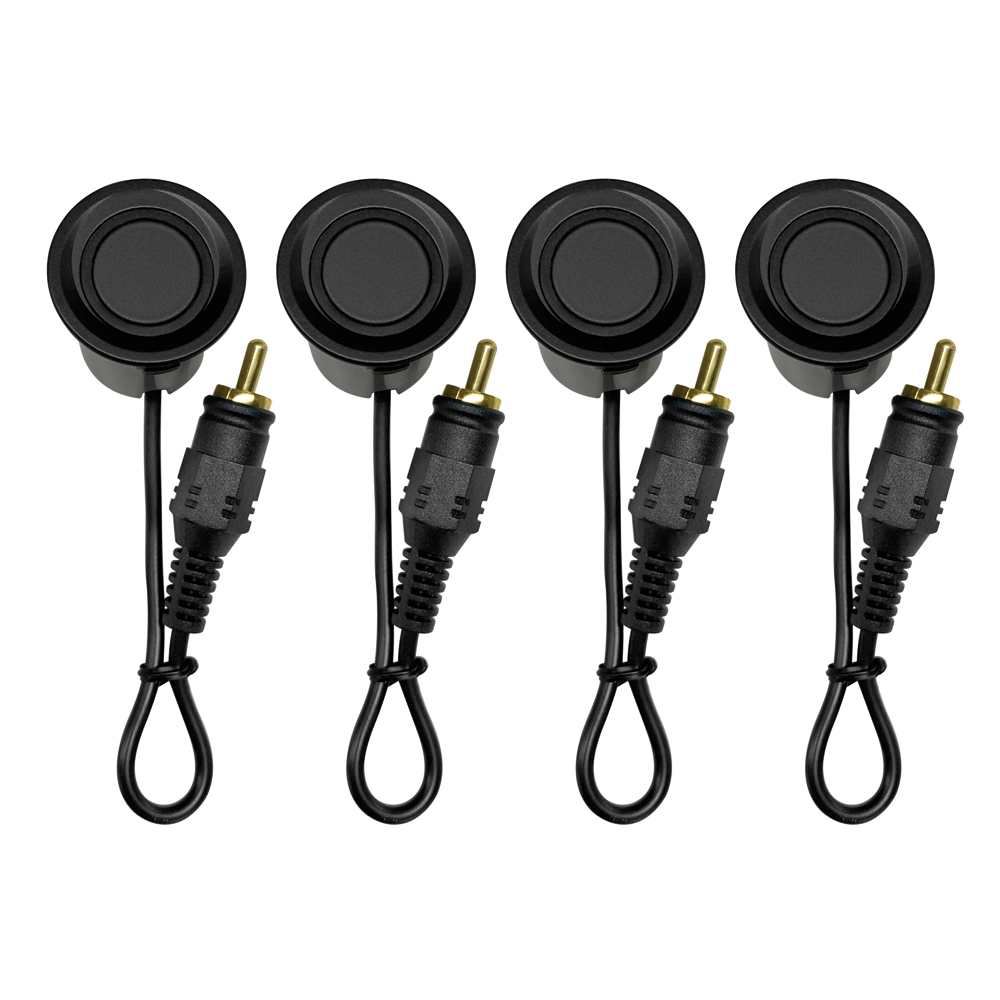

• 4 matte black ultrasonic sensors for front bumper mounting
• 22mm hole 24mm installation depth
• Range adjustable between 30cm to 100cm and 30cm to 260cm
• Range (factory setting) from 160cm to 30cm
• Simple installation thanks to plug-in connections
• Wireless connection between the control unit and the loudspeaker, maximum range 12m
• E-type approval E24 10R-06 1287

Technical specifications

• Ultrasonic frequency: 58kHz
• Radio frequency between control unit and loudspeaker: 2.4GHz
• Temperature range: -40°C to +80°C
• Operating voltage: 10-30VDC
• Control unit current consumption (max): 55mA
• Speaker current consumption (max): 80mA
• ACC current consumption off: 0mA
• Sensor cable lengths: 235cm

Ranges

• Level 1: 30-100cm
• Level 2: 30-130cm
• Level 3: 30-160cm (factory setting)
• Level 4: 30-210cm
• Level 5: 30-260cm

Total weight: 485g

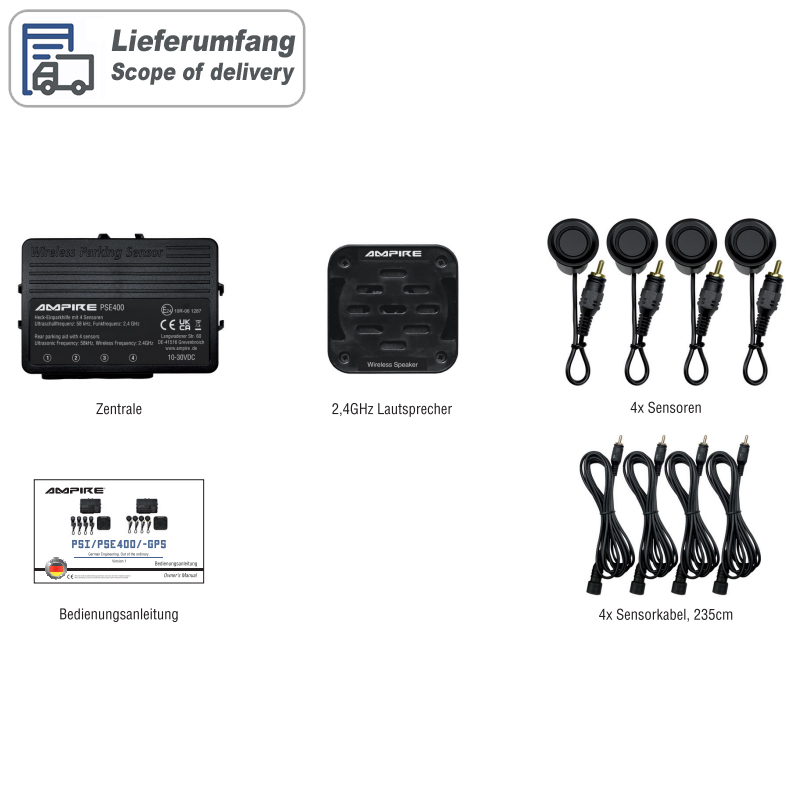

Included in delivery Included:

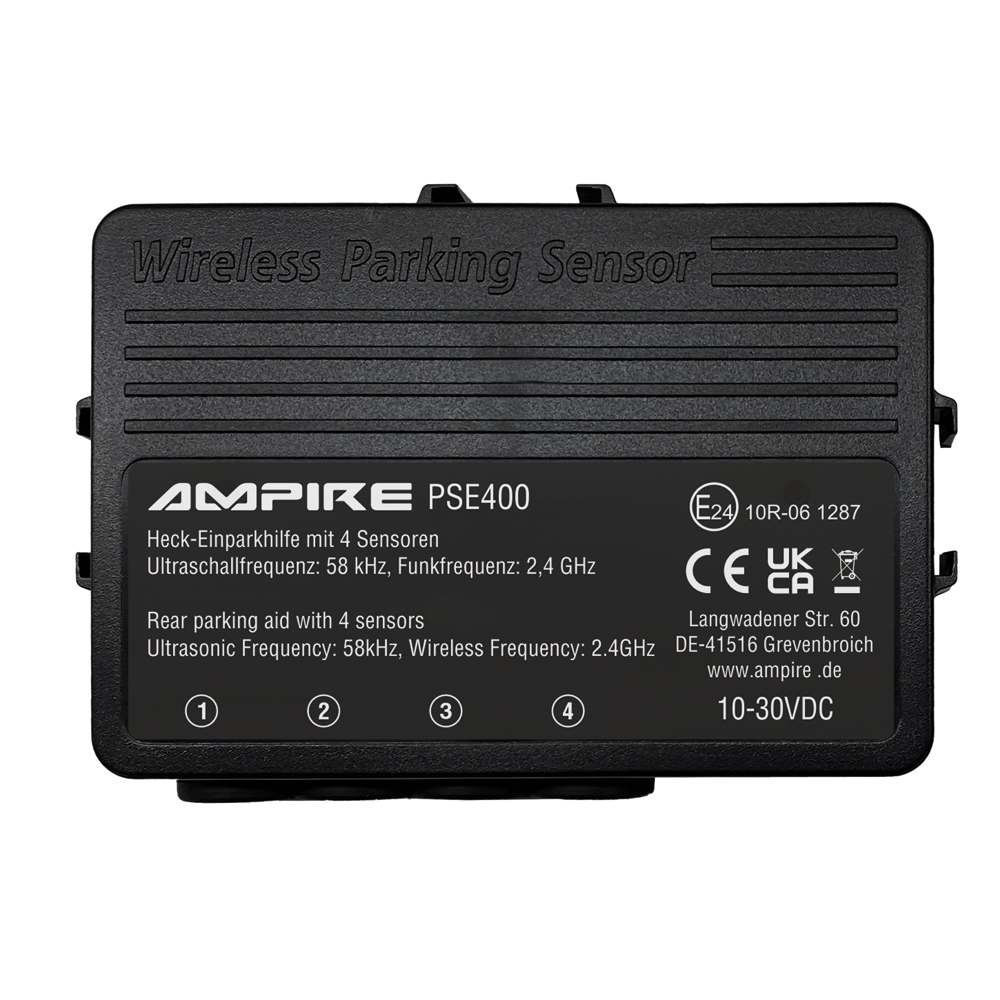

• Central unit

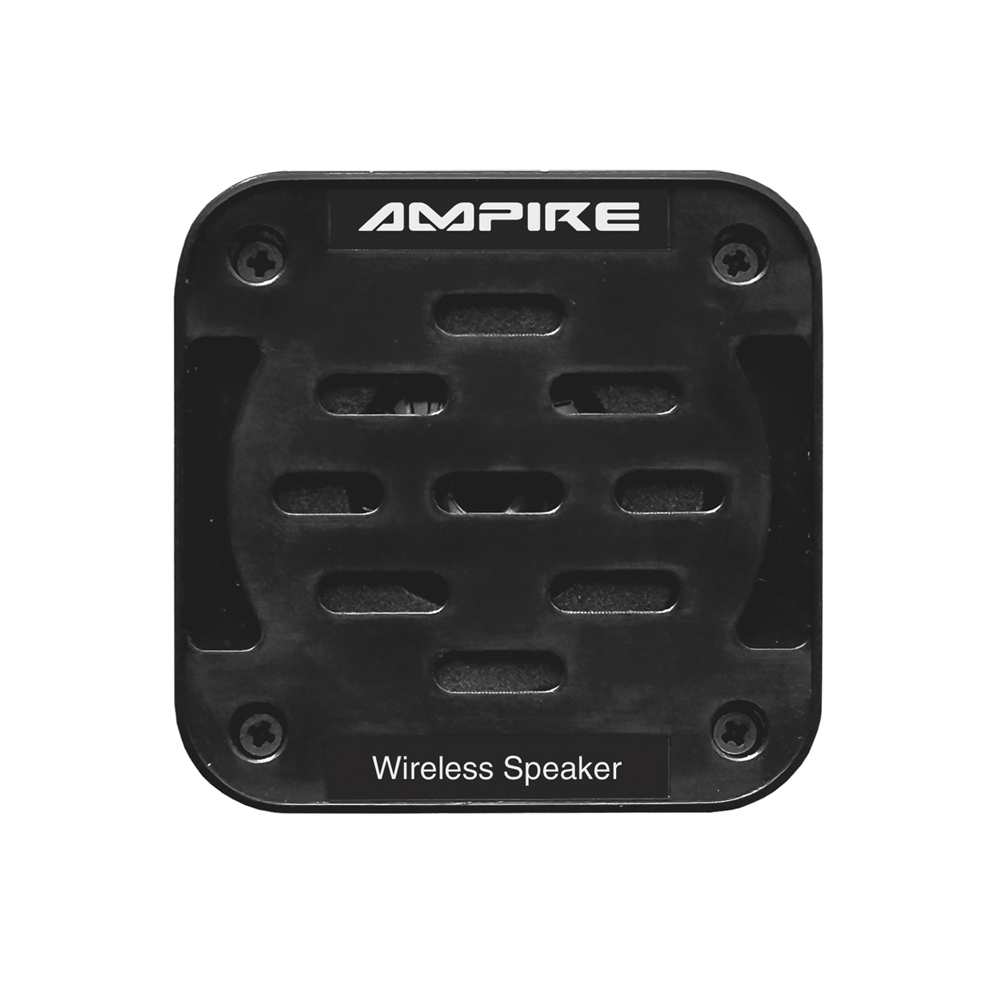

• Speaker
• 4 x sensors
• 4 x sensor cables (235 cm)
• User manual
