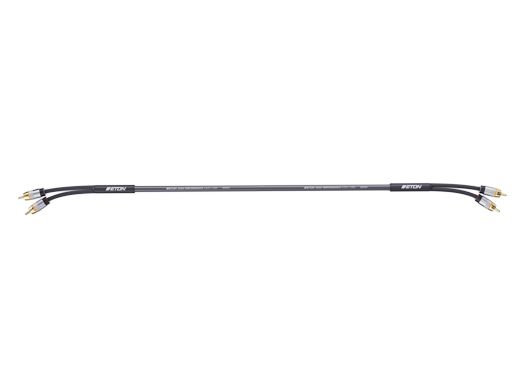

Eton RCA2U-075 - 2-channel high end RCA cable 0.75m

Eton RCA2U-075

High-end RCA cable (2-channel), 0.75 m long, 2 male to 2 male, RCA to RCA audio cable, ideal for car amplifiers/head units.

The RCA 2U-075 from the ETON Ultimate series is a high-quality, balanced, 2-channel RCA cable with flow direction for wiring radios/head units and amplifiers. The twisted inner conductors of this high-end RCA cable are made of fine-stranded, high-purity, 100% oxygen-free OFC solid copper (20/0.12 mm), ensuring optimal signal transmission. The RCA 2U-075 therefore ensures distortion-free, unadulterated audio reproduction across the entire frequency range.

In addition to the shielding created by the tight twist, the RCA 2U-075 features a sheath shield made of aluminum Mylar foil and an additional shield made of 100% oxygen-free OFC copper braid. This shielding effectively minimizes electromagnetic interference from on-board electronics or signal degradation. The specially developed short aluminum connector housing is soldered to the cable and ensures maximum transmission quality.

The 24-carat gold-plated RCA contact pins offer permanent oxidation and corrosion protection and, thanks to their low contact resistance (low capacitance), enable lossless signal transmission. The contact pins are slotted and spread open when connected – just like the diagonally slotted outer conductor ring – thus ensuring a secure connection. Equipped with a non-slip knurled profile and a minimum diameter of 20.5 mm, the connectors can be inserted easily and flexibly.

The heavy-duty, translucent PVC outer jacket offers effective protection against moisture and mechanical stress. Thanks to the special coating, the cable is easy to pull and therefore uncomplicated to install in the vehicle. Y-shaped slickpants on the cable ends provide additional protection: Made of high-quality silicone, the end sleeves are very flexible, durable, temperature-resistant, and therefore particularly durable.

The RCA 2U-075 is marked with directional arrows that indicate the optimal signal flow direction. To prevent incorrect connection, the connectors are color-coded (red/white) for left/right.

Included are plastic rings that can be used to individually assign additional color markings. The RCA 2U-075 is engineered in Germany and certified for the automotive sector.

Main Features of the RCA 2U-075

• Twisted inner conductors made of fine-stranded, 100% oxygen-free OFC solid copper (20 / 0.12 mm)
• Multiple shielding through twisting, 100% oxygen-free OFC copper braid, aluminum Mylar jacket shield, and signal source-side ground connection
• Soldered connectors
• Short aluminum connector housing with non-slip knurling
• 24-carat gold-plated slotted center pin inner conductor and diagonally slotted outer conductor ring
• Heavy-duty translucent PVC jacket with special coating, Y-slick pants on the Cable ends
• Marked signal flow direction
• Fixed color marking (red/white) for easy left/right identification, freely selectable color marking using plastic rings

Scope of delivery

• 1 x 2-channel high-end RCA cable, 0.75 m long, 2 male to 2 male
• 2 x plastic rings, orange
