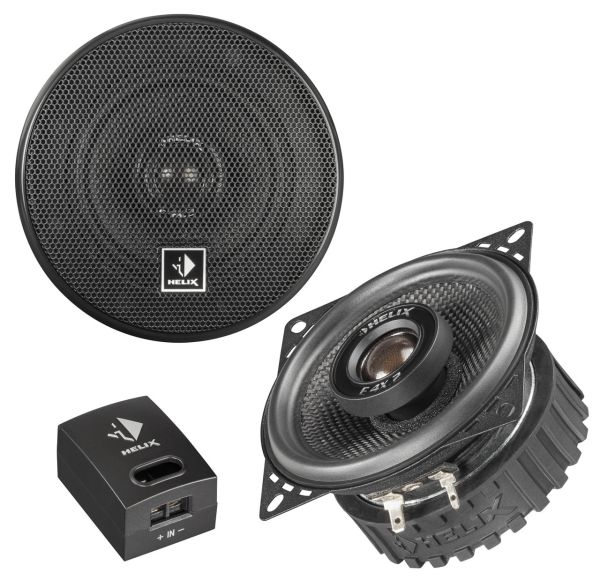

Helix E 4X-2 - 10cm 2-way coaxial system

HELIX E 4X.2

Once again, the new E loudspeaker systems (formerly known as "ESPRIT") make a statement with their unique sound characteristics.

Intelligent designs paired with select materials guarantee a unique listening experience and maximum reliability. The woofers in this series are equipped with a woven fiberglass diaphragm. The woven structure provides the necessary diaphragm stability while simultaneously offering high internal damping and thus immunity to resonances. The result: powerful and clean bass. The torsionally rigid chassis with additional ventilation openings ensures optimal heat dissipation and therefore high power handling. The use of butyl surrounds further enhances the sonic characteristics – and also benefits longevity!

Sophisticated crossover tuning ensures precise frequency band separation. This results in a balanced frequency response and unprecedented sonic harmony. The tweeters have also been revamped. Significantly refined high-frequency resolution ensures brilliant and extremely detailed high-frequency reproduction. The overall package is rounded off by the understated design, which underscores the high-end aspirations of this series. Features 100 mm woofer with a particularly rigid and low-resonance diaphragm made of woven fiberglass Specially shaped butyl surround for a larger effective diaphragm area and extended maximum excursion 19 mm tweeter with silk dome and neodymium magnet for brilliant, velvety-smooth high-frequency reproduction Custom HELIX-designed basket with additional ventilation openings for optimized voice coil cooling and high power handling Separate inline crossover with integrated tweeter protection Grille included Included

Technical Specifications

• Power RMS / Max. 40 / 120 Watts
• Frequency Range 80 Hz - 22,000 Hz
• Impedance 4 Ω
• Sensitivity 1 W / 1 m 89 dB
• Tweeter Cone Material: Silk Dome
• Midrange: -
• Woofer: Woven Fiberglass

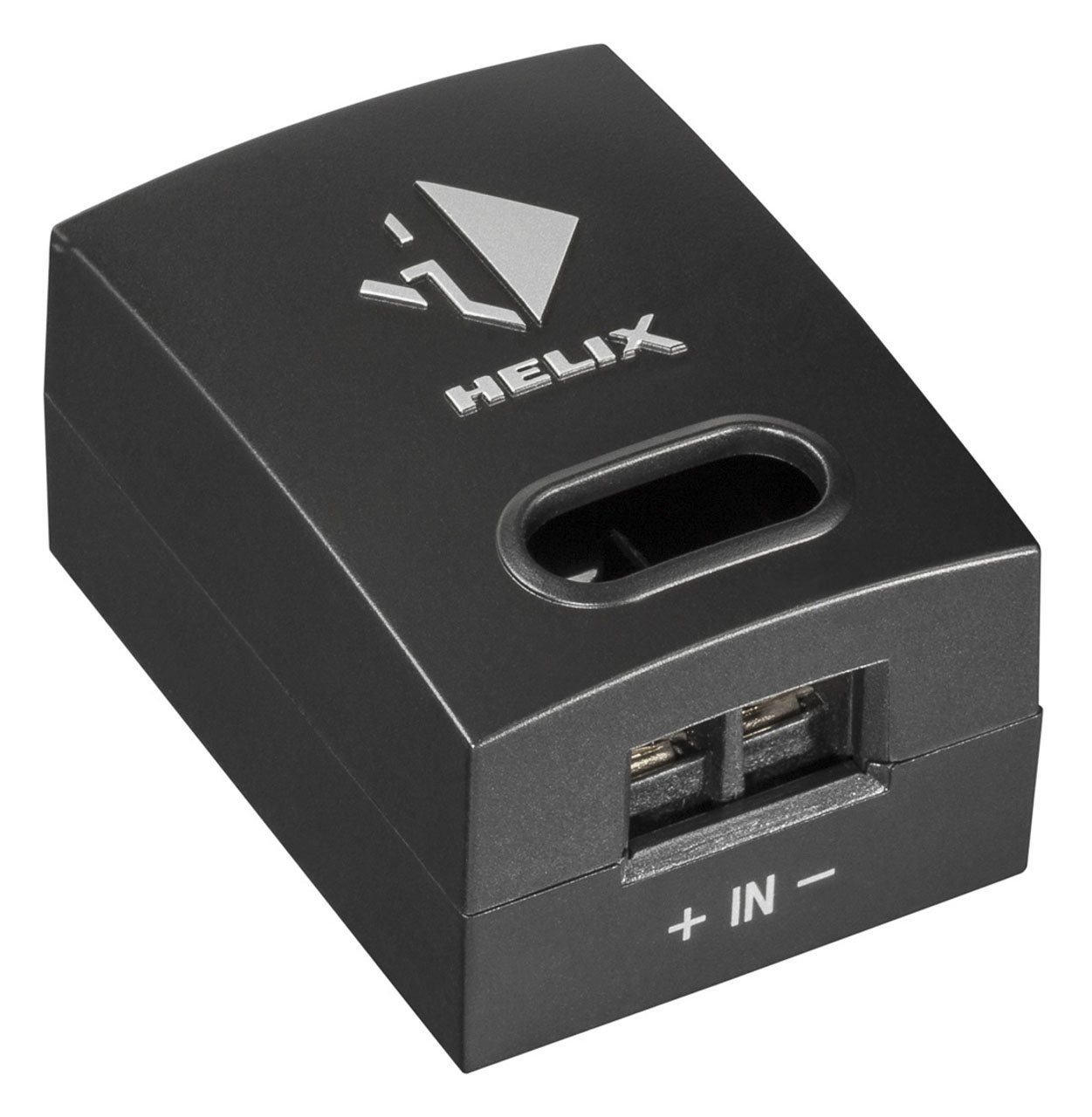

• Crossover: Separate inline crossover with 6 dB slope
• Slope and integrated tweeter protection
• Outer Diameter 102.5 mm
• Mounting Diameter 101.5 mm
• Mounting Depth 48 mm

Scope of Delivery

• 2 x HELIX E 4X.2 Coaxial Speakers
• 2 x Crossovers
• 2 x Speaker Cables
• 1 x Mounting Hardware
• 1 x User Manual
• 1 x Mounting Template
