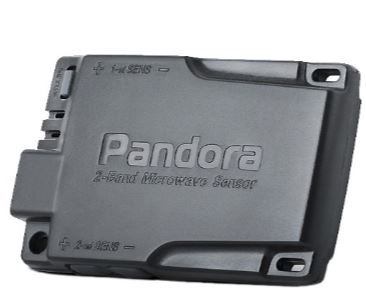

Pandora VS-23D - 2-Zone Radar Sensor

Product information "2-zone radar sensor"

The digital Pandora VS-22D 2-zone radar sensor is a useful extension of the security features of a Pandora alarm system. This sensor detects movements in the passenger compartment and triggers the pre-alarm or alarm. The detection area can be set up to 3 meters in radius. The radar sensor is concealed, e.g. B. under the trim on the gear lever or in the headliner at the interior light. Both zones can be set separately and matched to the vehicle. The outer zone only triggers the pre-warning of the alarm system. If the inner zone detects movement, this activates the full alarm. Since the Pandora alarm systems mostly communicate with other components or mobile phones via radio technology, this sensor is extremely false alarm-proof at frequencies that do not generate the radar field.

Two outputs are available, which switch a mass of 100 mA when triggered.

• Dimensions: 71.5 x 42 x 11.5 mm
• Quiescent current: 1.8 mA
• Ambient temperature: -40 °… + 85 ° C

Delivery includes: 4-pin connection cable (3 meters), sensor and German instructions
