Pandora Smart V4 - Alarm System

Pandora Smart V4

Pandora alarm systems are only sold including installation through an authorized dealer. The price quoted includes installation and may vary depending on additional options. Ask your dealer for a customized quote for your vehicle and desired feature set.

The new Pandora Smart v4 combines monitoring, control, and security for your vehicle. The alarm system is equipped with the latest LTE/4G technology and a Bluetooth modem for smartphone integration. Simply add your alarm system to the app and monitor multiple vehicles with a single login. Thanks to the built-in LTE/4G modem, the system can make calls, receive commands via the phone keypad, and send telemetry data to any internet-enabled device. The connection between the mobile phone and the alarm system is established via Bluetooth in close range. As soon as you move away, the system switches to the internet. This keeps you informed and connected to your vehicle at all times. The system features a location and tracking function. You're not only informed about the current status, but also know where something is happening.

The Pandora Smart Alarm System includes numerous security and convenience features. You can access the extensive functions via vehicle remote control, Bluetooth transponder, smartphone app, and web browser. The system features a 2xCAN interface, auxiliary heater connection (LIN/W-BUS), and freely programmable inputs/outputs to customize the system to your needs. The GPRS data connection expands the range within which you can control the system and receive notifications about alarms and status messages within the network coverage area.

A security mode continuously monitors the connection between the alarm system and the server. If this connection is interrupted, for example, if the signal is jammed, you will receive a notification on your smartphone.

Bluetooth 5.0

You can control your system via Bluetooth application (without a GPRS connection). The encrypted Bluetooth protocol allows you to program additional modules. For example, a comfort relay, an engine compartment module that minimizes wiring, or the 3D wireless sensor (DMS-100BT). The system can be configured at close range using the app.

The integrated 4G/LTE interface

The data connection extends network coverage compared to a standard GSM system and controls the system via the cellular network. You also receive important alarm and service notifications in real time. You can keep an eye on your car anytime, anywhere.

Security features

The alarm system has 11 security zones that operate independently of each other. An internal 3D sensor reacts to impacts/shocks against the vehicle. The 3D technology also monitors the vehicle's inclination and rolling motion. Doors, hood, ignition, and tailgate are evaluated either analogically or via CAN bus, depending on the vehicle. The system can also be expanded with additional alarm sensors (e.g., ultrasound/radar). When disarming, the system searches for paired transponders or the vehicle owner's cell phone. If none is present, the system triggers the alarm, assuming tampering with the radio signal or the door lock. This function prevents disarming with a copied radio code or with an extended keyless signal. This function can be enabled or disabled depending on the needs and vehicle equipment. An immobilizer that operates independently of the original vehicle's WFS makes it more difficult for thieves to start the vehicle.

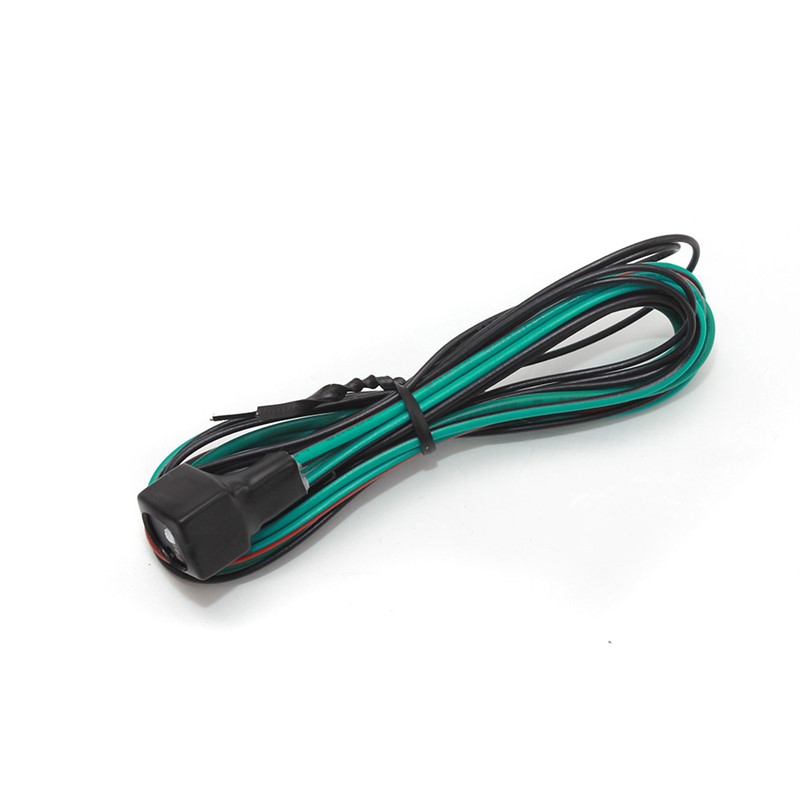

Immobilizer bypass with clone technology

The Immo-Key-Port and the Pandora clone service enable the implementation of an algorithmic bypass of the factory immobilizer. This enables remote engine starting via an app in many vehicles without requiring the vehicle key to remain in the vehicle. The remote start function is not permitted under the German Road Traffic Licensing Regulations (StVZO) and is not implemented for vehicles in public traffic.

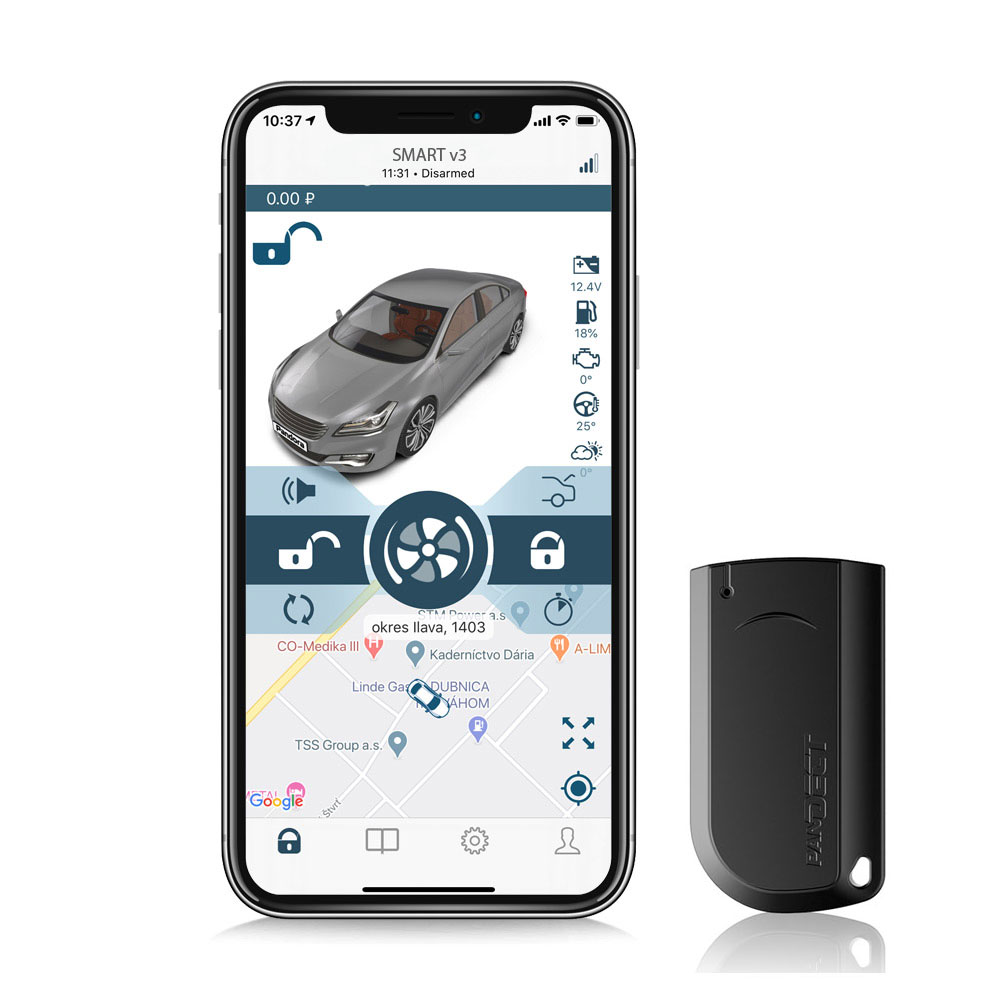

Pandora Pro App

The new Android and iOS apps provide detailed service information and an event history. It allows you to change system settings and control the system's main functions. Arming/disarming, checking the fuel level, auxiliary heating, and switching on the lights are just some of the possible functions of the Pandora alarm system. The app's Bluetooth function transforms your phone into a wireless transponder to implement the hands-free function and serve as an access authorization.

Bluetooth Transponder

Every Pandora alarm system includes small, flat Bluetooth transponders. Optionally, you can use the transponder's button to arm/disarm the alarm system. The Bluetooth interface enables a reliable hands-free function with an adjustable range. This means you can disarm the system and open the central locking system simply by walking up to your vehicle - without pressing a button!

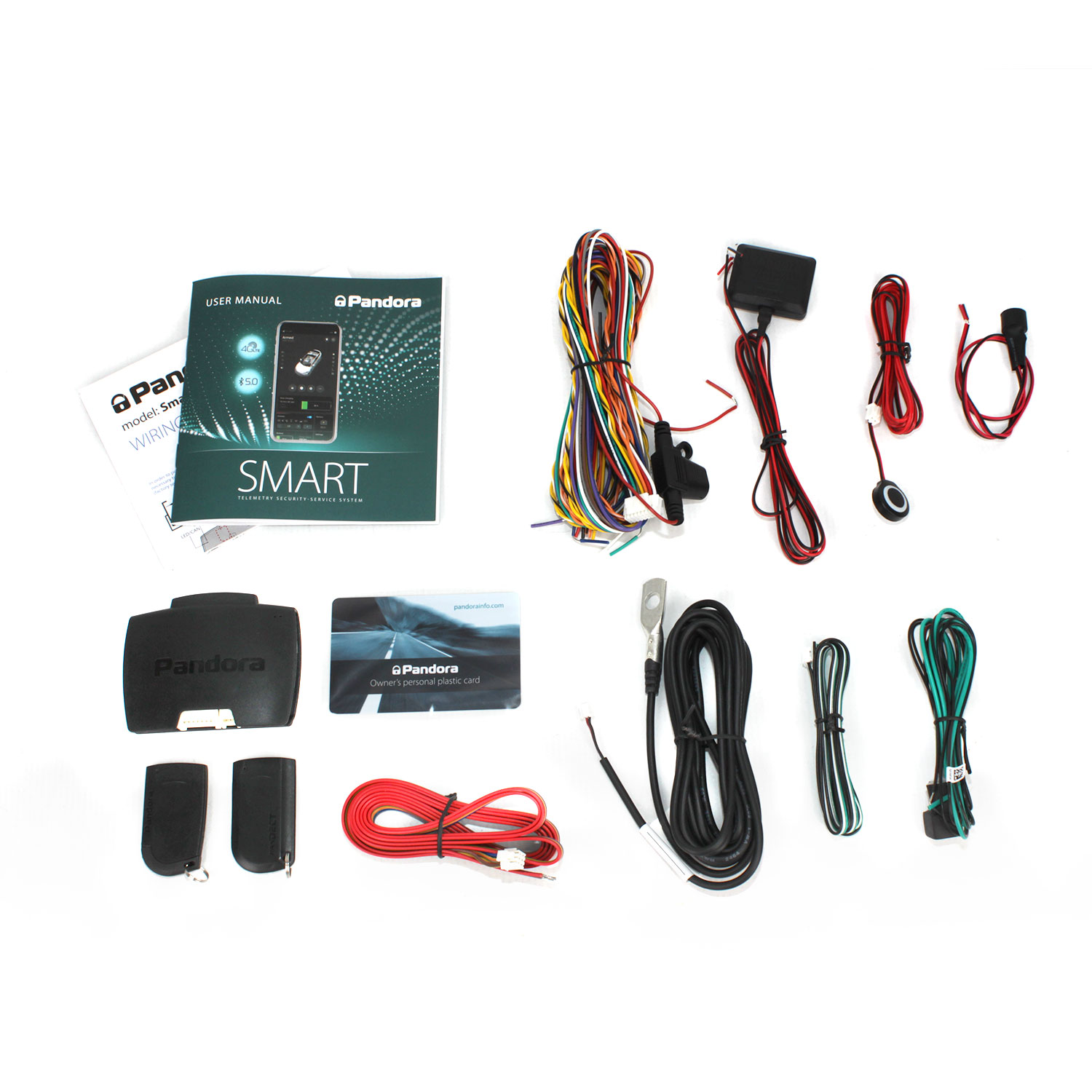

Scope of delivery

Alarm system control unit, code card, 2 Bluetooth transponders (BT765 + BT775), engine compartment temperature sensor, siren (AS330), cable set, instructions, breaker relay
