ctek MXS 5.0T Ladegerät 12V

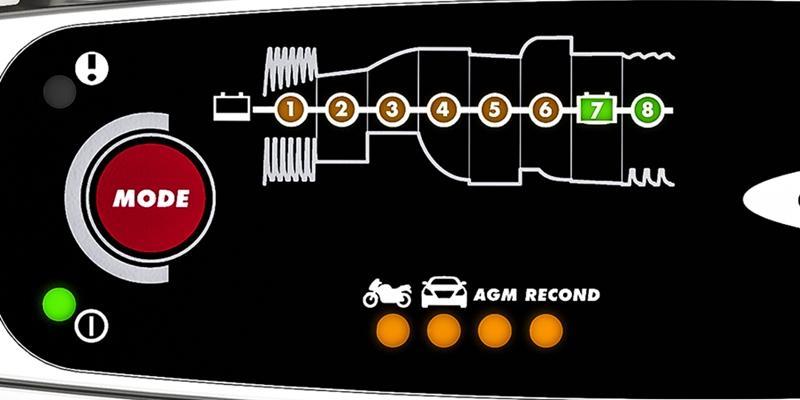

The MXS 5.0 is a charger that offers state of the art technology that was previously only found in CTEK?s professional product range. The charger can solve a broad range of battery-related problems and is the perfect charger for those with high demands. The MXS 5.0 offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging, a mode for optimised charging during cold winter days and the charging of demanding AGM batteries (i.e. Optima). The unique display allows the user to follow the entire charging process.

The MXS 5.0 is a fully automatic 8-step charger that delivers selectable 0.8A or 5A to 12V batteries from 1,2-110Ah and is suitable for maintenance charging up to 160Ah. The charger is IP 65 classified (splash and dust proof), designed to protect vehicle electronics and non-sparking, reverse polarity protected and short-circuit proof. It is delivered with a 5-year warranty.



Model	MXS 5.0
Input voltage	220-240VAC, 50-60Hz
Output voltage	14.4V, 14.7V, 15.8V
Charging current	5A
Ripple	<4%
Ambient Temperature	-20°C to +50°C, output power is reduced automatically at higher temperatures.
Cooling
Charger Type	Eight step, fully automatic charging cycle.
Batteries	12V lead-acid batteries (Wet, MF, AGM, Calcium/Calcium and GEL)
Battery size	1.2-110Ah up to 160Ah for maintenance
Dimensions (L x W x H)	168x65x38mm
Insulation	IP 65
Weight	0.6kg
