Wallbox Commander 2 Typ 1/2 - Ladestation bis 22kW

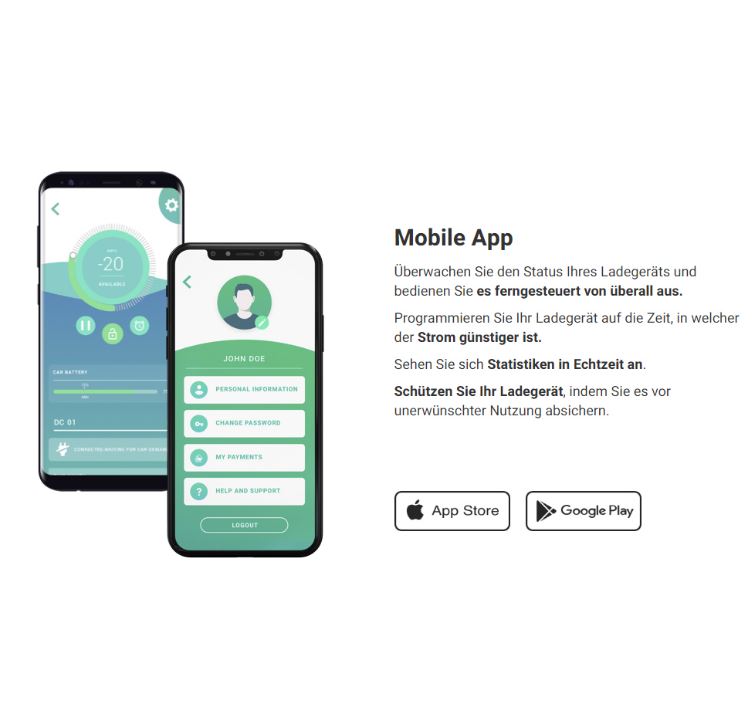

Specially designed for semi-public or company parking zones. Commander 2 is equipped with a 7-inch touchscreen, which allows the power setting via the screen. The charging station communicates with the portal or the MyWallbox app via WiFi, Ethernet or Bluetooth. Commander 2 is available with a maximum power of 22 kW for three-phase and 7.4 kW for single-phase installations and is supplied with an integrated Type 2 cable.

Technical specifications

• Connector: type 2 (type 1 on request)
• Cable length: 5m
• Maximum power: up to 22kW
• Maximum current: 32 A.
• DC protection: Yes
• Information on the charging status: Wallbox app, myWallbox portal, RGB LED
• User interface: myWallbox portal, Wallbox app
• Communication: WiFi, Ethernet, Bluetooth connection
• Features included: Power Sharing Smart
• Overvoltage category: CAT III
• Storage temperature: -40 ° C to 70 ° C
• RCCB: External residual current circuit breaker (RCCB) required
• Nominal frequency: 50 Hz / 60 Hz
• Degree of protection: IP54 / IK08
• Operating temperature: -25 ° C to 40 ° C
• Input voltage: 110/230 V AC 10% (1P) / 400 V AC 10% (3P)
• Dimensions: 221x152x115mm (without cable)
• Charging mode: mode 3

Important NOTE

If you are using Renault Zoe I (2015 edition), please note that this model is only compatible with this charging station for single-phase charging (up to 7.4 kW). The Renault Zoe II (2018 edition) ordered after March 19, 2018, is fully compatible with this charging station for single-phase and three-phase charging (up to 22 kW).

According to the technical connection rule, VDE-AR-N 4100, which is valid in Germany, you or your installer must register all charging stations with the network operator. The form required for this and our EU declaration of conformity can be printed out here. In addition, charging stations with an output of more than 12 kW must also be approved after registration.
