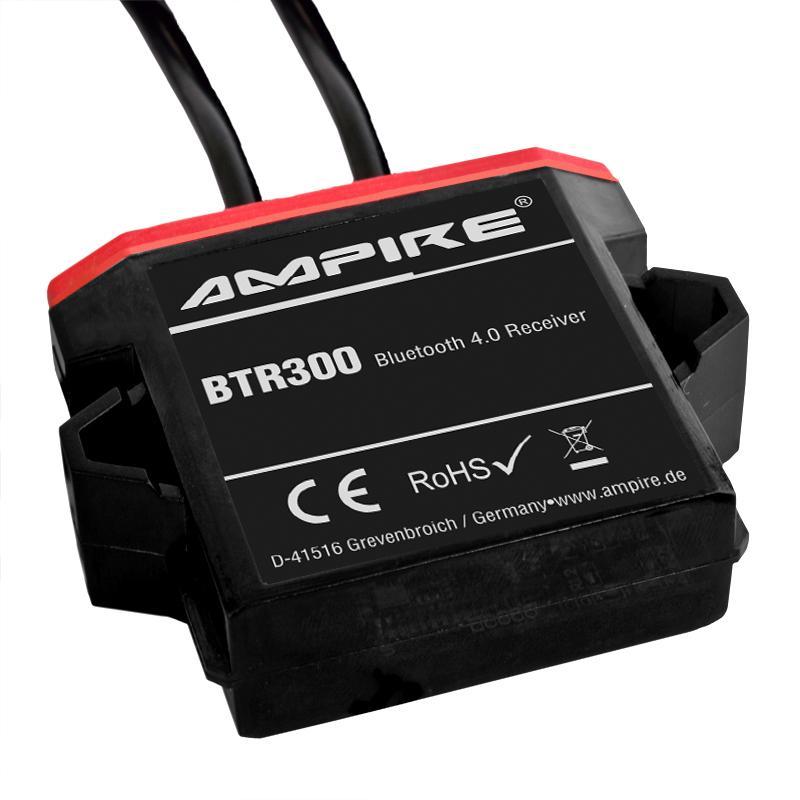

Ampire BTR300 - Bluetooth Receiver

This universal A2DP Bluetooth receiver was developed for vehicles and boats that have a 3.5mm jack and USB socket as an AUX input. You then only have to plug in both plugs for installation. The power supply is released via USB and music playback via the jack cable.

FURNISHING

• splash-proof, marine certified
• automatic activation
• QDL licensed Bluetooth 4.0 CRS I9chip
• A2DP in the highest EDR specification
• BT audio streaming also of lossless files such as wave, flac, lossless, etc.
• 3.5mm jack plug with signal output 1.0V
• SSID display name: BTR300

CONNECTIONS

• USB input (5 VDC power supply)
• 3.5mm jack plug output

TECHNICAL SPECIFICATIONS

• Voltage: 5 volts DC
• Current consumption: <45mA
• Bluetooth 4.0
• Frequency range: 20Hz-20kHz
• Coding: Low Complexity Subband Codec (SBC)
• Bit rate: up to 345 kBit / s.
• Output voltage: 1V RMS
• Cable length: 300mm

BLUETOOTH APPROVAL

• Declaration ID D025151
• Referenced Qualified Design ID 56386
• Listing Date 08 December 2014

TEACH DEVICE

• Make sure Bluetooth is turned on on your device.
• Switch on the ignition.
• The LED (6) flashes blue (pairing mode)
• To connect, select BTR300 in the Bluetooth menu of your device.
• After a successful connection, the LED lights up continuously and a single beep sounds via the audio system.

NOTE

• Several devices can be connected to the BTR300, but only one device can stream music at a time.
• The BTR300 always remembers the last learned device and connects automatically after being switched on. A connection to another device must be carried out manually as described above.
• If the connected device is out of range for more than a minute, the connection is automatically interrupted and the BTR300 goes into pairing mode [the LED (6) flashes].

SERVICE

• All settings such as volume, music selection and play / pause are made on your device.
• The BTR300 can be installed out of sight because it has no controls or buttons that need to be operated.
