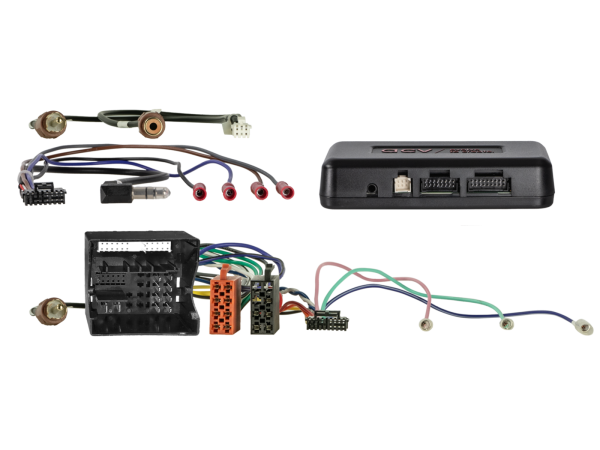

ACV i-dapter Skoda/VW vehicles 52Pin Quadlock Multilead

Skoda / VW info adapter

When replacing the original radio, the info adapter maintains the visual display of vehicle functions such as parking sensors, air conditioning, and seat heating.

The vehicle's steering wheel remote control function is also supported and is essential for configuring the adapter.

Please ensure that the original factory radios specified by us and the adapter connectors shown match the vehicle's equipment.

Please note that in some cases not all functions are supported, e.
g., Trailer Assist, E Call, or other driver assistance and comfort systems.

Check the vehicle menu for various settings before installation.

Check the function of the settings and the vehicle system before final assembly.

Note:

Connection: 52-pin Quadlock VAG connector
Connection: OEM steering wheel remote control > 3.5 mm jack / loose cable
Connection: OEM rear view camera > RCA (m) ochre

Vehicles with MIB-PQ OEM platform

Connection i-dapter:
purple/white: +12V reverse
signal RCA (m) ochre: rear view camera input retrofit device

Visualization i-adapter settings > Retrofit device rear view camera
input Visualization OPS > Retrofit device rear view camera
input Visualization Klimatronik > Retrofit device rear view camera input

Vehicles with steering wheel remote control Settings i-dapter:
Steering wheel remote control Press and hold Track
Alternatively with item: 43x-remote

Vehicles without steering wheel remote control Settings i-dapter Required accessories:
i-dapter accessories Remote control > Interface setting > Item: 43x-remote

Camera image or i-dapter settings and visualization not available:
Connection of an additional ground contact RCA outer conductor at the camera connection and device connection

Vehicles with parking assistance and front PDC > After starting the vehicle, the front PDC is displayed
. Exit the display > via vehicle PDC button

+12V reverse signal is switched off from 3 km/h

Depending on OEM vehicle equipment and software:
Not all vehicle settings are supported
Not all vehicle functions are supported
Not all vehicle information is visualized

Vehicles with E-Call:
E-Call maintenance MAN/Seat/Skoda/VW 52-pin Quadlock > Item: 1424-28

Vehicles without OEM sound system*

Not for vehicles with
: OEM MOST sound system
, radio
preparation, without any factory pre-installation > Steering wheel remote control / speakers / radio

Dip switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:

Skoda

• Skoda Yeti (5L) 10/2013 - 07/2017*

VW

• VW Beetle (16) 06/2016 - 03/2018*
• VW Caddy IV (DU) 06/2015 - 09/2020
• VW Jetta (16) 2015 - 2018
• VW Sharan II (7N) 07/2015 - 10/2021
• VW T6 (7HC) 07/2015 - 08/2019
• VW Tiguan II (5N) 05/2016 - 05/2021

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible with some functions.

Red: +12V ignition terminal 15
Orange: +12V lighting terminal 58
Purple/white: +12V reverse signal
Pink: Speed signal
Green: Ground GND Handbrake signal

Load capacity of outputs: 250 mA max.

Current requirement greater than 250 mA:
1 relay coil resistance 75 ohms min.
2 relay coil resistance 150 ohms min.

Steering wheel remote control

Visualization Klimatronik supported
Visualization optical PDC supported
CAR menu vehicle settings supported

*Skoda Yeti Active Sound OEM sound system
supported*VW Beetle Composition Media OEM device Dynaudio OEM sound system
supported*VW Beetle Fender OEM sound system not supported
