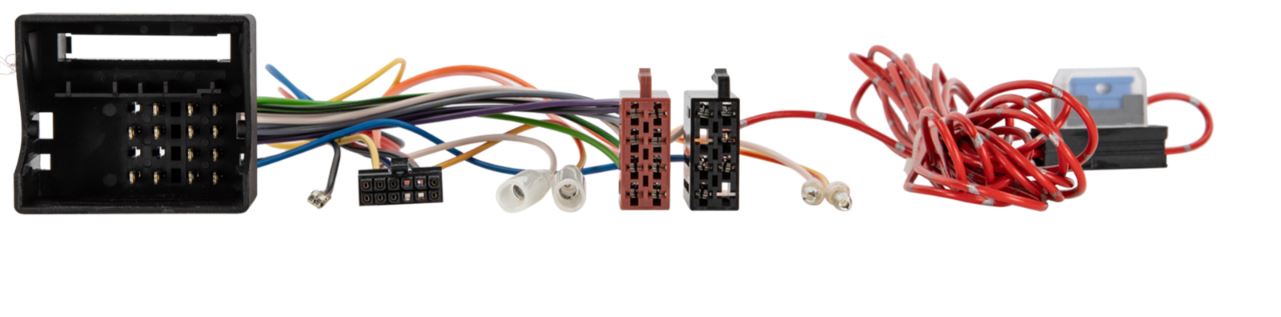

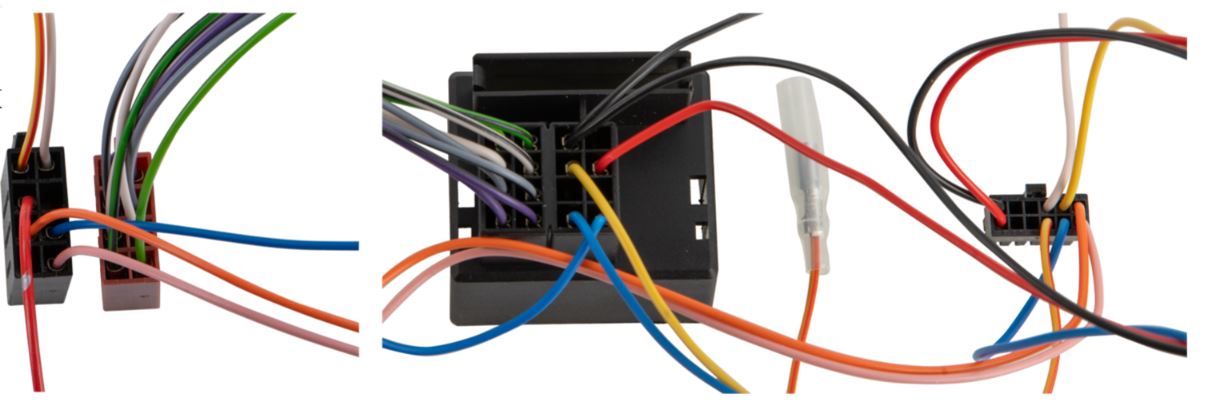

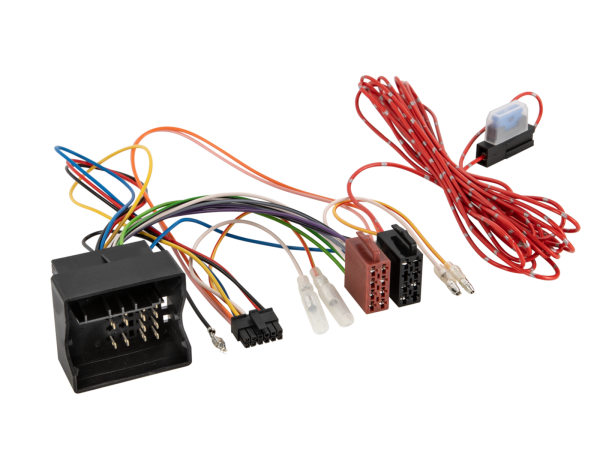

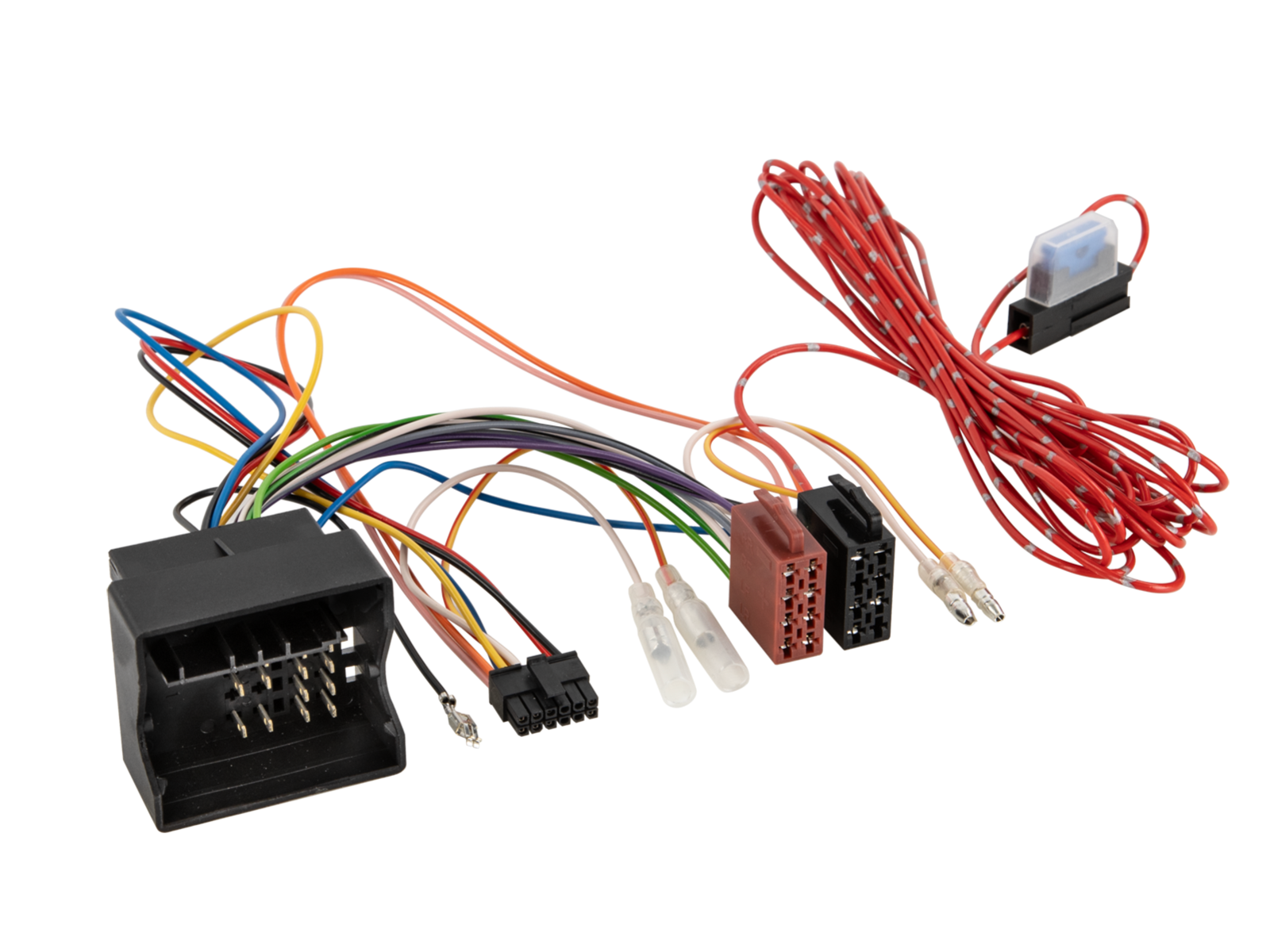

ACV Wiring Harness 42cx401/42cx402 for BMW/Mini

Vehicle-specific wiring harness for the acv CAN bus steering wheel remote control interfaces 42cx and the CAN bus interface can-uni 01.
It is part of the vehicle-specifically configured acv 42a-xxxx-xxx steering wheel remote control adapter and the 12-xxxx-xx-xx CAN bus kits consisting of interface and wiring harness.

Suitable for the following vehicles:
BMW
BMW 1 Series (E81/E82/E87/E88) 03/2004 - 10/2013*
BMW 3 Series (E90/E91/E92/E93) 03/2005 - 10/2013*
BMW 5 Series (E60/E61) 07/2003 - 07/2010
BMW 6 Series (E63/E64) 09/2004 - 11/2010
BMW 7 Series (E65/E66) 08/2001 - 11/2008
BMW Z4 (E89) 05/2009 - 08/2016
BMW X1 (E84) 10/2009 - 06/2015
BMW X6 (E71/E72) 05/2008 - 06/2014

Mini
Mini (R55/R56/R57/R58/R59) 11/2006 - 05/2015

Interface:
LFB various vehicles universal cx401 CAN Bus > Article: 42cx401
LFB various vehicles universal cx402 CAN Bus Axion/Kienzle > Article: 42cx402
LFB various vehicles universal cx403 CAN Bus Continental > Article: 42cx403
LFB various vehicles universal cx401 wiring harness/multilead > Item: 42-1000-001 I CAN-Bus adapter for various vehicles, universal wiring harness Item: can-uni 01 Connection cable for the following radio manufacturers: Multilead for various devices Item: 42arc100 Alpine 3.5mm jack connection Item: 42arc101 Blaupunkt 2010 3.5mm jack connection Item: 42arc107 Blaupunkt 2010 Key1 / Key2 / (GND) connection Item: 42arc000 China HU Key1 / Key2 / (GND) connection Article: 42arc000
Clarion 3.5mm jack connection > Article: 42arc104
Digital Dynamics single-cable connection > Article: 42arc108
ESX Key1 / Key2 connection > Article: 42arc000
JVC 3.5mm jack connection > Article: 42arc104
JVC single-cable connection > Article: 42arc105
Kenwood single-cable connection > Article: 42arc105
Kenwood 2017> 3.5mm jack connection > Item: 42arc107
Kenwood 2020> Key1 / Key2 / GND connection > Item: 42arc000
Pioneer 3.5mm jack connection > Item: 42arc107
Pioneer AVH/DMH/SPH 3.5mm jack connection > Item: 42arc1072
Snooper Key1 / Key2 connection > Item: 42arc000
Sony 3.5mm jack connection > Article: 42arc107
XZent single-cable connection > Article: 42arc108
Zenec single-cable connection > Article: 42arc108

Note:
Connector: 40-pin Quadlock BMW connector
Connector: +12V continuous current terminal 30, battery fused > Loose cable red
white: +12V reverse signal 1.5A max.
yellow/green yellow/red: speed signal
Vehicles with Business Professional OEM device
BMW vehicles without iDrive
BMW vehicles without OEM MOST sound system
BMW vehicles with OEM MOST sound system:
Active system adapter BMW MOST>Cinch> Item: 13-1024-51*
Vehicles with PDC:
LFB CAN bus loudspeaker 42a/42cx PDC> Item: 42cxpdc
