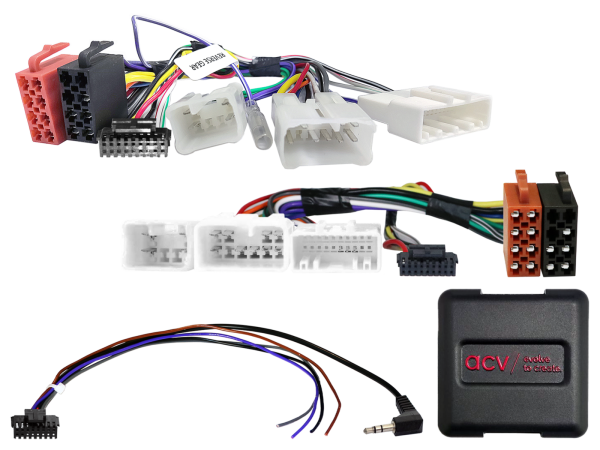

ACV LFB Lexus/Toyota vehicles 20Pin/28Pin Multilead analog - steering wheel remote control adapter

Steering wheel remote control adapter Lexus / Toyota

Retain the original steering wheel remote control functions when replacing the factory radio with an aftermarket radio.

Depending on the vehicle equipment, range of functions, and software of the retrofit device, individual control functions may be omitted or replaced by other functions.

Compare the adapter connectors shown with those in your vehicle and make sure that they are visually and technically compatible.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final installation, check the vehicle functions, vehicle settings, and steering wheel remote control for proper operation.

Note:

Analog

Connection: 10-pin / 6-pin / 20-pin Toyota plug
Connection: 10-pin / 6-pin / 28-pin Toyota plug
Connection: OEM steering wheel remote control > 3.5 mm jack / loose cable

Vehicles with Fujitsu Ten / Matsushita OEM
deviceVehicles with rear view camera*

Vehicles without 360° camera
system**Vehicles without JBL / JBL Synthesis / Mark Levinson OEM sound system

Vehicles with 18-pin LAN connector: Check the steering
wheel remote control on the 8-pin CN 800 connector
before connecting to the OEM device by measuring Pin 6: SWC
GNDPin 7: SWC 1Pin
8: SWC 2

Compatible with all vehicles from LFB Interface:

LFB Lexus/Toyota various vehicles 10-pin/6-pin/20-pin > Item:
42xty001LFB Toyota various vehicles 10-pin/6-pin/28-pin > Item: 42xty002

Dip switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:

Lexus

• Lexus IS (XE1) 10/2001 - 11/2005
• Lexus IS (XE2) 12/2005 - 11/2008
• Lexus IS Convertible (XE2) 07/2009 - 11/2010
• Lexus IS (XE2) 11/2008 - 11/2010
• Lexus IS Convertible (XE2) 11/2010 - 10/2013

Toyota

• Toyota 4Runner 2002 - 2009
• Toyota Auris (E150) 07/2007 - 03/2010
• Toyota Auris (E150) 03/2010 - 01/2013*
• Toyota Avanza 2003 - 2011
• Toyota Avensis (T25) 01/2003 - 06/2006
• Toyota Avensis (T25) 06/2006 - 01/2009
• Toyota Avensis (T27) 01/2009 - 12/2011
• Toyota Avensis (T27) 01/2012 - 06/2015*
• Toyota Camry 2007 - 2011
• Toyota Celica (T23) 10/1999 - 01/2006
• Toyota Corolla (E120) 01/2002 - 07/2004
• Toyota Corolla (E120) 07/2004 - 02/2007
• Toyota Corolla (E170) 04/2014 - 12/2016*
• Toyota Corolla Verso (R1) 05/2004 - 06/2007
• Toyota Corolla Verso (R1) 07/2007 - 04/2009
• Toyota Estima 2006 - 2016
• Toyota FJ Cruiser 2001 - 2007
• Toyota Fortuner 2011 - 2015
• Toyota Hiace (H1) 11/2006 - 10/2010
• Toyota Hilux (N25) 10/2005 - 11/2008
• Toyota Hilux (N25) 11/2008 - 12/2011
• Toyota Hilux (N25) 12/2011 - 08/2016*
• Toyota Hilux (AN1P) 11/2016 - 09/2020*
• Toyota Hilux (AN1P) 10/2020 - 2025***
• Toyota Innova 2006 - 2011
• Toyota Innova 2011 - 2015
• Toyota Landcruiser (J12) 01/2003 - 01/2009
• Toyota Matrix 2003 - 2014
• Toyota MR2 (W3) 04/2000 - 03/2003
• Toyota Prado 2003 - 2009
• Toyota Previa 2006 - 2019
• Toyota Prius ZVW30/ZVW35 (XW3) 06/2009 - 04/2012
• Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 - 02/2016*
• Toyota Prius+ (XW3/XW4) 06/2012 - 01/2015*
• Toyota RAV4 (XA2) 10/2000 - 12/2003
• Toyota RAV4 (XA2) 12/2003 - 01/2006
• Toyota RAV4 (XA3) 03/2006 - 04/2009
• Toyota RAV4 (XA3) 04/2009 - 05/2010
• Toyota RAV4 (XA3) 05/2010 - 02/2013
• Toyota RAV4 (XA3/XA4) 04/2013 - 01/2016*
• Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018*/**
• Toyota Verso (AR2) 04/2009 - 01/2013*
• Toyota Verso (AR2) 04/2013 - 06/2018*
• Toyota Verso-S (XP12) 03/2011 - 07/2014*
• Toyota Verso-S (XP12) 07/2014 - 12/2015*
• Toyota Vios 2003 - 2007
• Toyota Yaris (XP9) 01/2006 - 01/2009
• Toyota Yaris (XP9) 01/2009 - 10/2011
• Toyota Yaris (XP13) 11/2011 - 08/2014*
• Toyota Yaris (XP13) 09/2014 - 03/2017*
• Toyota Yaris (XP13) 04/2017 - 08/2020*
• Toyota Yaris (XP150) 2013 - 2023

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible with some functions.

Steering wheel remote control

*Vehicles with rear view camera LFB Toyota various vehicles 28-pin USB/antenna/camera > Item:
42xty015**Vehicles with 360° OEM camera system LFB Toyota various vehicles 10-pin/6-pin/28-pin/24-pin > Item:
42xty019***Vehicles without JBL OEM device
