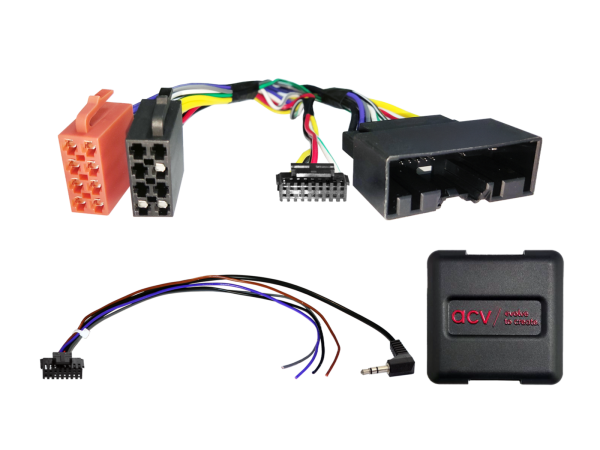

LFB Ford vehicles 24pin/without display Multilead

LFB Ford vehicles 24-pin/without display Multilead

Retain the original steering wheel remote control functions when replacing the factory radio with an aftermarket radio.

Depending on the vehicle equipment, range of functions, and software of the retrofit device, individual control functions may be omitted or replaced by other functions.

Compare the adapter connectors shown with those in your vehicle and make sure that they are visually and technically compatible.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final installation, check the vehicle functions, vehicle settings, and steering wheel remote control for proper operation.

Note:

Analog

Connection: 24-pin Ford plug
Connection: OEM steering wheel remote control > 3.5 mm jack / loose cable

Vehicles without OEM display

Vehicles with SYNC:
SYNC function not supported

Dip switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:

• Ford Ecosport (JK8) 02/2014 - 10/2017*
• Ford Fiesta (JA8/JR8) 01/2013 - 06/2017*
• Ford Transit Custom (FAC/FDA) 08/2012 - 01/2018
• Ford Transit Tourneo Custom (FAC/FAD) 08/2012 - 06/2016
• Ford Transit Connect (PJ2) 12/2013 - 05/2018
• Ford Transit Tourneo Connect (PJ2) 12/2013 - 05/2018
• Ford Transit (V363) (FCA/FAD) 08/2014 - 06/2019

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible with some functions.

Steering wheel remote control

*Vehicles with OK and/or voice function button
