ATBB 5010.01 - FM Wohnmobilantenne aktiv - FM/DAB+ mit optionalem Splitter

FM dipole antenna, potential-free, ideal for mounting in plastic assemblies, such as spoilers or in motorhomes. The antenna is actively operated and requires a 12 volt external power supply (not via splitter, etc.)

Properties:

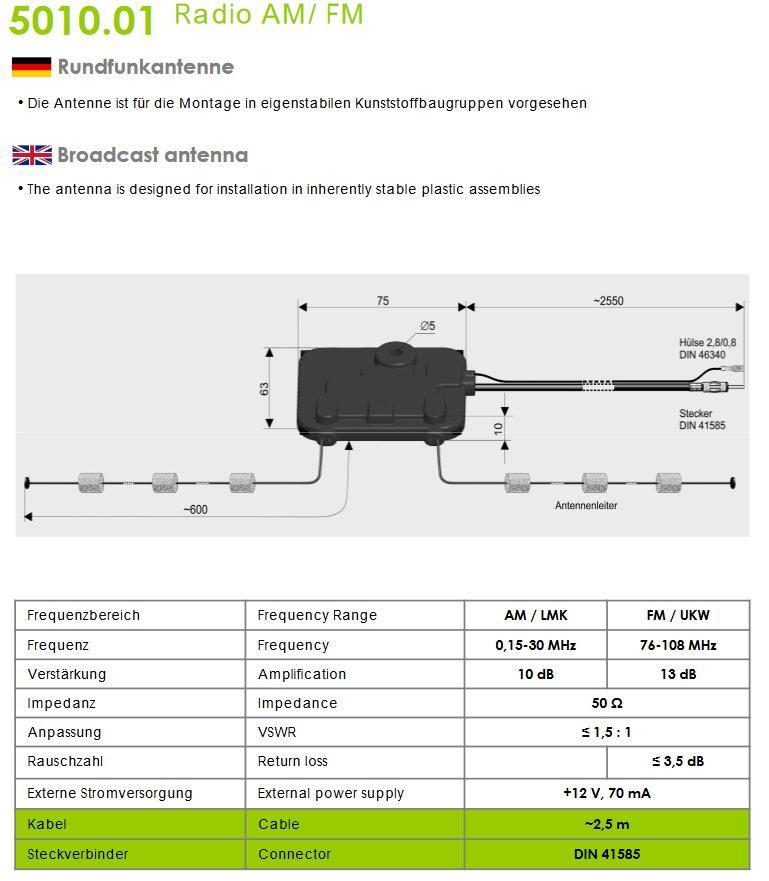

• Housing dimensions: 63 * 75 * 10 mm
• Length of the antenna conductors: 60 cm each
• Connection cable: 2.5 m RG58 with DIN plug
• Gain: 10 dB
• Impedance: 50 ohms
• External power supply: 12 volts, 70 mA
• directly usable as FM / FM antenna
• only usable with the passive splitter ATBB 4724.02 (Art.No .: 02096472402) for FM / FM and DAB + reception.
• Connections to this optional adapter:
• Input: DIN socket
• Output to the radio: Din plug for FM / FM and SMB socket for DAB +

Note:

For many RVs, drivers complain about poor FM / FM reception. Remedy this active antenna, which can be installed well under plastic parts.
With the specified splitter, the antenna can also be used for the DAB + reception.
We recommend the following accessories:

• ATBB 4724.02: Passive splitter with DIN / SMB connections (Art.No .: 02096472402)
• If the radio has an ISO input, the antenna adapter 0205310300 is required.
