ACV 15-7677810-1 - Antennacable kit Fakra(f) > DIN(m)/SMB(F)/SMA(m)/Fakra(f)

ACV 15-7677810-1

Antenna cable kit FM / DAB+ / GNSS

Antenna cable extensions and antenna adapter kit for installing antennas.

Suitable for the following antennas:

• Roof antenna AM/FM DAB/DAB+ GNSS(GPS/GLONASS) Shark II: 15-7677810
• Roof antenna AM/FM DAB/DAB+ GNSS(GPS/GLONASS) 60° rod inclination: 15-7677840

For the following applications:

• Antenna: Fakra(m)

• FM connection: Fakra B(f) > DIN(m)
• DAB+ connection: Fakra A/C/Z(f) > SMB(f) / SMA(m)
• GNSS connection: Fakra Z(f) > Fakra Z(f)

• Cable length: 500 cm

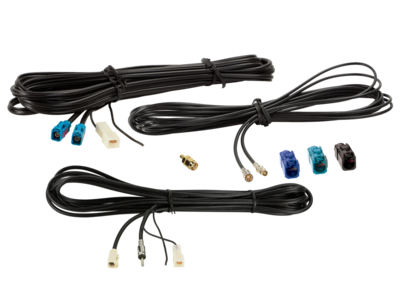

Scope of delivery:

• FM antenna cable extension Fakra B(f) > DIN(m) 500cm: 15-7581185
• DAB+ antenna cable extension Fakra A/C/Z(f) > SMB(f) 500cm: 15-7581012
• Antenna adapter SMB(m) > SMA(m): 1502-29 GNSS
• Antenna cable extension Fakra Z(f) > Fakra Z(f) 500cm: 15-7581195

Optional:

• FM antenna adapter DIN(m) > ISO(m): 1501-00 GNSS
• Antenna adapter SMB(m) > HSR-F GT16(f) GPS Pioneer 12cm: 15-7181113
• Antenna adapter SMB(m) > GT5(f) Alpine/Kenwood GPS 12cm: 15-7581077
