Match PP-MB 1.7MBUX Advanced - Connection cable for Mercedes with UP8DSP

MATCH PP-MB 1.7MBUX Advanced

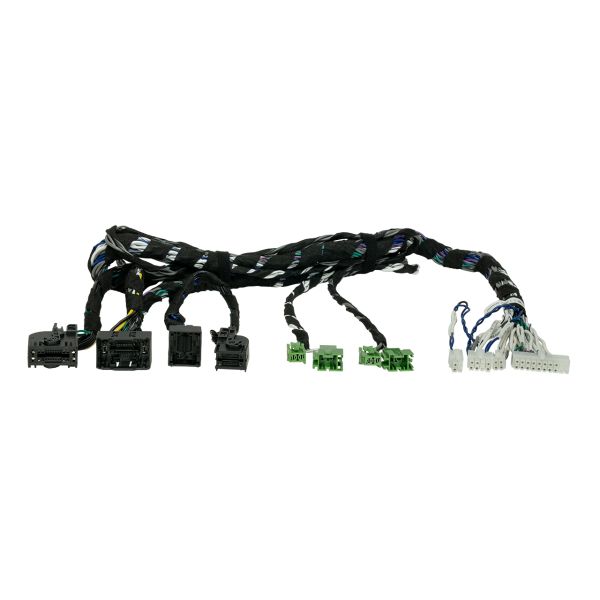

This 7-channel UPGRADE wiring harness enables the optimal connection of a UP 8DSP amplifier with integrated MEC ANALOG IN module to selected Mercedes models with Advanced Sound System and MBUX radio (Mercedes-Benz User Experience).

Features

• Plug & Play connector for easy connection of the MATCH UP 8DSP amplifier with integrated MEC ANALOG IN module
• MBUX connection for connection to Mercedes radios with Mercedes-Benz User Experience
• Wiring harness length: 1.00 meter

Technical specifications

• Wiring harness length: 1.00 meter
• Connections
• 1 x 20-pin MOLEX connector for connecting the System Connector input of the UP 8DSP
• 1 x 4-pin MOLEX connector for connecting the high-level inputs E - F of the UP 8DSP
• 1 x 8-pin MOLEX connector for connecting the speaker outputs E - H of the UP 8DSP
• 1 x 4-pin MOLEX connector for the Connecting the MEC ANALOG IN Module
• 1 x 38-pin Mercedes system connector
• 1 x 38-pin Mercedes system socket

Compatibility

• For connecting the MATCH UP 8DSP with ANALOG IN Extension Card
• Suitable for Mercedes models with factory-installed Advanced Sound System and Mercedes-Benz User Experience (MBUX)

Scope of delivery

• 1 x Plug & Play wiring harness MATCH PP-MB 1.7MBUX Advanced
