Match PP-BMW 1.10RAM-HK - Connection cable for BMW with UP8DSP

MATCH PP-BMW 1.10RAM-HK

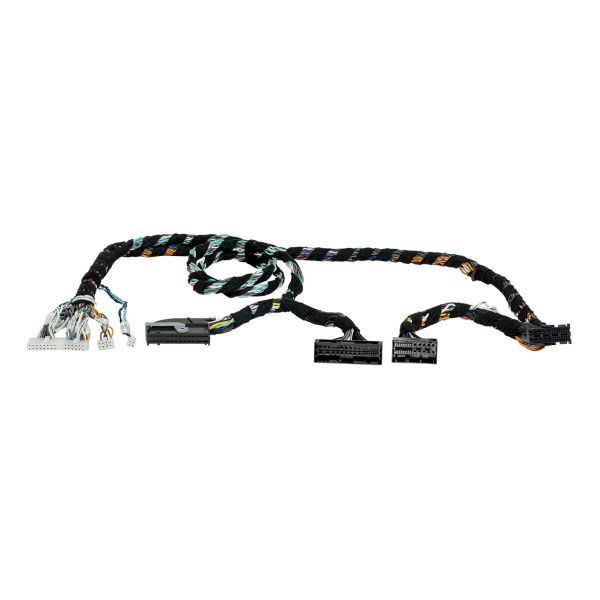

This 10-channel UPGRADE wiring harness enables the optimal connection of a UP 10DSP amplifier with integrated MEC ANALOG IN module to selected BMW i models with Harman Kardon and RAM receiver modules.

Important note: Before initial use, the high-level input inside the UP 10DSP amplifier must be set to the High Voltage Range (jumper to: Input G - H 32V). Further information on adjusting the input sensitivity can be found on page 10 of the UP 10DSP user manual.

Features

• Plug & Play connector for easy connection of the MATCH UP 10DSP amplifier with integrated MEC ANALOG IN module
• BMW-specific connector for connection to the vehicle wiring harness
• RAM connection for connection to the vehicle wiring harness with RAM receiver module
• Wiring harness length: 1.00 meter

Technical specifications

• Wiring harness length: 1.00 meter
• Connectors
• 1 x 20-pin MOLEX connector for connecting the System Connector input of the UP 10DSP
• 1 x 8-pin MOLEX connector for connecting the high-level input E - H of the UP 10DSP
• 1 x 12-pin MOLEX connector for connecting the speaker outputs E - J of the UP 10DSP
• 1 x 4-pin MOLEX connector for connecting the MEC ANALOG IN module
• 1 x 42-pin BMW RAM system connector
• 1 x 42-pin BMW RAM system socket
• 1 x 35-pin BMW system connector
• 1 x 35-pin BMW system socket

Compatibility

• For connecting the MATCH UP 10DSP with ANALOG IN Extension Card
• Suitable for BMW i models with RAM (Receiver Audio Module)
• Compatible with the factory Harman Kardon sound system

Scope of delivery

• 1 x Plug & Play wiring harness MATCH PP-BMW 1.10RAM-HK
