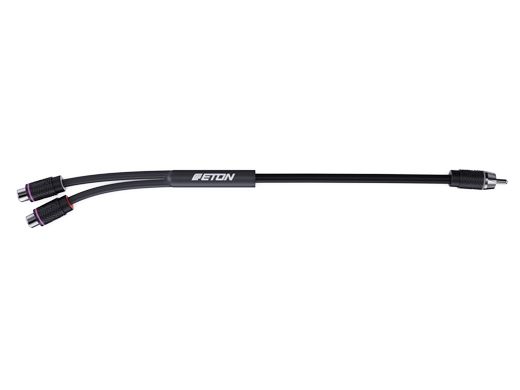

Eton RCAP-YF - Performance Y-Cinch cable 30cm

ETON RCA P-YF

High-quality Y-RCA cable, 30 cm, 2 x sockets (female/female, stereo) to 1 x plug (male, mono), Y-splitter, audio adapter for car amplifiers/radios, head units

The 30 cm long RCA P-YF from the ETON Performance series is a high-quality, pseudo-parallel-symmetrical Y-channel RCA cable for connecting one RCA plug (1 x male, mono) to two RCA sockets (2 x female, stereo) – ideal for head units/radios and amplifiers. The RCA P-YM ensures distortion-free, unadulterated audio reproduction across the entire frequency range.

The twisted HOT/GND inner conductors are made of fine-stranded, high-purity, 100% oxygen-free OFC solid copper (20/0.12 mm), enabling optimal signal transmission. In addition to the shielding created by the tight twist, the cable features a metallized Mylar sheath shield.

The specially developed short connector housings enable easy installation even in limited space. The highly conductive contact pin is slotted and expands when connected – just like the diagonally slotted outer conductor ring – thus ensuring a secure connection for maximum transmission quality. Featuring a non-slip ETON pattern and measuring a minimum of 20.5 mm, the connectors can be inserted easily and flexibly.

The heavy-duty black PVC outer sheath offers effective protection against moisture and mechanical stress. Thanks to the special coating, the cable can be pulled easily and flexibly, making it easy to install in the vehicle. Y-shaped slickpants at the cable ends provide additional protection: Made of high-quality silicone, they are very flexible, durable, temperature-resistant, and particularly durable.

To prevent incorrect connection, the left/right sockets are color-coded (red/white). Plastic rings are included for customizing additional color markings. The RCA P-YF is engineered in Germany and certified for the automotive sector.

Main Features of the RCA P-YF

• Fine-stranded, twisted inner conductors made of 100% oxygen-free OFC solid copper (20/0.12 mm)
• Multi-shielded with twisted inner conductors and a metallized Mylar jacket shield
• Short connector housings with ETON pattern
• Slotted center pin inner conductor, diagonally slotted outer conductor ring for maximum signal transmission and clamping
• Heavy-duty black PVC jacket with special coating, Y-slickpants on the cable ends
• Fixed color marking (red/white) for easy left/right identification
• Freely selectable Color coding with plastic rings

Scope of delivery

• 1 x Y-RCA cable / Y-splitter, 0.3 m long, 2 female to 1 male (f/f - m)
• 2 x pink plastic rings for color coding
