Zenec Z-E1010 + Z-F5601 - Set für Skoda Octavia III

Vehicle-specific Infotainer for Skoda Octavia III

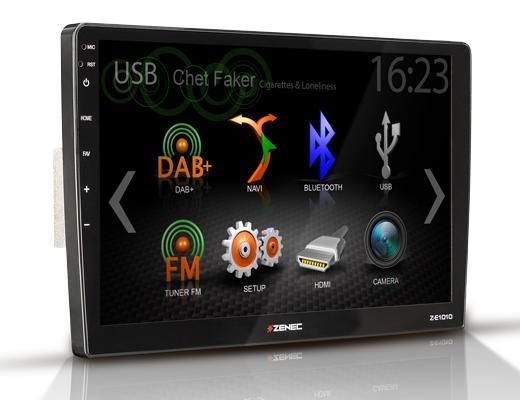

Basic unit Zenec Z-E1010 incl. Installation kit Zenec Z-F5601

ZENEC E> GO CORE

is an innovative system solution to comfortably retrofit a vehicle-specific infotainer with a large display: Developed for newer or up-to-date VAG MIB models, the COREs also fit into other very interesting vehicle models with a higher distribution.

• The revolutionary concept is based on the CORE main models, which are available in two variants, adapted to the respective target vehicles: as Z-E1009 with 9 "/ 22.9 cm display and as Z-E1010 with 10.1" / 25, 7 cm screen.
• In addition, there are vehicle-specific mounting frame kits, which contain all cable harnesses and antenna adapters required for the target vehicle, so that a simple and, above all, time-saving assembly is ensured. After the device has been installed, a configuration file is loaded in order to connect the respective brand and model-specific comfort functions of the vehicle to the CORE device.
• The CAN-based model-specific integration functions include the connection of audio metadata from sources on the driver info display, the Climatronic status display with or without control function, connection to OPS, multifunction steering wheel and VAG Car menu, or the cockpit vehicle data display.

Z-E1010 Equipment Features

• 10 "/ 25.7 cm display with a resolution of 1024 x 600 pixels - capacitive touchscreen

• DAB + Tuner with Service Following, MOT Slifde Show, DLS Text, Comfort Scan
• FM RDS radio tuner with switchable phantom power (also switchable to 8.5 V for new VW vehicles)
• SmartLink Direct connection
• WebLink 2.0 connection
• RealDash App - virtual dashboard with display of various vehicle data (via optional OBDII dongle)
• 2x USB port for playback of audio and video formats including FLAC and MKV 1080p
• Audio DSP with 3-band EQ and active crossover function
• Intermediate hardware for processing vehicle CAN data
• ZENEC SP-REM app for controlling the CORE devices via the Smartphoney
• prepared for optional Z-EMAP-CORE Navi package

Delivery Content:

• Zenec Z-E1010 basic unit
• vehicle-specific frame in the color "black matt"
• special Quadlock III connection cable, length 0.65 m
• FM antenna adapter double Fakra <==> Fakra, length 0.65 m
• DAB antenna adapter Fakra A <==> SMB
• 4 pieces unlocking key

Compatible to:

• Skoda Octavia III, Type 5E, BJ from 2012
