Ampire KTX802 - Rear view camera

Ampire Mini color rear view camera, 155° design, front camera input

The KTX802 miniature wide-angle under-body camera is a rear view camera with unlimited application areas in cars, buses, mobile homes, trucks or trailers.
The matt black plastic housing is particularly weather-resistant, IP69K waterproof and very sturdy.
Two different guide lines (narrow/wide) can be optionally displayed in the video signal, which allows the viewer to park better.
The device is supplied complete with an 8 meter extension cable with high-quality copper wires.

Technical data

• 2 different guide lines: switched off at the factory (can be switched on)
•  black matt plastic housing with stainless steel fastening
•  Image display mirrored (adjustable)
•  Image display rotated 180° (adjustable)
•  Image sensor type 1/4'' 1233 HD Color CMOS Low Light Sensor
•  Video signal NTSC with 60 frames/second
•  Resolution pixels 960H×480V
•  DIN protection class IP69K
•  Resolution 800 TV lines
•  Exposure 1/50-60~1/15000 seconds
•  Signal-to-noise ratio =>46dB
•  Dynamic range >>74dB
•  Light sensitivity < 0.01 Lux/F1.2
•  Output signal 1.0Vp-p, 75 OHM
•  Automatic white balance
•  Automatic video level adjustment
•  Operating voltage 12 Volt DC
•  Power consumption 25-55mA
•  diagonal viewing angle 188°
•  horizontal viewing angle 155°
•  vertical viewing angle 113°

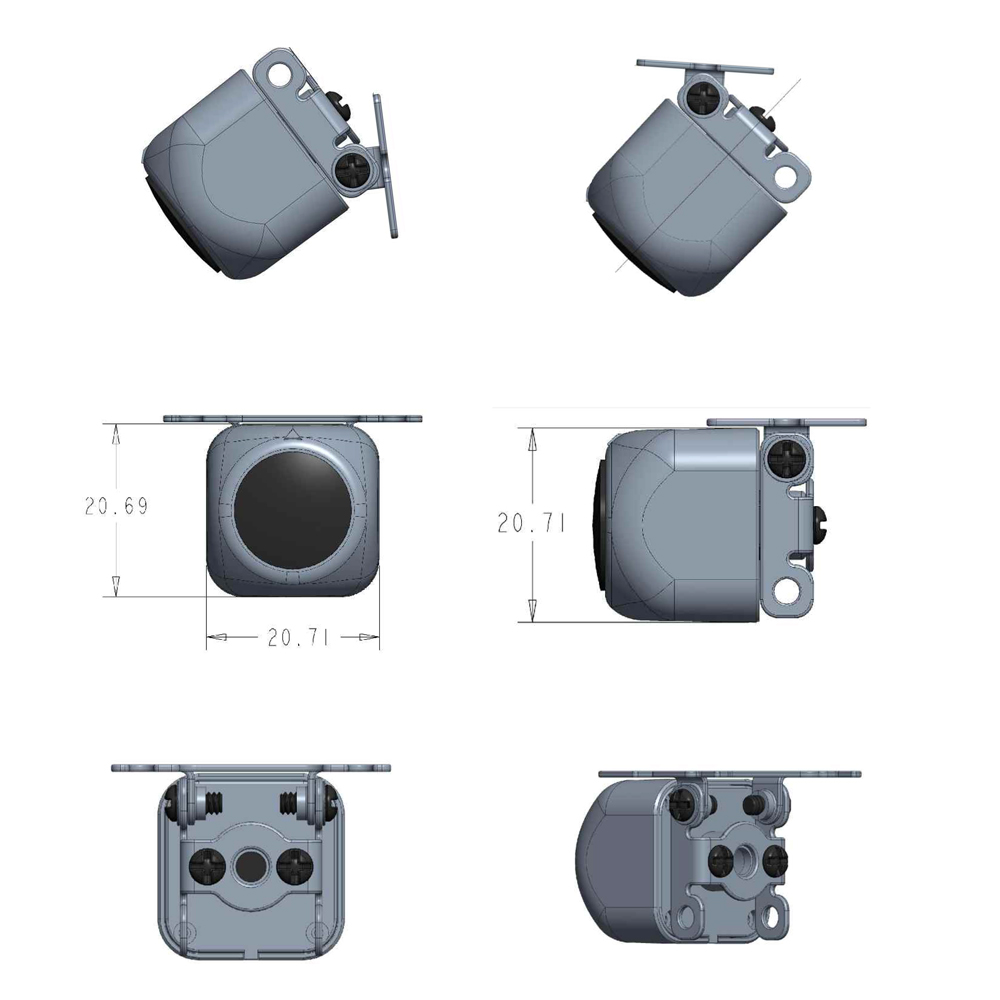

•  Camera dimensions 20.7x20.7x17.8mm
•  Operating temperature -40°C to +75°C
•  Storage temperature -60°C to 105°C
•  E certified

Approvals

• CE Directive of 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
• FCC Part 15B Report No. STR12058092E-3
