BRAKE LIGHT CAMERA FOR FIAT DUCATO

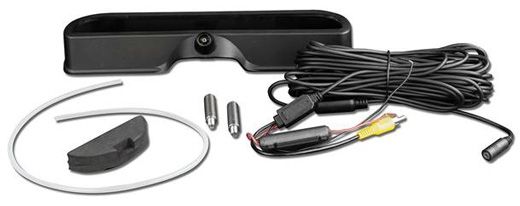

The XZENT X-RVC290-MK2 reversing camera was developed specifically for motorhomes based on the FIAT Ducato III chassis, including other variants of this vehicle type.
The MK2 has a horizontal viewing angle of 125ø. The special feature of this camera is the physical integration of the camera into the third brake light of Ducato vehicles.
The X-RVC290-MK2 is compatible with a variety of aftermarket moniceivers and navigation systems as well as the infotainers of the

KEY FEATURES

• Vehicle-specific, high-resolution brake light reversing camera for FIAT Ducato III vehicles and analogue model variants
• System design that integrates into the original Ducato brake light (homologation compliant)
• High quality CMOS image sensor with low power consumption
• Detailed, high-contrast image even under twilight conditions
• Plastic housing with stainless steel mounting bolts and screws
• Separable system cable with a length of 0.30 m + 11 m

TECHNICAL SPECIFICATIONS

• Camera system 0.33" / 8.38 mm PC4089 CMOS sensor
• Focal length of the lens f2
• TV system NTSC / 60 fps
• Viewing angle 160ø (D) / 125ø (H) / 100ø (V)
• Native sensor resolution 728 x 488 pixels (native SOC pixels 756 x 504 H x V)
• Resolution output signal > 550 TV lines
• Frame rate 60 fields/sec.
• Signal-to-noise ratio > 46.5 dB
• Light sensitivity 0.5 Lux/IR On
• Video output 1.0 Vp - p (+/- 0.2 V), 75 Ohm, CVBS RCA
• White balance automatically
• Exposure compensation automatically
• Dynamic range 60.7 dB
• Brightness adjustment automatically
• Synchronization automatically
• Power supply DC12V (9-16V DC)
• Current consumption 40 mA +/- 10 mA (@ DC12V) / 480 mW
• Protection class IP68
• Operating temperature -20ø to +70ø C
