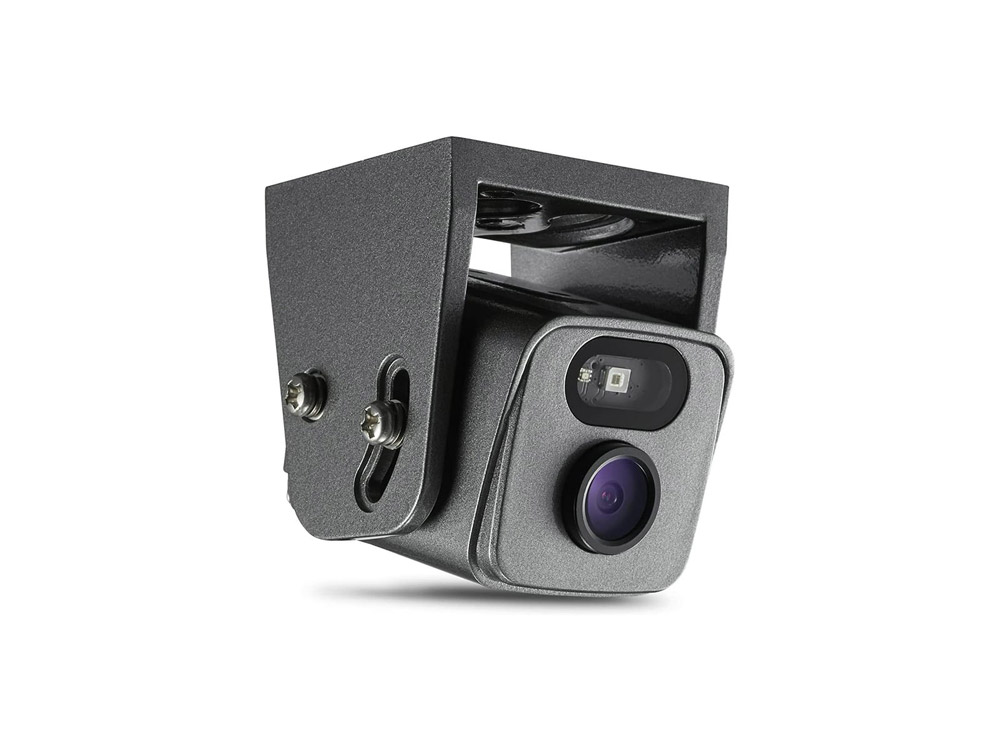

Alpine RVC-E790IR - Infrared outdoor camera for DCR-F790

RVC-E790IR Outdoor Infrared Camera

The Alpine RVC-E790IR Outdoor Infrared Camera is the perfect addition for RV owners or commercial users to mount and record outdoors. The outdoor infrared camera can be paired with the DVR-F790 or RVX-100 Camera Extension Box to provide an additional viewing angle in clear Full HD video resolution. The built-in IR light is strong enough to enable recording even in extremely low light conditions. With the IP68 waterproof housing, it can withstand harsh weather conditions.

Main Features

• Video recording: Record in high-quality 1080p Full HD video resolution.
• Waterproof and dustproof: Robust IP68 housing that is both waterproof and dustproof and can therefore withstand harsh weather conditions
• Clear and detailed recordings at night: The integrated infrared light (IR wavelength 940 nm) illuminates the immediate surroundings and enables the camera to capture details that are invisible to the human eye in the dark. During the day, the infrared outdoor camera records with precise color and balance.
• Compatible with the Alpine RVX-100 Camera Extension Box: The infrared outdoor camera can be connected to the Camera Extension Box as part of a multi-channel recording system, providing additional coverage where desired.

Please note

This product is only compatible with the Alpine DVR-F790 .

Specifications

General

• Resolution: Full HD (1920 x 1080)
• Camera: 2.12 MP Pixelplus
• IR Wavelength: 940 nm
• IR Intensity:150 mW/sr @700 mA
• Frame Rate: 30 fps
• Viewing Angle: 126° (Diagonal)
• Current Consumption: 208 mA (IR ON), 166 mA (IR OFF)
• Dimensions (WxDxH): 53.2 x 43.1 x 51.3 mm
• Weight: 106.0 g
• Cable Length: 2.0 + 20.0 m
• Operating Temperature:   -10°~ 60°C
• This product is only compatible with the Alpine DVR-F790 komcompatible.
