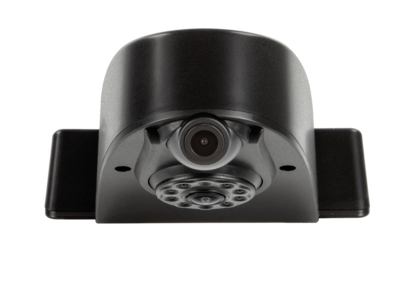

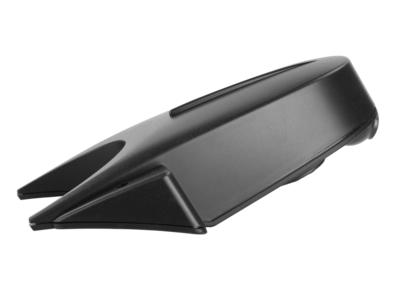

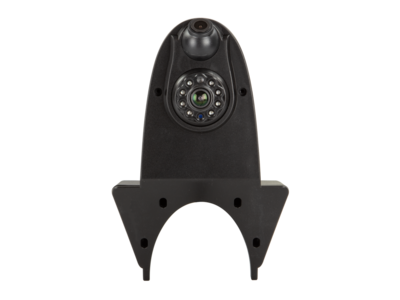

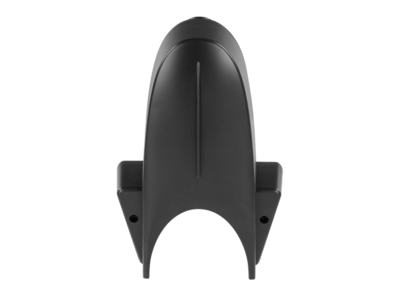

ACV 771000-6010-2 - Rear view camera Transporter body/Dual View

Rear view camera Dual View universal

• Design: Transporter
• Mounting type: roof mounting
• With night vision function / adjustable viewing angle 20°  / 2 camera lenses
• Cinch(m) yellow: video camera 1
• Cinch(m) white: video camera 2
• Connection to monitors with 2 x video input
• Connection to monitors with 1 x Video input:
• Video switching 2x Cinch(f)>1x Cinch(m) +12V switched > Article: 771000-5008

Product features camera:

• Construction: plastic
• Color: black
• Extras: night vision function / viewing angle 20° adjustable / 2 camera lenses
• Sensor type: 1/3" CMOS
• Image system: NTSC color
• Effective pixels: 976 x 572
• Lens: 1.9mm / F 2.0
• Min.Lux: 0 when active Night vision function
• Resolution: 600TV lines
• Viewing angle camera 1: horizontal 105 +5° vertical 75 +5°
• Viewing angle camera 2: horizontal 48 +5° vertical 34 +5°
• Dust and water resistant: IP68
• Connection: 7 pin system connector(f)
• Operating voltage: +12V DC
• Supply voltage: +12V DC
• Current consumption: 200mA with night vision function switched on
• Operating temperature range: -20°C - 75°C
• Storage temperature: -40°C - 85°C
• Dimensions: L / W / H / - 205 mm / 128.5 mm / 55.4 mm

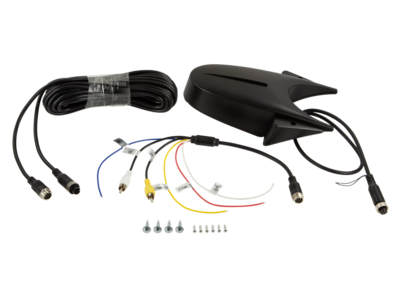

• Connection cable to the camera 60cm +/-: 7 Pin system plug(m)
• Extension 10m +/-: 7 Pin system plug(m) / 7 Pin system plug(f)

Connection cable 20cm+/-:

• 7 Pin System connector (m)
• red: supply voltage
• blue: ground/GDD
• yellow: supply voltage
• white: ground/GND
• Cinch (m) yellow: video
• Cinch (m) white: video
