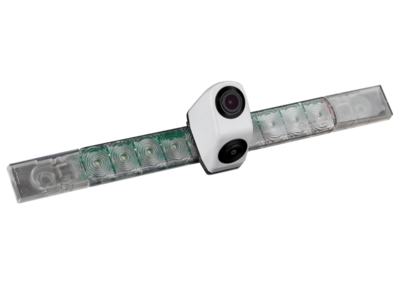

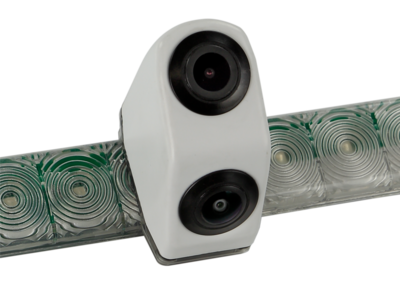

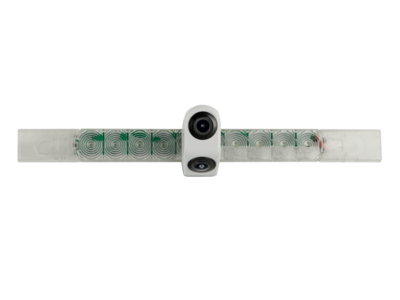

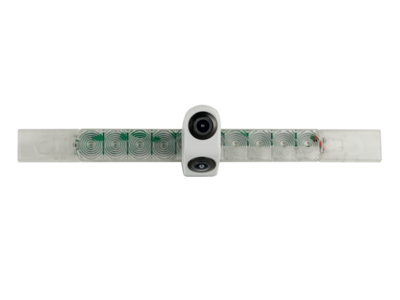

ACV 771000-6026 - Rear view camera for motorhome/caravan Hella 3rd brake light

Rear view camera Dual View 2 camera lenses

• Caravans / mobile homes with Hella 2DA 343 106-201 3rd brake light
• For replacing the OEM 3rd brake light
• White

Product features camera:

• Construction: plastic
• Color: black / white
• Extras: 2 camera lenses
• Sensor type: 1/3" CMOS
• Image system: NTSC color
• Effective pixels: 976 x 592
• Lens: 1.9mm / F 2.0
• Min.Lux: 0.1
• Resolution: 600 TV lines
• Viewing angle camera 1: diagonal 170°
• Viewing angle camera 1: horizontal 115° vertical 75° + 5°
• Viewing angle camera 2: diagonal 95°
• Viewing angle camera 2: horizontal 48 + 5° vertical 34 + 5°
• Dust and water resistant: IP68
• Connection: 7-pin connector
• Supply voltage: 12 volts + 10%
• Current consumption: 180mA
• Operating temperature range: -30°C - 75°C
• Storage temperature: -40°C - 80°C
• Dimensions: see OEM brake light
• Connection cable to the camera: 0.5 meter cable 7 pin connector (m)

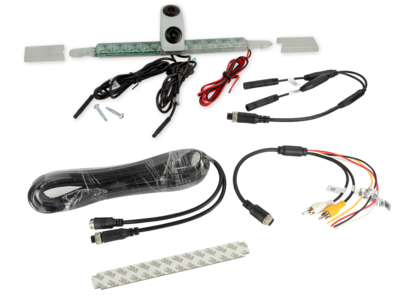

Cable set:

• 10 meter 7 pin extension
• 0.2 meter 7 pin connection cable

Connection:

• black: ground body
• red: trigger line +12V switched camera1
• yellow cinch: camera1
• yellow: trigger line +12V switched camera2
• white cinch: camera2
