Ampire KCA102W - Multimount rear view camera

Ampire KCA102W

The KCA102 miniature in-/under-cabinet camera is a high-resolution AHD camera with a wide range of applications in cars, buses, motorhomes, trucks, or trailers as a front or rear view camera. The matte black housing is particularly weather-resistant, IP69K waterproof, and extremely robust. Optionally, guide lines can be overlaid into the video signal to help the viewer park more easily. The delivery includes an 8-meter extension cable with high-quality copper strands.

FEATURES

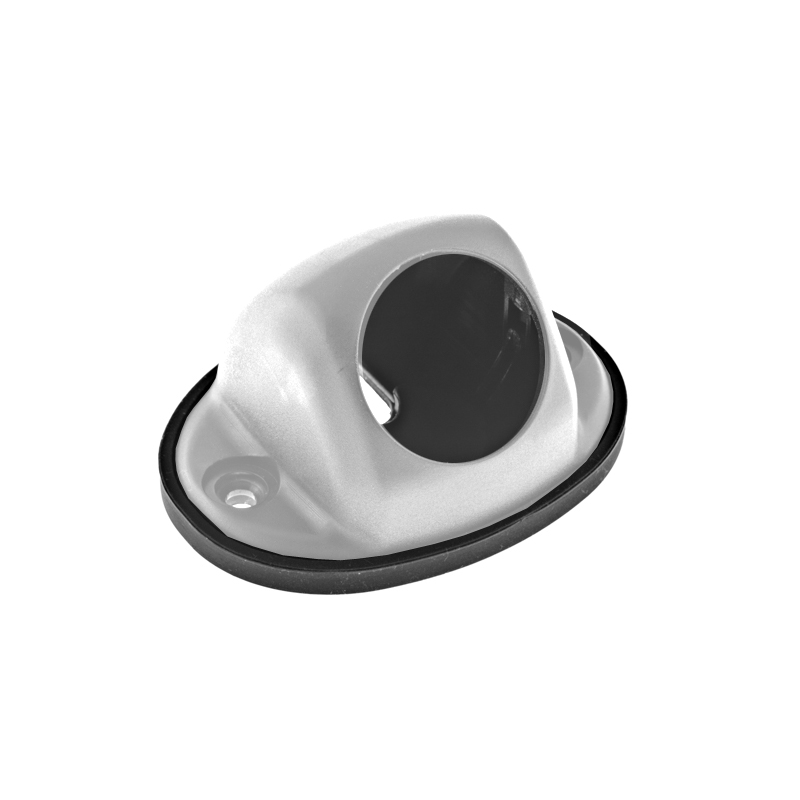

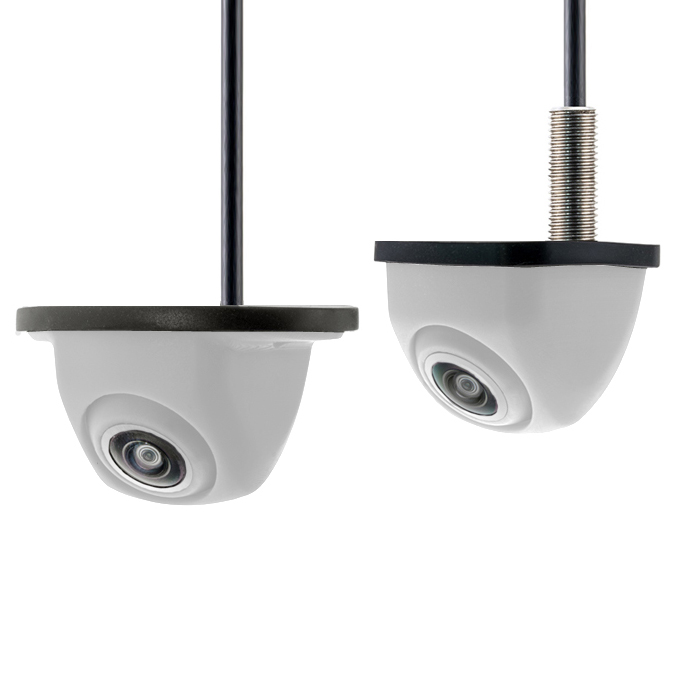

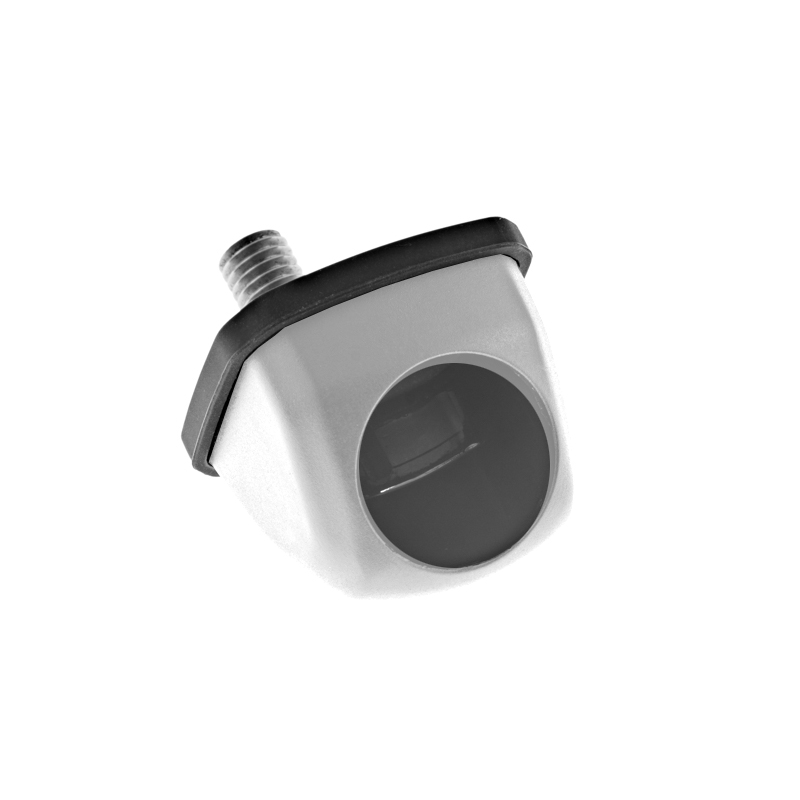

• AHD wide-angle camera with two plastic housings
• Can be used for 24/7 continuous operation
• IP69K waterproof with stainless steel bracket

ADJUSTMENT OPTIONS

• Guide lines: factory-deactivated (can be switched on)
• Image display mirrored (adjustable)
• Camera can be mounted rotated 180°

TECHNICAL DATA

• Image sensor type: AHD 1/4" 2729
• Video signal 1080P with 25 Frames/second
• Resolution: 1920x1080 pixels
• Diagonal viewing angle: 170°
• Horizontal viewing angle: 150°
• Vertical viewing angle: 90°
• Exposure: 1/50-60~1/15000 seconds
• Signal-to-noise ratio: >60.5dB
• Light sensitivity: <0.01 lux
• Automatic white balance
• Automatic video level adjustment

GENERAL DATA

• Operating voltage: 6 to 26 volts DC
• Power consumption: 60-90mA
• DIN protection class IP69K
• Matte black housing with stainless steel mounting
• Operating temperature -40°C to +75°C
• Storage temperature -60°C to 105°C
• E-certified

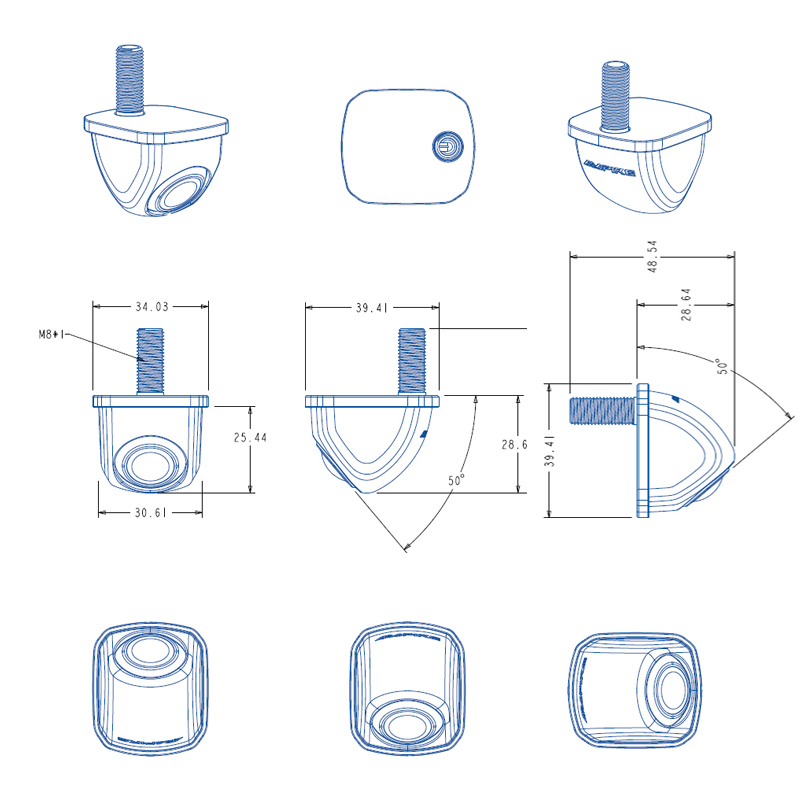

• Dimensions housing 1: 40x34x31mm plus 20mm thread

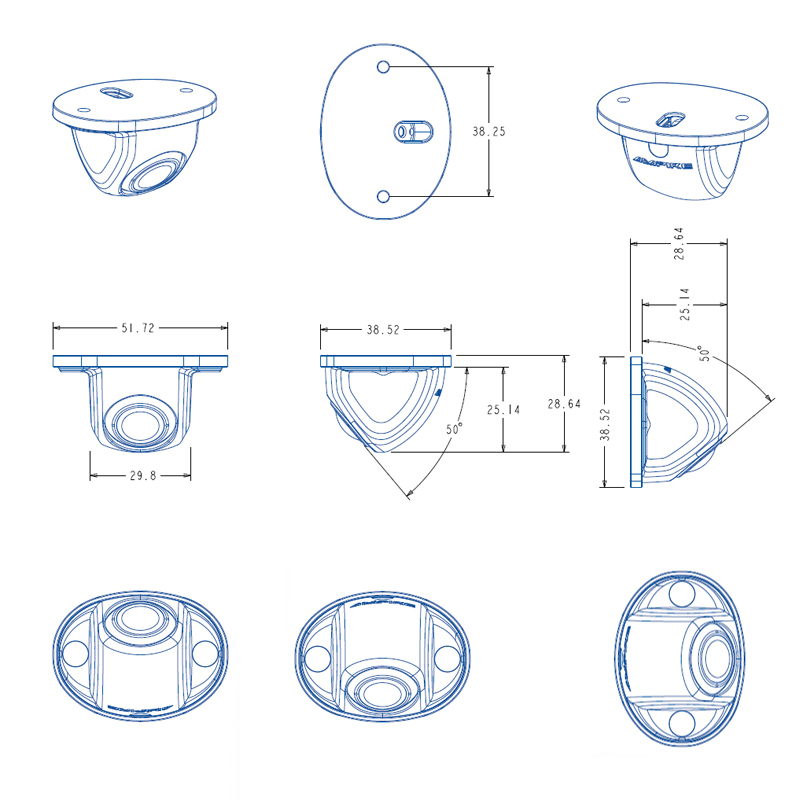

• Dimensions housing 2: 52x39x29mm

ORDERING NOTE
This camera is a high-resolution AHD camera with 1080P resolution and 25 frames per second. This camera can only be connected to compatible monitors, car stereos, or interfaces. If the camera input on your monitor can only display a video signal in CVBS, FBAS, or NTSC, this AHD camera is unsuitable; please use the identically constructed camera. CVBS camera with NTSC video signal.

OPTIONAL ACCESSORIES
The optional AC-PNF-RVC2 signal filter is a stabilizer for clocked reversing lights with a PWM signal. We recommend installing the signal filter if you are unsure whether your vehicle has a reliable power supply.

IMPORTANT INSTALLATION INSTRUCTIONS
The camera head is waterproof according to DIN protection class IP69K and does not require additional sealing during installation. The camera lens is made of glass and is fragile. All metal parts are made of stainless steel. Stainless steel is rust-proof because it has a protective chromium oxide layer. However, this layer can be damaged or degraded under certain conditions, which can lead to the formation of rust.
