Ampire KCX202 - Mini surface-mounted rear view camera

Amprie KCX202

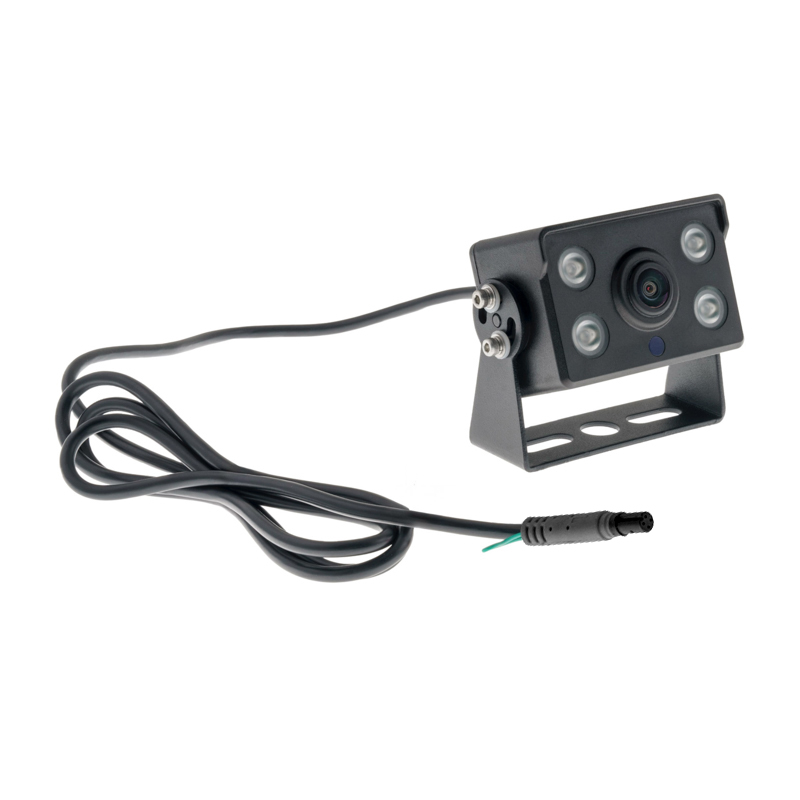

The KCX202 mini surface-mounted camera with wide-angle optics is a rearview camera with unlimited application possibilities in cars, buses, motorhomes, trucks, or trailers.

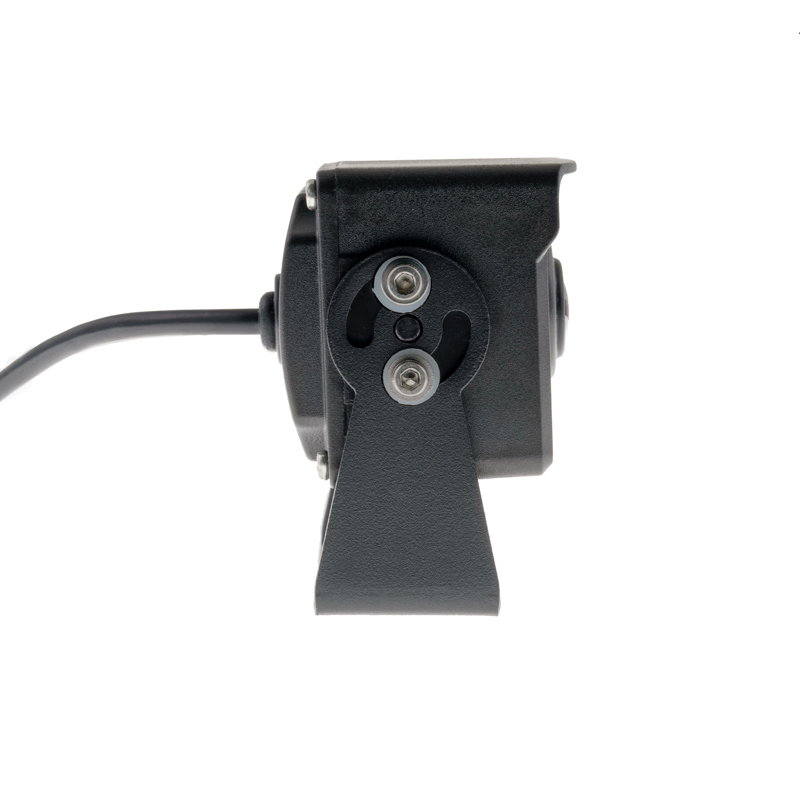

The matte black plastic housing is particularly weather-resistant, IP69K waterproof, and very sturdily constructed. The mount is made of powder-coated stainless steel with stainless steel screws.
The delivery includes a 10-meter extension cable with high-quality copper strands.

FEATURES

• HD wide-angle camera in a plastic housing
• Can be used for 24/7 continuous operation
• IP69K waterproof with stainless steel mount and screws
• Infrared night vision illumination

SCOPE OF DELIVERY

• Surface-mounted camera with mount
• 10m extension cable AK1034
• Power supply AK1035
• User Manual

TECHNICAL DATA

• Guide lines: factory-activated (can be deactivated)
• Matte black plastic housing with stainless steel mount
• Image display: Mirrored (adjustable)
• Image sensor type: 1/4'' 1233 HD Color CMOS Low Light Sensor
• Video signal: NTSC at 60 frames/second
• Resolution: 960x480 pixels
• DIN protection class: IP69K
• Resolution: 800 TV lines
• Exposure 1/50-60~1/15000 seconds
• Signal-to-noise ratio =>46dB
• Dynamic range >>74dB
• Light sensitivity 0 lux with IR illumination
• Output signal 1.0Vp-p, 75 ohms (CVBS)
• Automatic white balance
• Automatic video level adjustment
• Operating voltage 6 to 26 volts DC
• Power consumption 170-200mA @ 12 volts
• diagonal Viewing angle: 170° Horizontal viewing angle: 135° Vertical viewing angle: 90° Camera dimensions: 60x40x40mm Camera dimensions with mount: 72x55x45mm Operating temperature: -40°C to +75°C Storage temperature: -60°C to +105°C E certified Approvals: CE Directive 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
  FCC Part 15B Report No. STR12058092E-3

  OTHER SEARCH TERMS
  KC201, kc201, KC202, kc202,

  IMPORTANT INSTALLATION INSTRUCTIONS
  The camera head is waterproof according to DIN protection class IP69K and does not require additional sealing during installation. The camera lens is made of glass and is breakable. All metal parts are made of stainless steel. Stainless steel does not rust because it has a protective chromium oxide layer. However, this layer can be damaged or degraded under certain conditions, which can lead to the formation of rust.
