Ampire KCA403 - Mini rear view camera

Ampire KCA403

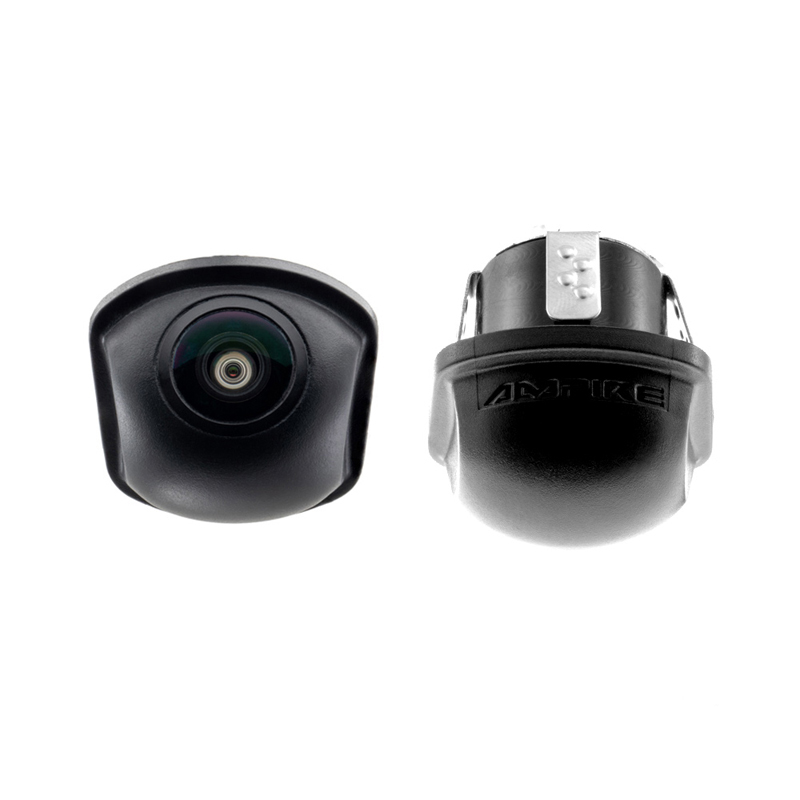

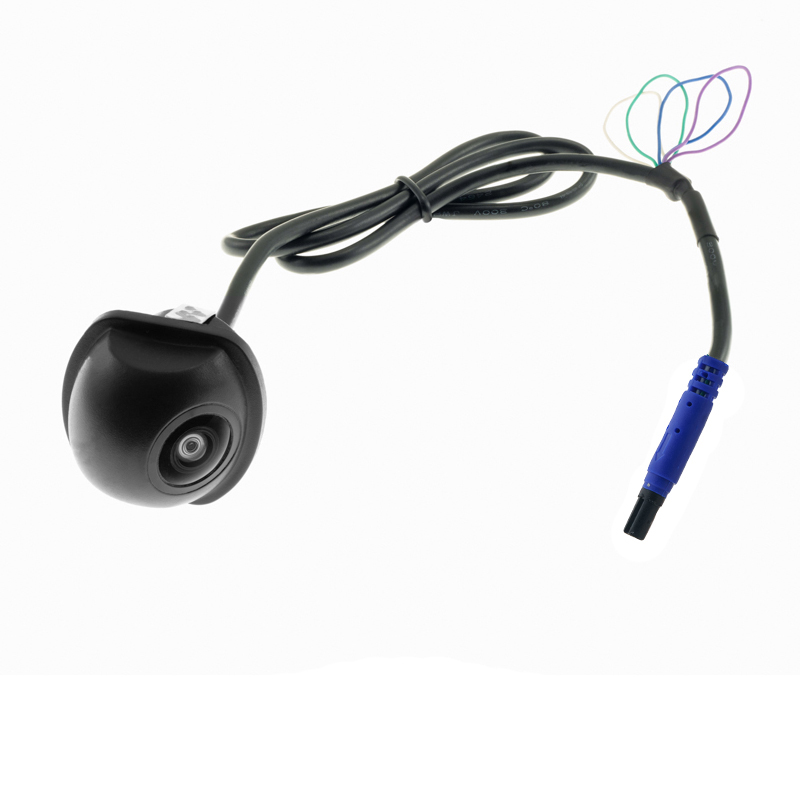

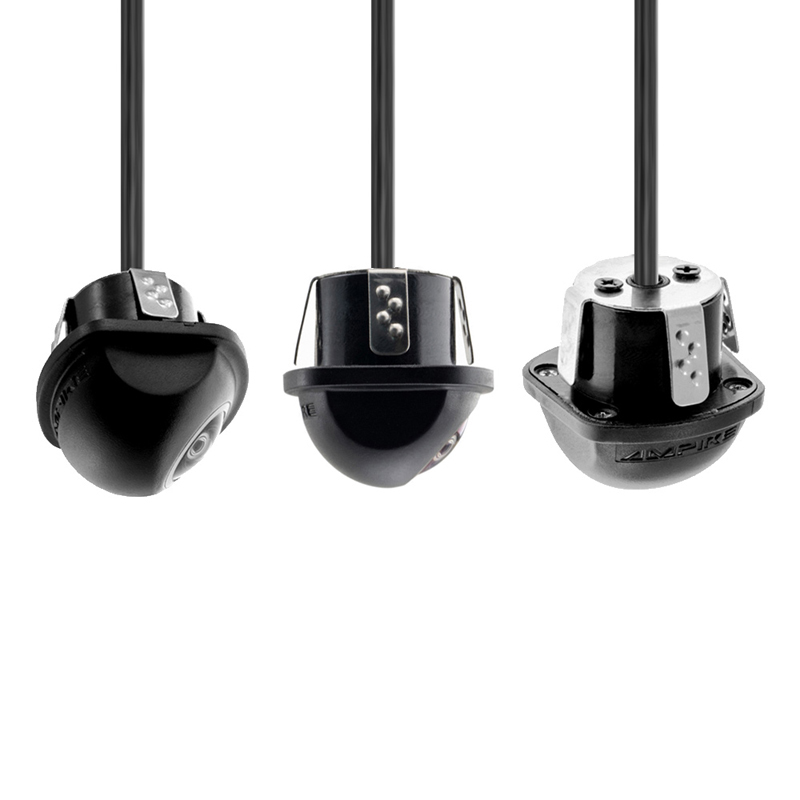

The KCA403 miniature under-cabinet camera is a high-resolution AHD camera with a wide range of applications in cars, buses, motorhomes, trucks, or trailers as a front or rear view camera. The matte black plastic housing is particularly weather-resistant, IP69K waterproof, and extremely robust. Two different guide lines (narrow/wide) can be optionally overlaid into the video signal, allowing the viewer to park more easily. The delivery includes an 8-meter extension cable with high-quality copper strands.

FEATURES

• AHD wide-angle camera in a plastic housing
• Can be used for 24/7 continuous operation. IP69K waterproof with a stainless steel bracket.

SETTING OPTIONS

• Guide lines: factory-deactivated (2 different ones can be activated)
• Image display mirrored (adjustable)
• Image display rotated 180° (adjustable)

TECHNICAL DATA

• Image sensor type: AHD 1/4" 2729
• Video signal 1080P with 25 Frames/second
• Resolution: 1920x1080 pixels
• Diagonal viewing angle: 170°
• Horizontal viewing angle: 150°
• Vertical viewing angle: 90°
• Exposure: 1/50-60~1/15000 seconds
• Signal-to-noise ratio: >60.5dB
• Light sensitivity: <0.01 lux
• Automatic white balance
• Automatic video level adjustment

GENERAL DATA

• Operating voltage: 6 to 26 volts DC
• Power consumption: 60-90mA
• DIN protection class IP69K

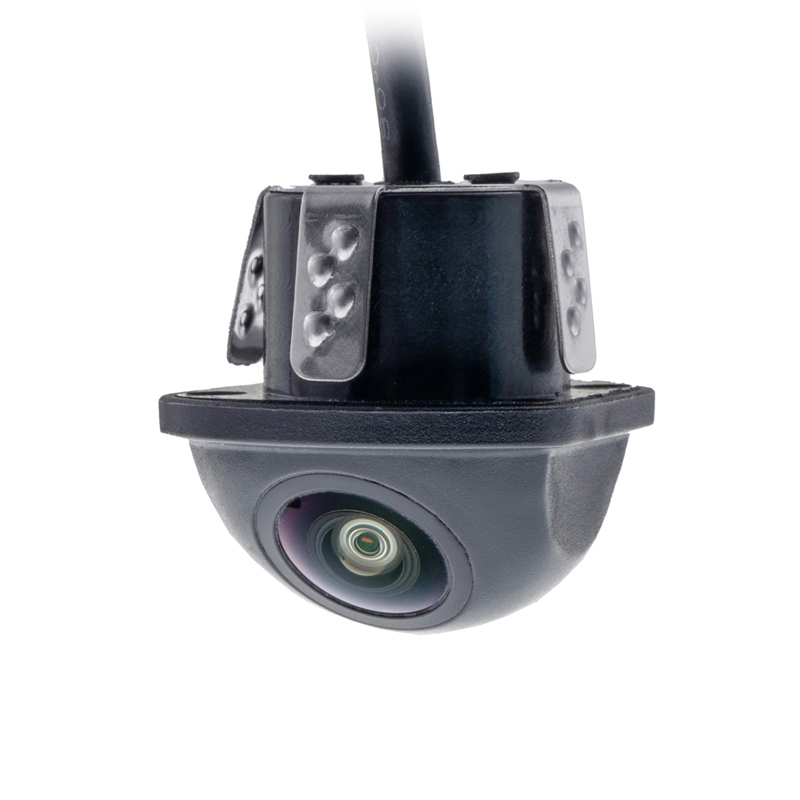

• Matte black housing with stainless steel mounting

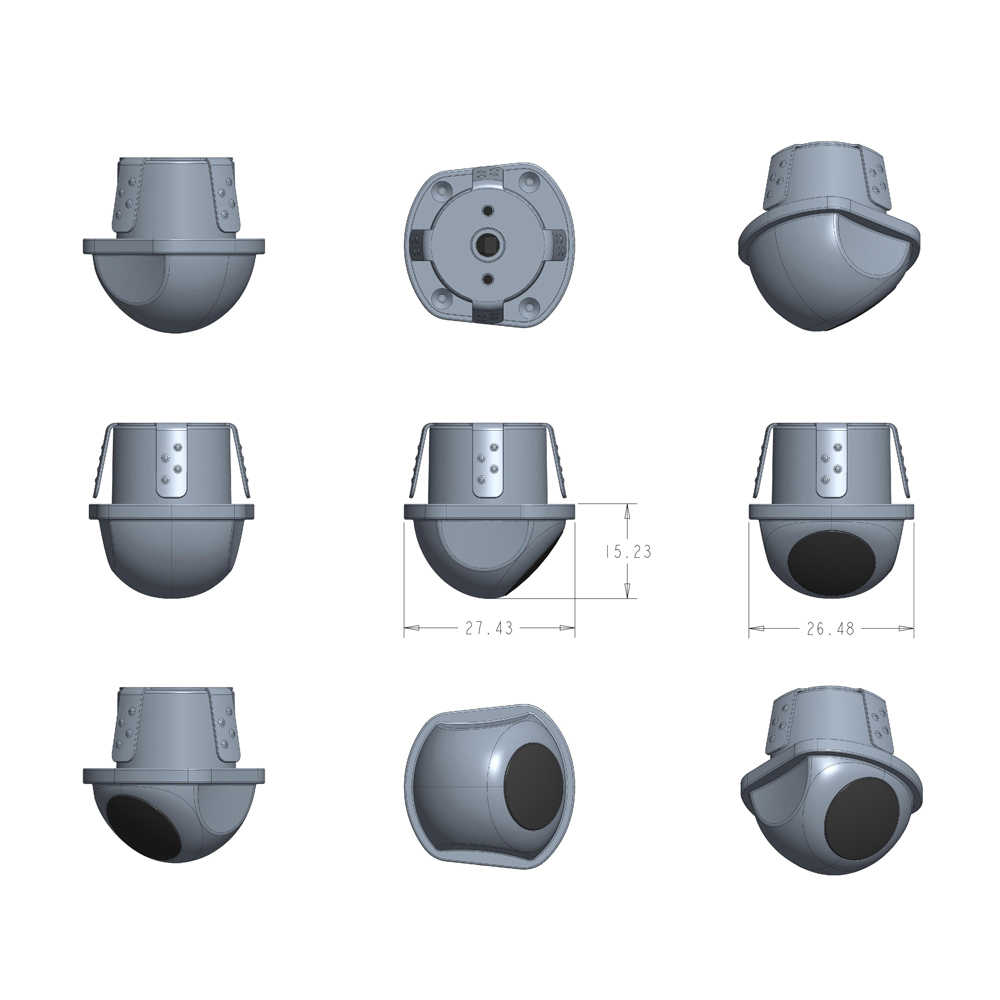

• Dimensions 27.5x28.2x28.5mm
• 21mm drill hole
• Operating temperature -40°C to +75°C
• Storage temperature -60°C to 105°C
• E certified

APPROVALS
CE Directive of 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
FCC Part 15B Report No. STR12058092E-3

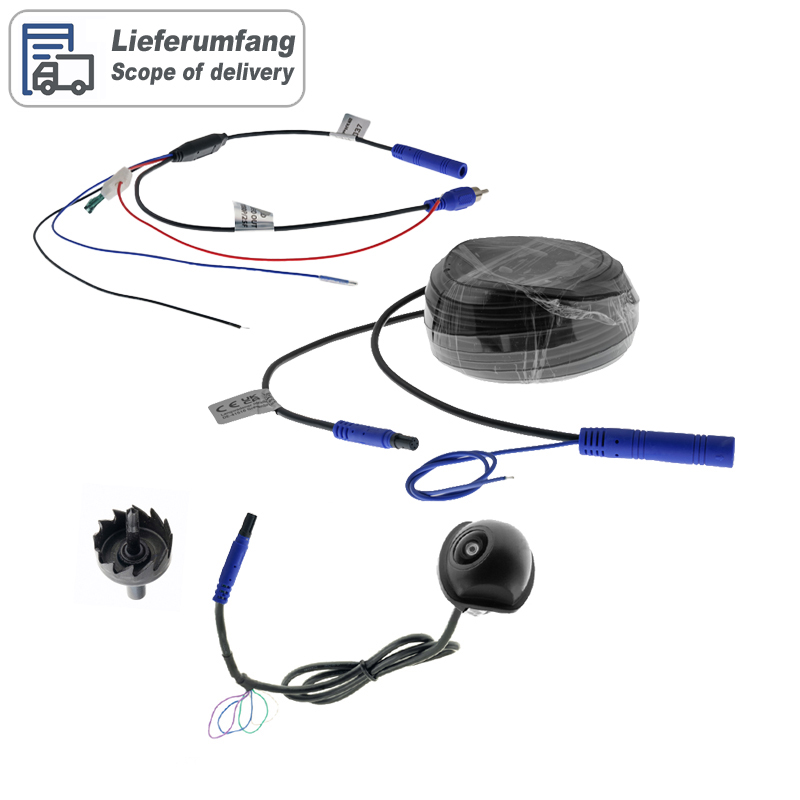

SCOPE OF DELIVERY

• Camera
• 8m extension cable AK1038
• Power supply AK1037
• Instruction manual

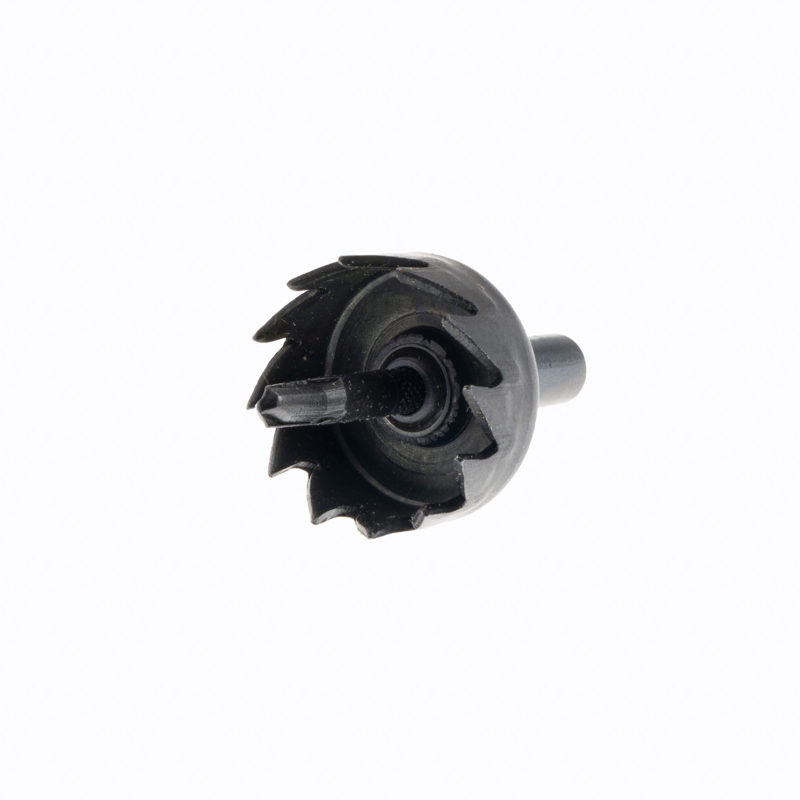

• 21mm drill bit

ORDERING NOTE
This camera is a high-resolution AHD camera with 1080P resolution and 25 frames per second. This camera can only be connected to compatible monitors, car stereos, or interfaces. If the camera input on your monitor can only display a video signal in CVBS, FBAS, or NTSC, this AHD camera is unsuitable. Please use the identical CVBS camera with an NTSC video signal.

OTHER SEARCH TERMS
KC403-50, kc403-50

IMPORTANT INSTALLATION INSTRUCTIONS
The camera head is waterproof according to DIN protection class IP69K and does not require additional sealing during installation. The camera lens is made of glass and is fragile. All metal parts are made of stainless steel. Stainless steel is rust-proof because it has a protective chromium oxide layer. However, this layer can be damaged or degraded under certain conditions, which can lead to the formation of rust.
