Caraudio-Systems V6-MIB - v.LOGiC 4 Kamera Interface, VW/AUDI/PORSCHE mit MIB

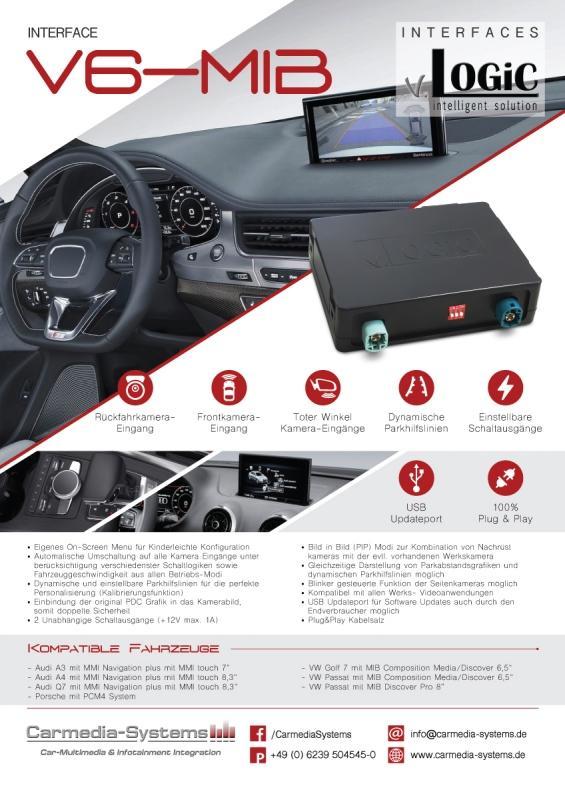

V6-MIB - v.LOGiC camera interface (front & rear camera & 2 side camera inputs) incl. Dynamic parking lines suitable for VW / AUDI / PORSCHE MIB systems, P & P

The v.LOGiC camera interface allows the connection of a reversing camera and a front camera to the factory navigation system of the vehicle manufacturer. In addition, the interface offers 2-sided camera inputs.

It is automatically switched from all operating modes to the existing factory and retrofit cameras according to demand and automatically switched back to the previous operating state after the end of the shunting process.

product features

• Picture-in-picture (PIP) modes for the combination of retrofit camera image (s) and factory
• Dynamic parking guides with calibration function
• Simultaneous use of image-in-picture factory parking distance sensor display and
• dynamic parking guides
• Own on-screen display for setting changes
• Rear-view camera input
• Automatic switching to rear view camera input when inserting the
• Reverse gear from all modes of operation
• Front camera input
• Side camera inputs
• Side or front camera activation via turn signal function
• Manual switching to cameras possible
• 2 switching outputs (+ 12V max 1A), separately adjustable switching criteria (CAN, ignition,
• Camera, reverse gear)
• Compatible with all factory video applications
• USB update port for software updates by the end user

Compatible with AUDI, VW and PORSCHE vehicles with the following MIB versions:

• Audi A3 with MMI navigation plus with MMI touch 7 "
• Audi A4 with MMI navigation plus with MMI touch 8.3
• Audi Q7 with MMI navigation plus with MMI touch 8.3
• Porsche with PCM4 system
• VW Golf 7 with MIB Composition Media / Discover 6.5
• VW Passat with MIB Composition Media / Discover 6.5
• VW Passat with MIB Discover Pro 8 "

delivery

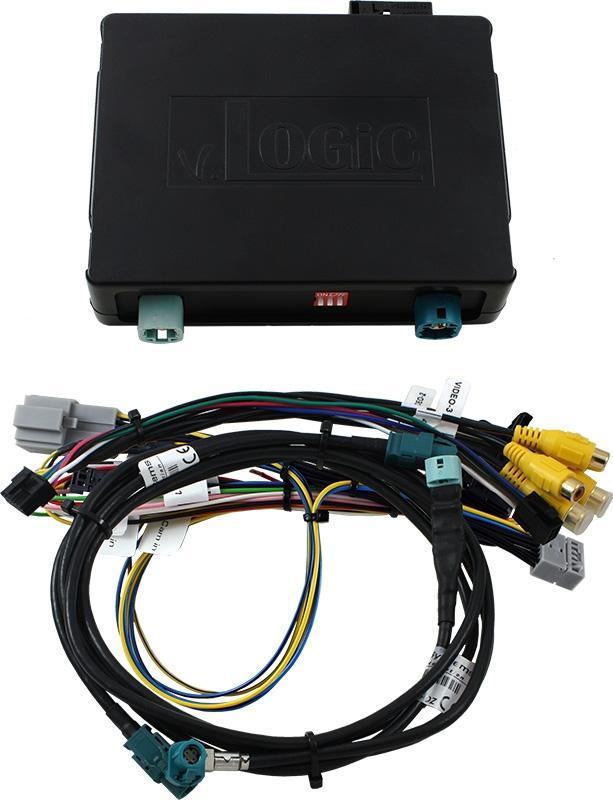

• v.LOGiC-Box V6C-M655
• Cable set V6C-MIB01
• Cable set V4C-VIDEO
• LVDS cables CAB-HSD-FF150 & CAB-HSD-MR060-OZ
• operation manual
