Dynavin D9-NBT-H Ultra 192GB - Android system for BMW 1/3/5/X3/X5

D9-NBT-H Ultra 192GB

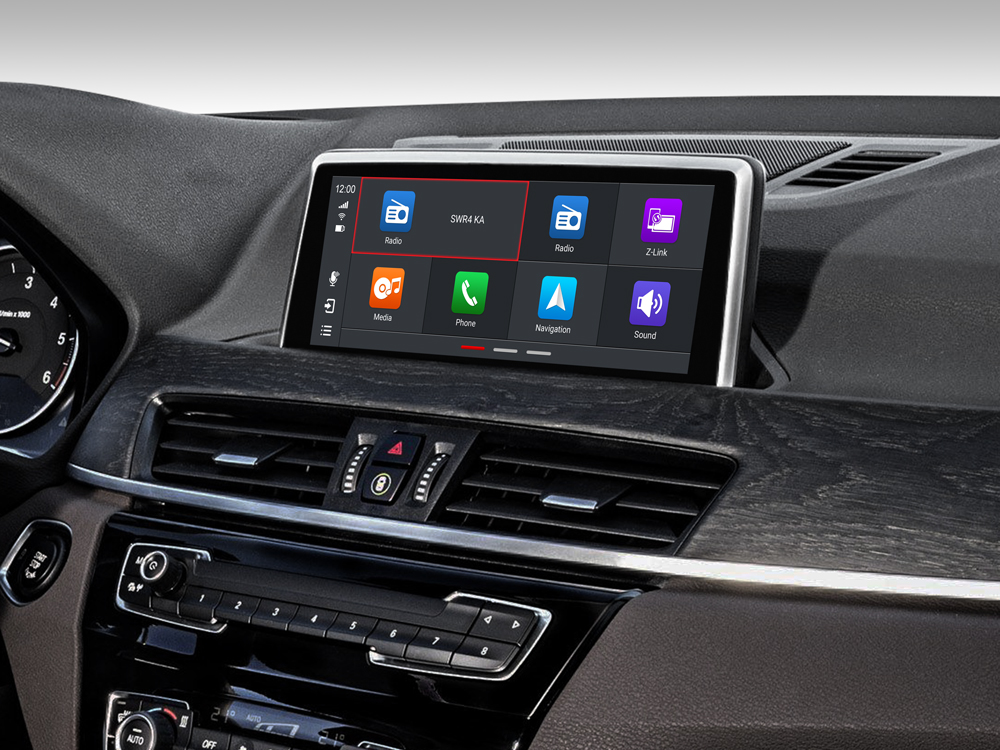

• Retains the original BMW system and allows easy access and control of CarPlay, Android Auto, navigation, DAB+, and all third-party apps via the iDrive control panel.
• Includes a head-up display that displays navigation information from Dynaway, Apple Maps with CarPlay, and Google Maps with Android Auto, as well as vehicle speed and Blitzer.de information.

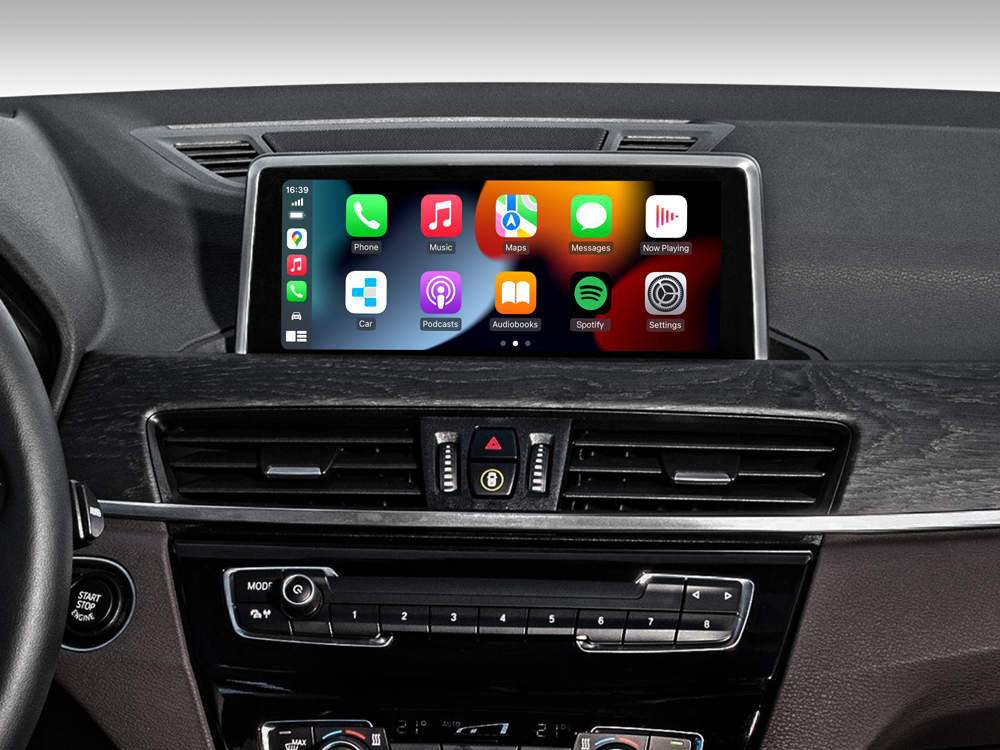

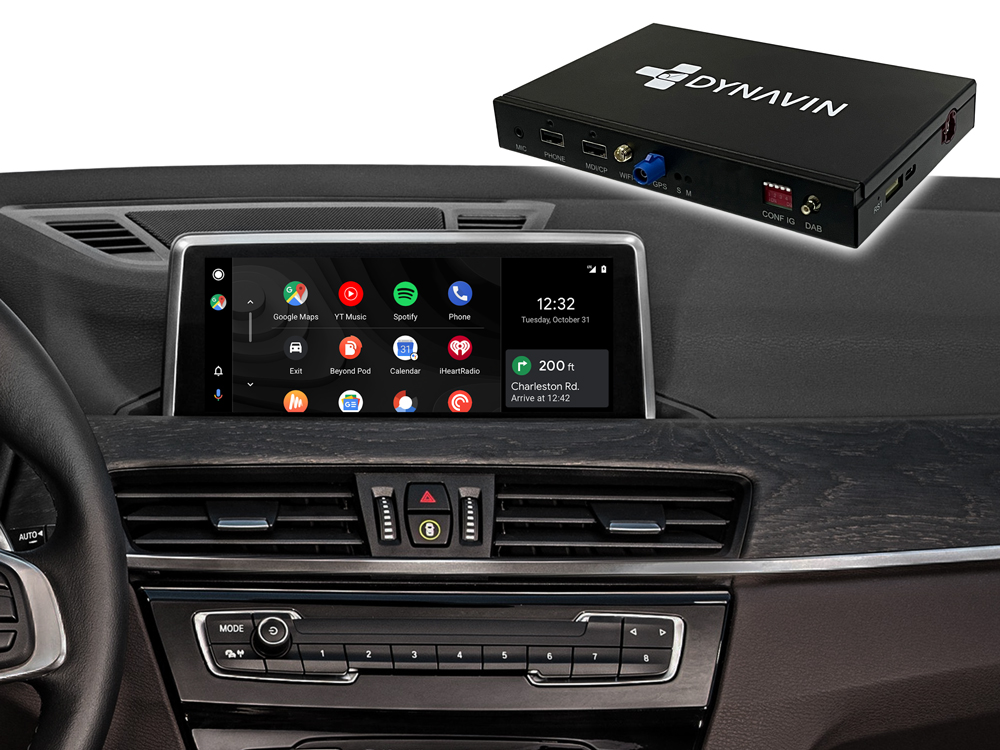

• Compatible with Apple CarPlay, Wireless CarPlay, Android Auto, Wireless Android Auto*, and Smartphone Mirroring.
• Google Play Store: Internet connection via integrated Wi-Fi module.
• Integration of the CANBUS solution for steering wheel controls.
• BT for audio streaming and hands-free calls via any smartphone (Android, Apple, etc.). External compact dual digital microphones are included.
• FM RDS tuner with DSP noise masking and 12 preset stations, integrated DAB. Supports automatic switching between DAB and FM (Seamless Blending).
• Integrated sound DSP processor with 16-band EQ and time correction.
• Multimedia player via USB port.
• Rear view camera ready: Compatible with factory and aftermarket rear view cameras.

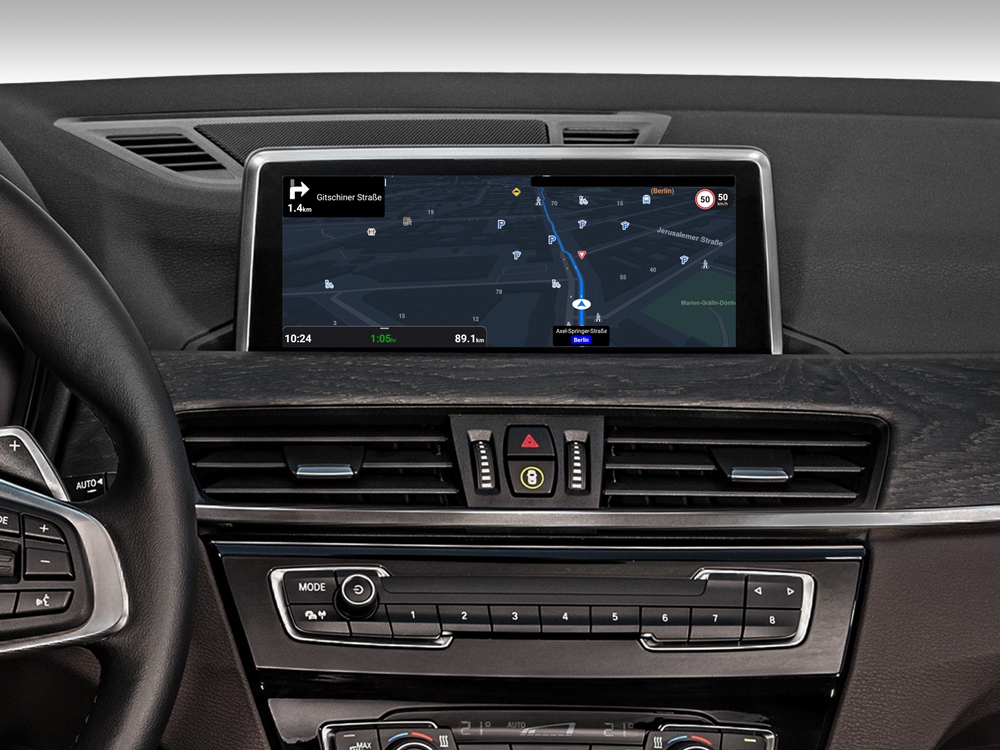

• Integrated GPS navigation.

* The Wireless Android Auto feature included in Z-Link does not guarantee compatibility with all Android phones.

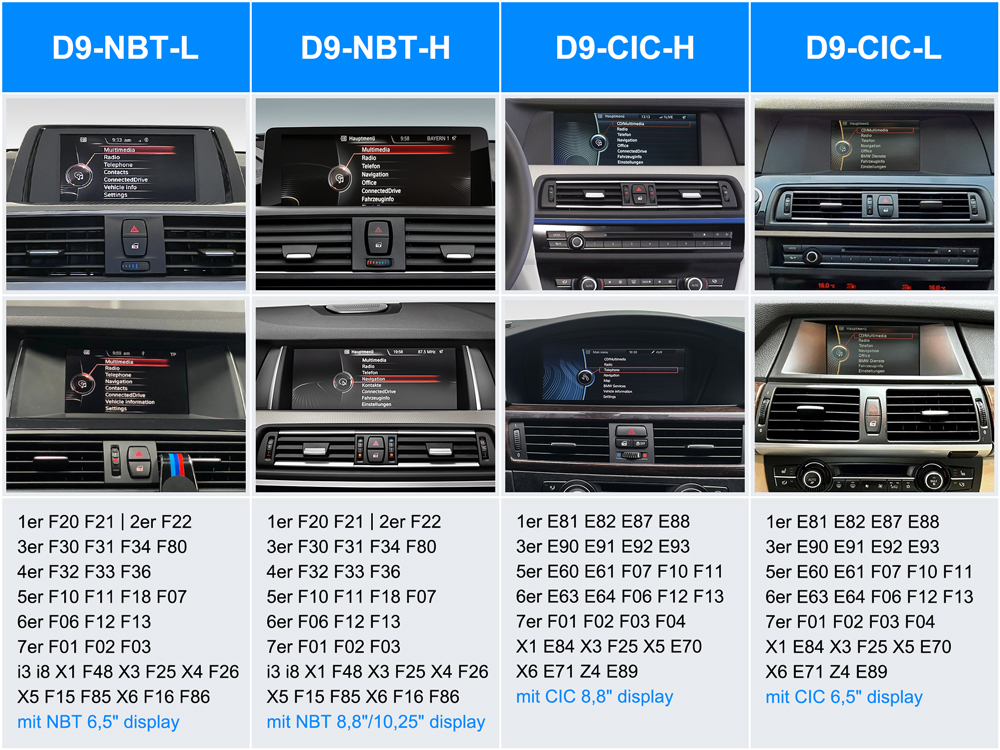

Fits

• 2012-2015 BMW 1-Series F20/F21 with 8.8-inch / 10.25-inch display
• 2013-2015 BMW 2-Series F22 with 8.8-inch / 10.25-inch display
• 2012-2015 BWM 3-Series F30/F31/F34 with 8.8-inch / 10.25-inch display
• 2014-2015 BWM 3-Series F80 with 8.8-inch / 10.25-inch display
• 2013-2015 BWM 4-Series F32/F33/F36 with 8.8-inch / 10.25-inch display
• from 2012 BWM 5-Series F10/F11/F18/F07 with 8.8-inch / 10.25-inch display
• 2013-2016 BWM 6-Series F06/F12/F13 with 8.8-inch / 10.25-inch display
• 2012-2015 BMW 7-Series F01/F02/F03 with 8.8-inch / 10.25-inch display
• 2013-2016 BMW I3 with 8.8-inch / 10.25-inch display
• 2014-2017 BMW X1 F48 with 8.8-inch / 10.25-inch display
• 2013-2016 BMW X3 F25 with 8.8-inch / 10.25-inch display
• 2013-2016 BMW X4 F26 with 8.8-inch / 10.25-inch display
• 2014-2016 BMW X5 F15/F85 with 8.8-inch / 10.25-inch display
• 2014-2016 BMW X6 F16/F86 with 8.8-inch / 10.25-inch display

Specifications

General

• Android 11 OS with 4 GB RAM and 64 GB or 192 GB ROM
• CANBUS integration
• Menu language: English / German / French / Spanish / Portuguese / Dutch / Italian / Polish / Danish / Czech / Finnish
• Compatible with AHD / NTSC / PAL Camera Inputs
• Camera Guide Line Adjustment
• Rear View Camera Display Automatic / Fast Boot
• 16 Band EQ
• Firmware Upgradeable
• Compatible with Start-Stop System

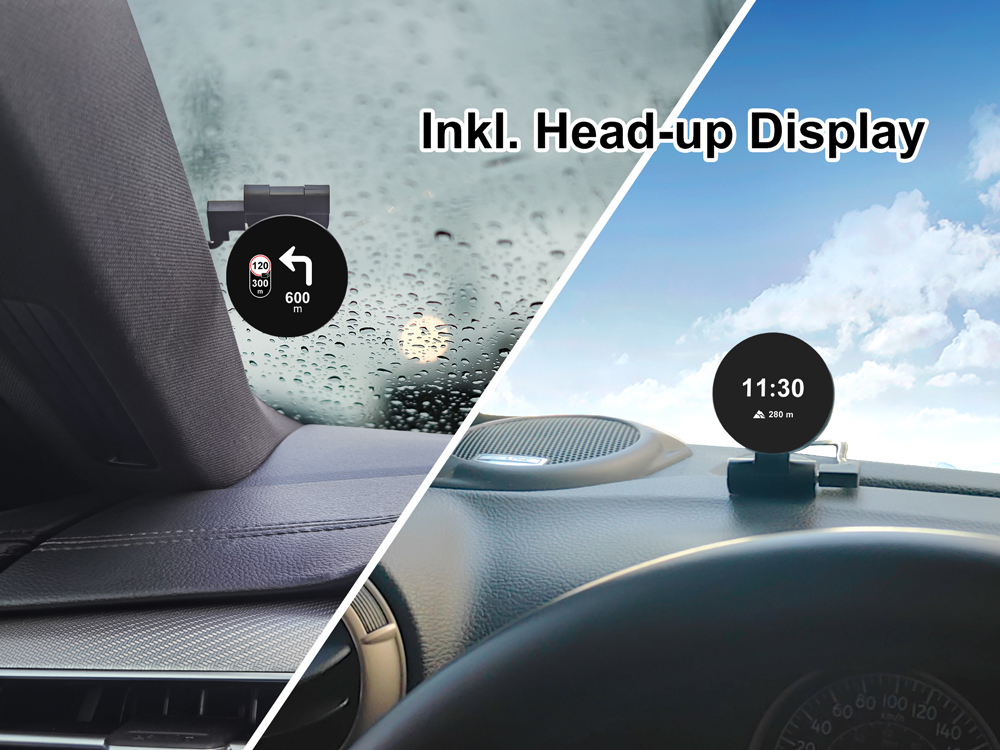

Head-up Display

• Display: 1.4-inch LCD
• Supports display of time, date, altitude, navigation information from Dynaway, Apple Maps with CarPlay and Google Maps with Android Auto, as well as vehicle speed and Blitzer.de information

Z-Link

• Compatible with Apple CarPlay, Wireless CarPlay, Android Auto and Wireless Android Auto
• Compatible with Smartphone Mirroring
• * The software included in Z-Link The Wireless Android Auto feature does not guarantee compatibility with all Android phones.

Built-in BT

• Built-in BT module
• Specification standard: 3.0 and 2.1 + EDR
• -95dBm sensitivity, excellent anti-interference performance
• Supports low-power scanning function
• PBAP phone book synchronization with 1000 entries
• Hands-free calling with HFP
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Individual profile connection: Hands-free calling and music streaming
• Phone book: Automatic phone book transfer
• Support for the dashboard display for caller alerts
• Support for the Storage of connection history from multiple mobile phones
• Display of device name
• Call log: dialed number / received calls / missed calls
• Voice volume adjustment: adjustable for incoming and outgoing calls
• Adjustable microphone gain
• GSM signal strength display
• Battery level display

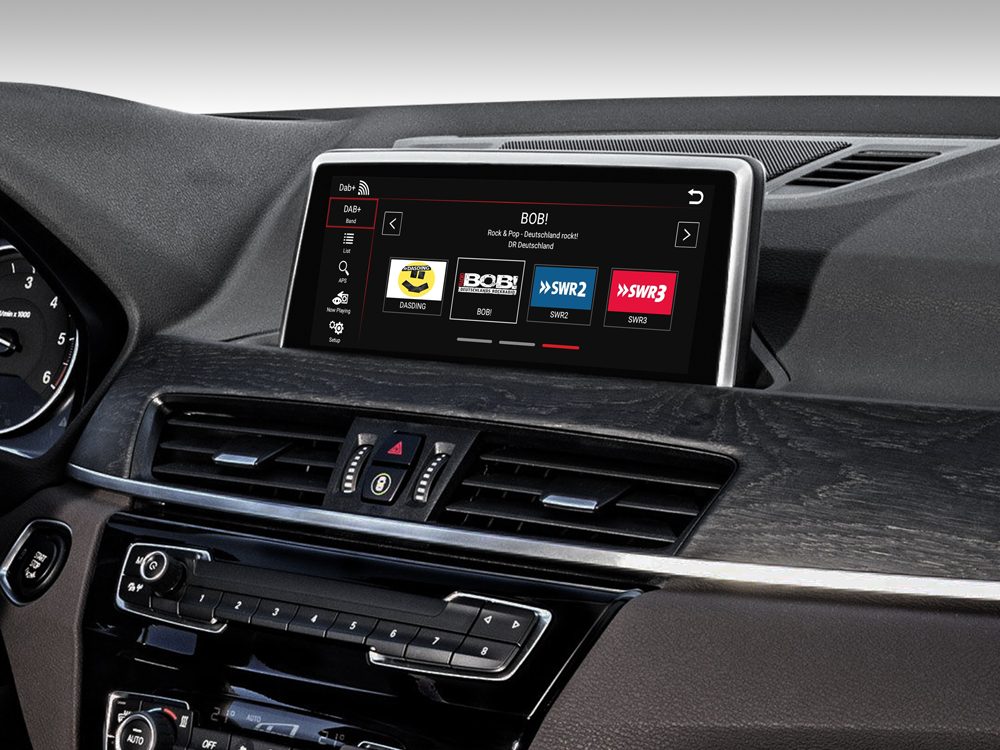

DAB+

• Integrated DAB/DAB+
• DAB+ to DAB+ Service Following
• SLS (Slideshow Service)
• DLS (Dynamic Labeling Service)
• Radio VIS (Station coverage on your radio display)
• Station memory: 12 Program memory locations
• Sound tuning
• Equalizer: Pop, Rock, Classical
• 16-band parametric equalizer

GPS

• GPS antenna included
• GPS reception frequency: 1575.42 ± 1 MHz
• GPS reception sensitivity: -165 dB max
• Positioning accuracy: 10 m, 2D RMS
• Data update rate: 1 Hz
• Reacquisition time: 0.1 s on average

USB

• USB specification: USB 2.0, support for Fast Charging
• Audio Playback (Supported Formats: APE/FLAC/M4A/MP3/WMA/WAV)
• Video Playback (Supported Formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
• Image Browsing (Supported Formats: JPG/BMP/PNG/JPEG)
• Playback Mode: Shuffle / Single Track Loop / All Loop / Folder Loop
• Image can be set as the home screen
• Synchronize Song Album Images
• Video Playback Speed x2/x4
• Save Playback Progress
• Support Dashboard Display of Songs/Composers
• Support Steering Wheel Control Song/volume level up/down
• Search by file/folder name
• Supports up to 256 GB USB storage device

A2DP

• Synchronize Bluetooth music with your mobile phone
• Display song title/lyrics/composer/singer
• Steering wheel can control song/volume up/down

Scope of delivery

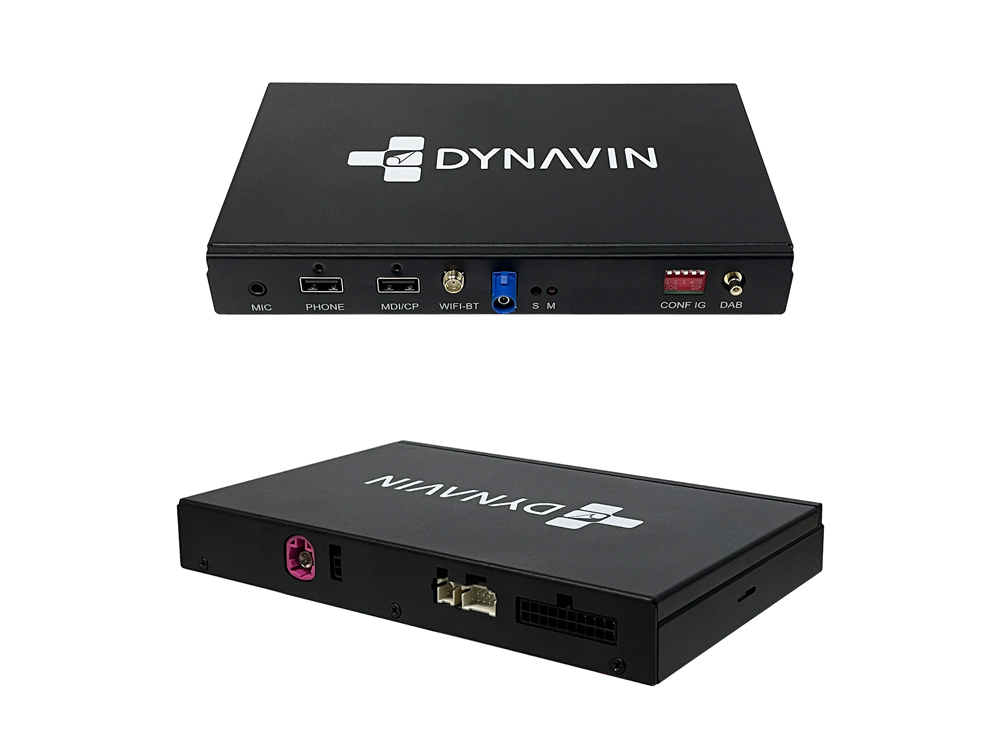

• Dynavin interface
• Head-up display
• Connection cable
• LVDS cable
• GPS antenna
• DAB antenna
• Extension cable for the Vehicle Battery Connection
• USB Extension Cable
• Dual Digital Microphones
• Rear View Camera Cable
• BT Wi-Fi ANT
• Tool for removing the bezel and pulling the cable through
• Reset Pin
