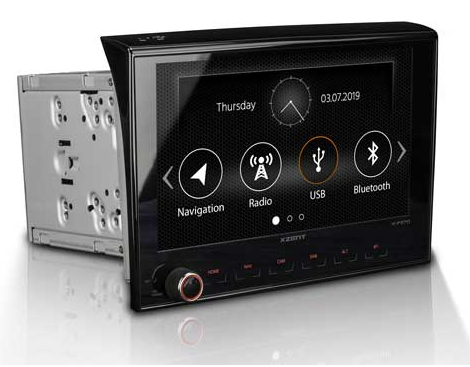

Xzent X-F270 - 2-DIN Infotainer für Ducato

Infotainer for Fiat Ducato - X-F270

Modern infotainment for your motorhome: The XZENT X-F270 is tailor-made for the FIAT Ducato III, Citroën Jumper II and
Peugeot Boxer II, the X-F270 integrates perfectly into the cockpits of these vehicle models and offers the latest navigation and
Entertainment features.

The large 8"/20.3 cm capacitive touch screen display, which is perfectly integrated into the dashboard, enables simple, intuitive and completely safe operation of the device.
The X-F270 is equipped with a DAB+ twin tuner for relaxed mobile digital radio reception of the highest quality.

The sensitive DAB+ module scores with its ease of use and functionality: DAB<>DAB Service Following, DLS text, MOT slideshow and the background scan, which keeps the dynamic station list always up to date.
In addition to an FM RDS tuner, the X-F270 is equipped with two USB 2.0 ports that can be used to play audio and video files and for connecting Apple iOS and Android mobile phones.

The X-F270's integrated AndroidLink and WebLink 2.0 functions, the smartphone's apps can be mirrored onto the infotainer display and
conveniently controlled via touchscreen. Thanks to echo-cancelling and noise suppression, the modern, easy-to-use Bluetooth 4.2 module impresses with its high voice quality.
The X-F270 has two camera inputs (CVBS) with switched power supply and has an automatic manoeuvre/switching function.
Switching function triggered by engaging reverse gear.
An optional navigation package is available for the X-F270, which specifically supplements the infotainer with a motorhome naviceiver: X-MAP27- MH1 with 1 year free map update. The navigation package includes maps of 47 EU countries, a P.O.I. CampingSchaf
Database (multilingual, lifetime license) with information on more than 20,000 campsites and a Premium P.O.I.
database with more than 6.5 million special destinations. The X-F270 has the DAB-TPEG function to display traffic events
display data (country-specific coverage) faster using Free TPEG. The NextGen navigation engine enables
the input of vehicle-specific profile data to calculate the route exactly.

Compatibility

• FIAT Ducato III - Modell: 250/251 -  2006 – 2011
• FIAT Ducato III - Modell: 250/251 - 2011 – 2014
• FIAT Ducato III - Modell: 250/251 (X290) - from 2014
• CITROËN Jumper II - Modell: 250/250D/250L - from2006
• PEUGEOT Boxer II - Modell: 250/251 - from 2006

• The motorhome must be equipped with an active antenna system (VHF/DAB) selected to suit the vehicle for correct operation of the VHF and DAB+Tuner modules.
• The vehicle must be approved with a factory radio preparation.

main features X-F270

functional highlights

• Vehicle-specific motorhome navigation system*1 for FIAT Ducato III, Citroën Jumper II and Peugeot Boxer II
• Capacitive, touch-sensitive 20.3 cm / 8" screen (1024 x 600 pixels)
• DAB+ Twin-Tuner with DAB<>DAB Service Following, MOT Slideshow, dynamic station list and DLS text
• Bluetooth 4.2 module with hands-free function and A2DP
• Control of up to two camera systems with automatic switching function
• Graphical user interface with 10 EU support Languages
• Illuminated sensor keys Control panels in "amber" colour
• Programmable interface for learning the keys of theMultifunction steering wheel
• IR remote control

BLUETOOTH

• Bluetooth 4.2 module with hands-free function
• Import of 1000 phone book contacts with 3 phone numbers each
• Memory resident phone book with instant access to synchronized contacts
• Telephone book contact Search function via keyboard input
• Internal Bluetooth microphone, additional input for external microphone*2

MULTIMEDIA + AUDIO

• DAB+ receiver with twin tuner
• FM RDS radio with 6 station presets and DSP Noise Reduction
• Two USB 2.0 ports on the rear panel for playback from files*3 from USB data carrier or Smartphone (≥ 700 mA charging current for Smartphones)
• AndroidLink for Android OS smartphones with dual protocol support
• Weblink 2.0*4 for Apple iOS and Android OS smartphones
• Made for iPod / iPhone
• A2DP BT music streaming with AVRCP 1.0
• 8-band graphic equalizer with 7 preset sound profiles
• 1 x HDMI input for accessories and compatible mobile devices
• 4 x 40 Watt amplifier

CONNECTIONS

• 4.2 Cinch preamplifier outputs (3 V)
• 2 x Cinch video input for camera signals (CVBS) with switched power supply
• 1 x DIN UKW Antenna input
• 1 x SMB DAB antenna input with 12 V power supply
• 1 x Cinch video output (CVBS, NTSC)
• 1 x Cinch A/V input with NTSC/PAL auto switching (CVBS)
• 1 x HDMI input
• 1 x 3.5 mm jack input for external Bluetooth microphone
• 1 x input for connecting the teachable steering wheel button interface
• 1 x IR-In input for the connection of an external CAN/SWC interfaces

*1The navigation software is not included in the scope of delivery
of the XZENT X-F270 device.
*2 External microphone included
*3 Among other supported A/V file formats: MP3, FLAC, AAC,
WMA, AVI, MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p, WMV,
XviD
*4 This feature may become available via a future software update if it is not available at the time of product launch

OPTIONAL MOBILE HOME NAVIGATION SOFTWARE FOR XZENT X-F270

With the optional X-MAP27-MH1 microSDHC navigation card, the X-F270 infotainer becomes a well-equipped
Naviceiver for motorhomes.

X-MAP27-MH1: KEY FEATURES

• Motorhome navigation software with maps for 47 countries: Western and Eastern Europe, Great Britain, Turkey, Ukraine, Belarus and Russia (on 16 GB microSDHC card)*1
• Preconfigured motorhome vehicle profiles with input of height, width, length, weight, trailer etc.
• Camping P.O.I. package with approx. 20,000 special destinations and detailed information (multilingual in DE / EN / NL / IT / FR)
• Europa Premium P.O.I. package with over 6.5 million special destinations
• Lane assistant, tunnel mode, auto-zoom for intersections and roundabouts, intelligent calculation of alternative routes etc.
• TPEG Service*2 with traffic information via DAB+ (coverage country-specific, free version)
• 1 year free map update

*1 The navigation software is not included in the scope of delivery of the XZENT X-F270 device.
*2 This function may be available via a future software update if it is not available at the time of product introduction.
