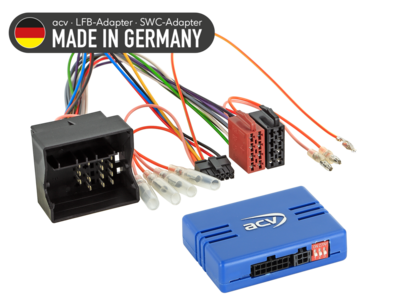

ACV 42a-1120-001 - LFB for Ford Focus/C-Max/Mondeo/S-Max/Galaxy/Kuga

Steering wheel remote control adapter Ford

Keep the original steering wheel remote control functions when replacing the factory radio with an aftermarket radio.
Depending on the vehicle equipment and the range of functions and software of the aftermarket device, individual operating functions may be omitted or replaced by other functions.
Compare the adapter plugs shown with those in your vehicle and make sure that they fit visually and technically.
Please also check whether one of the specified original factory radios was installed in your vehicle.
Before final assembly, check vehicle functions, vehicle settings and steering wheel remote control for functionality.

Suitable for the following vehicles:

• Ford Galaxy II (WA6) 03/2006 - 04/2010
• Ford Galaxy II (WA6)05/2010 -05/2015

• Ford Kuga (DM2) 06/2008 - 12/2012*
• Ford Mondeo III (B4Y/B5Y/BWY) 06/2003 - 04/2005*
• Ford Mondeo III (B4Y/B5Y/BWY)05/2005 - 06/2007 *
• Ford Mondeo IV (BA7) 06/2007 - 10/2010*
• Ford Mondeo IV (BA7). 11/2010 - 08/2014*
• Ford S-Max (WA6) 06/2006 - 04/2010*
• For d S-Max (WA6) 05/2010 - 05/2015*

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in terms of functions.

• pink: +12V ignition terminal 15 1.5A max.
• orange: +12V lighting terminal 58 0.1A max.
• white: +12V reversing signal 1.5A max.
• yellow/green yellow/red: speed signal
• Steering wheel remote control

*Vehicles with PDC > Functional test without OEM device
