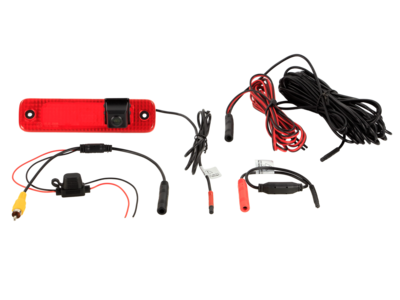

ACV 771000-6075 - Rear view camera for Ford Transit 2006-2014

Reversing camera

• Ford Transit New Line (FDF6) 07/2006 - 02/2008
• Ford Transit Estate (FDE6) 07/2006 - 03/2014
• Ford Transit Tourneo (FSE6) 07/2006 - 03/2014
• Ford Transit Euroline (FZE6) 07/2006 - 03/2014
• Ford Transit Nugget (FBE6) 07/2006 - 03/2014

To replace the OEM 3. Brake light
With orientation lines, adjustable viewing angle

Product features camera:

• Construction: plastic
• Color: black / red
• Extras : : Orientation lines via jumper, viewing angle adjustable
• Sensor type: 1/3" CMOS
• Image system: NTSC color
• Effective pixels: 976 x 592
• Lens: 2.1mm
< li>

Min.Lux: 0.1 Lux

• Resolution: 600 TV lines
• Viewing angle: horizontal 115° vertical 75°
• Dust and water resistant: IP68< /li>
• Connection: 4 pin mini connector (f) 5.2 mm
• Supply voltage: 12 volts DC + 10%< /li>
• Current consumption: 100mA max.
• Operating temperature range: -20°C - 70°C
• < span>Dimensions: see OEM brake light
• Outside: 157.5 mm x 40 mm
• Installation dimensions: 105.5 mm
• Hole spacing: 131 mm
• Hole diameter: Ø 5.3 mm

Connection cable on the camera:

• 4-pin mini-plug(f) 5.2 mm with 1 jumper

Cable set:

• 10 meter extension (m/f) incl. 300 cm power cable for connection to the reversing light and through-wiring to the connection cable on the end device
• 4-pin mini-socket(f) 10 mm and plug(m) 5.2 mm
• 20 cm power connection cable with fuse and RCA video connection cable
