ALPINE X903D-OC3

9” Touch Screen Navigation for Skoda Octavia 3 with TomTom maps, compatible with Apple CarPlay and Android Auto

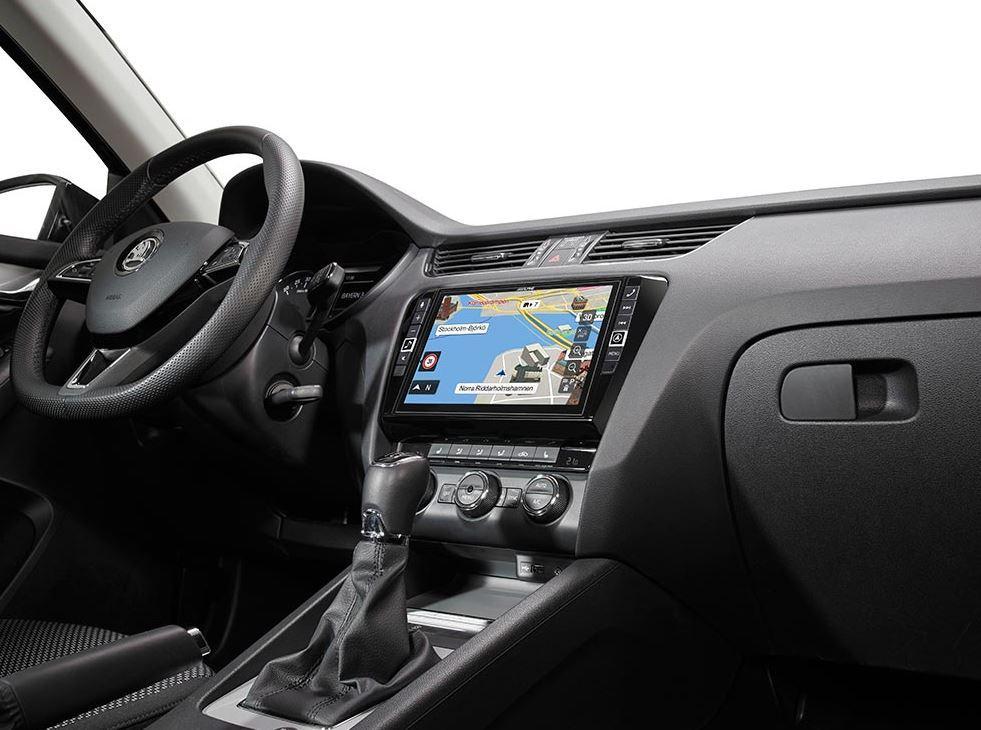

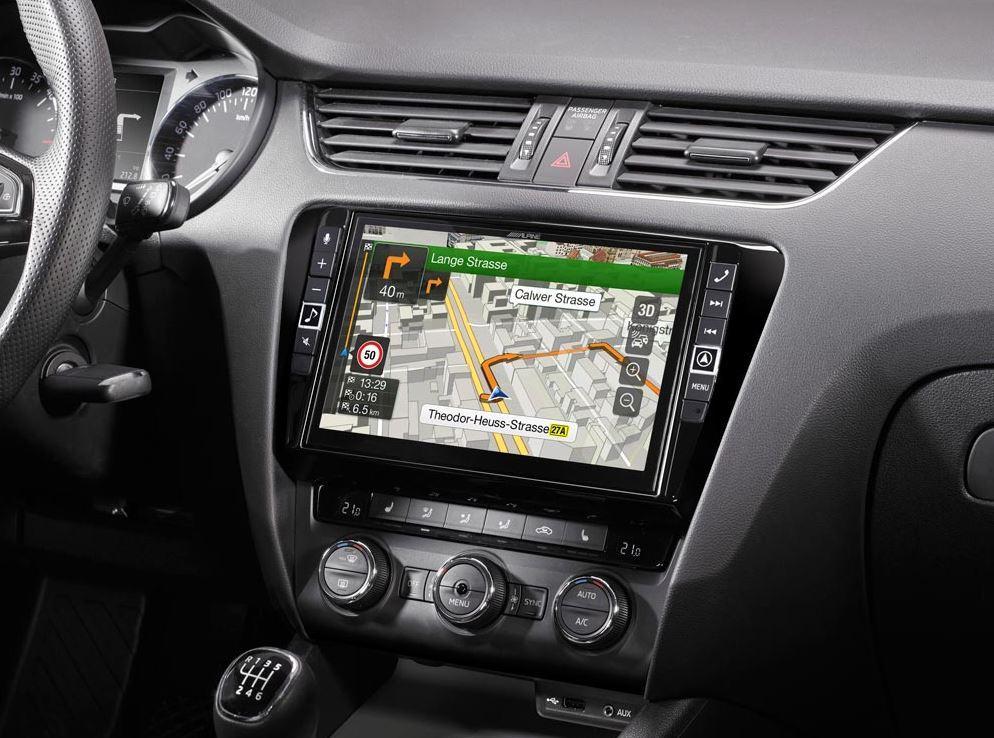

• The X903D-OC3 Alpine Style navigation system for the Skoda Octavia 3 (Model Code 5E, 2012 and newer): get perfect system integration for your Skoda and enjoy amazing infotainment features.

• The 3rd generation system for the Octavia features a much faster navigation CPU and larger system memory for smooth system operation. You can now also zoom in and out of the navigation map using finger pinch gestures.
• Only Alpine offers the biggest screen size possible (9-inch), as well as extensive media options including Apple CarPlay and Android Auto compatibility, and cutting edge iGo Primo Nextgen navigation with TomTom maps. You also get high-end sound quality and sound tuning options with this great system.
• Perfect vehicle integration with premium components.
• Performance without compromise.

DOMESTIC EQUIPMENTS

tuner

• Station memory: FM: 24 / MW: 6 / LW: 6
• Station memory: Automatic station memory
• Search function: Manual / Local / DX selection
• RDS function: AF, TA, TP, PTY, PI, NEWS, RADIO TEXT

DAB + tuner

• DAB+ Tuner Built-in
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Service Pre-set: 18 Pre-set Memory
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function
• Antenna Power Supply Selection

BLUETOOTH

• Built-in BLUETOOTH Module
  Wide Band Speech Technology
  HFP (Hands-Free Profile) Compatible
  Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
  Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
  Advanced BLUETOOTH Technology
  Connection: SSP (Simple Secure Pairing) Supported
  Individual Profile Connection Hands Free Phone and Music Streaming
  Phone Book: Phone Book Synchronization
  Speed Dial: 4 Pre-set Memory (per phone)
  Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
  Device Name Display
  Auto Answer
  Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
  Redial Function
  Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
  DTMF (Touch-Tone) Function
  Signal Strength Indicator
  Battery Level Indicator
  Menu Language Selection: 24 Languages
  Firmware Updatable

Made for iPod / iPhone

• Compatibility for iPod/iPhone: compatible with all models except 1st and 2nd generation iPhone
• Connection: KCU-471i Required (Sold separately)
• Music Playback
• Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
• Alphabet Search
• Artwork Display
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play: Song, Albums, All
• Repeat
• Battery Charging

Connectivity

• Works with Apple CarPlay (requires CarPlay enabled iPhone)
• Works with Android Auto (Requires Android Auto enabled smartphone)

Navigation Functions

• Map Coverage: 48 Countries (Western and Eastern Europe)
• Menu Language: 29 Languages
• Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
• Advanced Address Search
• Post Code Search
• Free Form Search
• Partial Name Search
• Advanced POI Functions
• Smart Routes: Smart Routes using historic traffic patterns
• Advanced Route Planning
• Eco Route Search
• 7 Alternative Route Recommendation
• Advanced TMC Mode
• Map Display Mode: 2D Heading Up, 2D North Up, 3D
• 3D City Mode: 3D Building/Icon Display
• Elevation Map Display: 3D maps with elevation mode
• 3D Motorway Junction View: Junction View with Sign Post
• Drive Lane Suggestion
• Tunnel Mode
• Highway Mode
• Voice Guidance Mixing
• Text-to-Speech
• Direct Phone Call from POI data
• 3 Positioning Sensors: GPS / Glonass, Gyroscope, Vehicle Speed Pulse

USB port

• USB Connection: includes a special cable that connects the USB / AUX port
• USB Connection: USB Extension Cable Included
• Music Playback: MP4 compatible
• File / Folder Name Search
• Tag Info Search
• Folder Up / Down
• M.I.X. Random Play
• Repeat

Sound tuning

• BASS ENGINE Pro
• BASS ENGINE  SQ
• Subwoofer level adjustable
• Subwoofer phase selectable
• 2 V preamp output (connection cable KTX-PRE1 optional)
• Equalizer: Flat, Pop, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-Band Parametric Equalizer (Front / Rear Separated))
• 6-channel time correction
• Digital crossover
• Customizable sound settings by vehicle type
• MediaXpander HD
• Source volume customizable
• Download online sound settings
• Easy, step-by-step sound adjustment
• "Alpine TuneIt App" readout

General

• Output power: Max. Power 4x 50 W High Power Amplifier
• Integrated premium quality amplifier for excellent sound
• Display: 23 cm (9-inch) capacitive WVGA high resolution display
• White LED backlight
• 50/50 split screen: left / right position changeable
• Touch screen with slide function / pull and scroll function
• Customizable favorites screen
• 2 user profiles can be created
• High quality audiophile design
• Preamp: 3 PreOuts (2 V, front / rear / subwoofer) (connection cable KTX-PRE1 optional)
• AUX-In: 1x A / V input (RCA connector)
• Preparation for infrared remote control
• Navigation Mix Announcement
• Direct camera connection & built-in multi-view camera control
• Camera connection with adjustable distance markers
• Rear view camera with immediate start function (immediate display of rear view camera at system start)
• Simple Mode & Info Mode Display
• Visual EQ
• Live contrast adjustment
• Menu language: 24 languages ​​(for AV & Bluetooth), 29 languages ​​(navigation menu and voice prompts)
• time of day
• Automatic dimmer
• Anti-theft device with numeric code
• Firmware updatebar
• Connection for motor antenna
• Remote turn-on
• HDMI input & output (special Alpine HDMI connection cable required)
• HDMI expansion box KCX-630HD Ready
• Start-Stop Ready
• CAN-BUS connection port for steering wheel remote control included, ISO connection cable
• Compatible with optional DVD player: DVE-5300

map updates

• Online map updates via alpine.naviextras.com
• TomTom map data
• 3 years free map update

installation

• Includes headband, wiring harness and SWRC / display interface for full installation.

SPECIFICATIONS

screen

• Screen size: 23 cm (9-inch) capacitive WVGA display
• LCD Type: Transparent Type TN LCD
• Workstation: TFT Active Matrix
• Number of pixels: 1,152,000 pixels (800 x 3 x 480)
• Lighting system: White LED backlight
• Effective number of pixels: 99.99% or more
• Color system: NTSC, PAL

Maximum output power

• Max. Power: 4x 50 W

FM tuner

• Frequency range: 87.5 - 108.0 MHz
• Mono usage sensitivity: 8.1 dBf (0.7 μV / 75 ohms)
• 50 dB sensitivity: 12 dBf (1.1 μV / 75 ohms)
• Alternative channel selectivity: 80 dB
• Signal-to-noise ratio (S / N): 65 dB
• Stereo channel separation: 35 dB
• Simultaneous wave fluctuation: 2 dB

MW tuner

• Frequency range: 531 - 1.602 kHz
• Sensitivity (IEC standard): 25.1 μV / 28 dBf

LW Tuner

• Frequency range: 153 - 281 kHz
• Sensitivity (IEC standard): 31.6 μV / 30 dBf

USB

• USB requirements: USB 2.0
• Max. Current consumption: 1,500 mA (CDP support)
• USB class: playback from the device / mass storage
• File system: FAT 16/32
• MP3 decoding: MPEG-1/2 AUDIO Layer-3
• WMA decoding: Windows Media audio
• AAC decoding: ACC-LC format '' .m4a '' file
• Flac-decoding: Free Lossless Audio Codec flac / fla
• H.264 decoding: AVI / MP4 / MKV file with H.264 video codec and MP3 / AAC audio codec
• Number of channels: 2-channel (stereo)
• Frequency response: 5 - 20 kHz ± 1 dB * J e according Encodingsoftware and bit rate
• Total Harmonic Distortion - THD (at 1 kHz): 0.008%
• Dynamic range (at 1 kHz): 95 dB
• Signal-to-noise ratio: 100 dB
• Channel separation (at 1 kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible antenna included

BLUETOOTH

• BLUETOOTH  version: Bluetooth V3.0 + EDR
• Output power: +4 dBm max. (Performance class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• A2DP: (Advanced Audio Distribution Profile)
• AVRCP: (Audio / Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound tuning

• Subwoofer level adjustable: 0 to +15
• Subwoofer phase: 0 ° or 180 °
• BASS ENGINE SQ: 5 modes, level 0 to +6
• High pass filter (frequency): 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB / Oct.
• High pass filter (gain): -12 to 0 dB
• Low Pass Filter (Frequency): 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB / Oct.
• Low pass filter (gain): -12 to 0 dB
• Runtime correction: 0.0 to 336.6 cm (3.4 cm increments) or 0.0 - 9.9 ms (0.1 ms increments)
• Dual HD EQ - 9 Band Parametric Equalizer for Front + Rear
• Parametric equalizer (Band 1): 20 - 100 Hz
• Parametric equalizer (Band 2): 63 - 315 Hz
• Parametric equalizer (Band 3): 125 - 500 Hz
• Parametric equalizer (Band 4): 250 - 1 kHz
• Parametric equalizer (Band 5): 500 - 2 kHz
• Parametric equalizer (Band 6): 1k - 4kHz
• Parametric Equalizer (Band 7): 2k - 7.2kHz
• Parametric equalizer (Band 8): 5.8k - 12kHz
• Parametric equalizer (Band 9): 9k - 20kHz
• Parametric equalizer (gain): ± 14
• Parametric equalizer (bandwidth): 1, 2, 3
• Source volume: ± 14

HDMI

• Input format 720p / 480p / 480i / VGA
• Output format 480p

General

• Power supply: 14.4 V.DC (11-16 V permitted)
• Pre-amp output (without clipping): 2 V / 10 kOhm
• Maximum installation angle: 30 ° to the horizontal

Dimensions

• X903D-OC3: Suitable for Skoda Octavia 3
• Case dimensions (W x H x D) mm: 178 x 50 x 164 mm

Compatible vehicles

•  Skoda Octavia 3 (5E) 2013-2016  Interface APF-H100DY is required for cars with Canton Sound System
• Skoda Octavia 3 (5E) 2017-> not for cars with Columbus
