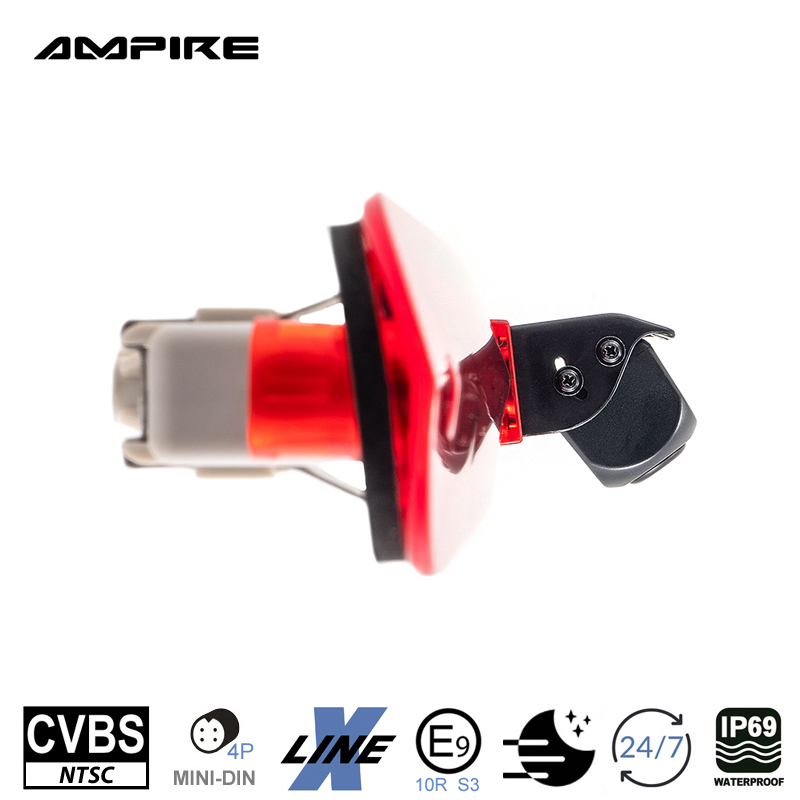

Ampire KVX-VITO-H - Camera (CVBS), Mercedes Vito (W447) with tailgate

Vehicle-specific CVBS (NTSC) reversing camera for the Mercedes-Benz Vito from 2016 (W447) with tailgate.

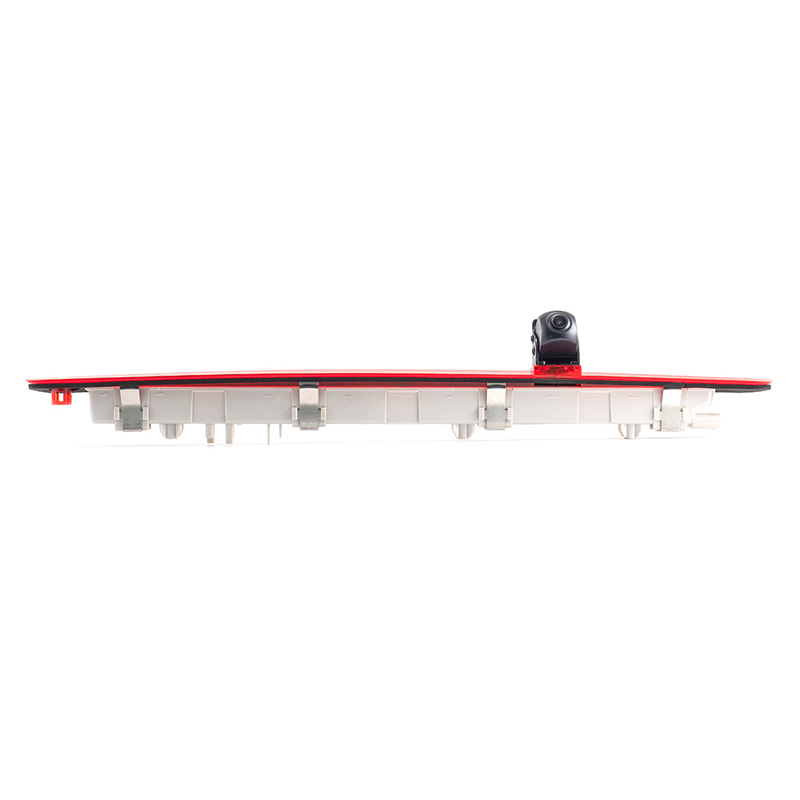

The KVX-VITO-H is simply replaced with the factory brake light glass.
The camera was deliberately not positioned in the middle of the brake light glass so that the camera can also be used when a load carrier is mounted on the tailgate.

Compatibility

• Mercedes-Benz Vito (from 2016) (W447) with tailgate

Technical data

•  Image display mirrored
•  Image sensor: CMD-III. 1/4" High performance Digital Super Clarity Image Sensor
•  Resolution 648x488 pixels
•  Viewing angle 170°
•  Image format: NTSC
•  580 line resolution
• IP69 waterproof
•  Operating voltage: 12/24 Volt DC
•  Power consumption: max. 150mA
•  Operating temperature: -30° to 70°C
•  Minimum illumination: 0 Lux
•  Cable length: 10 meters with MINI-DIN connectors
• E approval E9-10R-05.1652
•  CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
•  FCC approval ANSI C63.4-2003

Scope of delivery

•  Rear view camera
•  AK1035 power supply
•  AK1034 mini-DIN extension cable 10m

Important note

Depending on the roof structure and the trailer hitch installed on the vehicle, the trailer hitch may not be visible on the monitor.
This item does not fit vehicles with rear doors.
