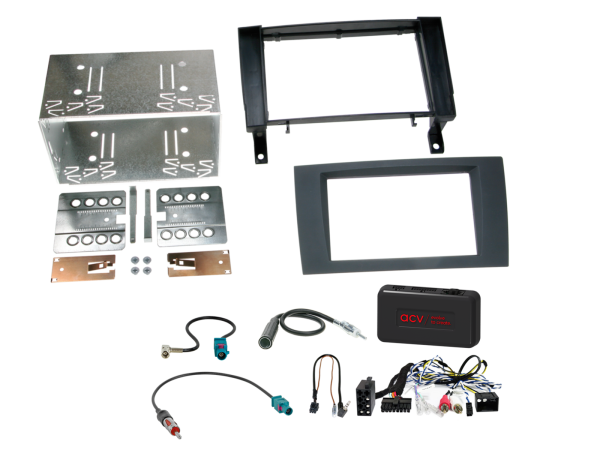

ACV 621190-24-2 - 2-DIN kit Mercedes SLK (R171)

2-DIN radio fascia with radio connection kit and steering wheel remote control for the Mercedes SLK

ACV Premium Quality

Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.

Installation kits contain all the components needed to replace an OEM unit.

Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit unit and restore vehicle functions are included.

Please note the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E-Call, or other driver assistance systems.

Before installation, check the OEM unit and the vehicle menu for various settings.

Depending on the vehicle's equipment, functionality, and software, individual operating functions may be omitted or replaced by other functions.

Compare the adapter connectors shown with those in your vehicle and ensure that they are visually and technically compatible.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final assembly, check the vehicle functions, vehicle settings, and steering wheel remote controls for functionality.

Note

• CAN Bus
• Connection: 2-pin power Mercedes
• Connector: 2-pin CAN bus distributor
• Connector: OEM sound system MOST > Cinch (m) red/white
• Vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 Navigation
• Vehicles with Harman Kardon OEM sound system*
• Vehicles with MOST25 OEM sound system*
• Vehicles with audio gateway
• Vehicles without Comand 2.0 / 2.5 OEM Navigation
• Vehicles without D2B Optical Bus System
• Cinch(m) > Front preamplifier output for aftermarket radio
• Fader function not supported
• Clock setting not supported:
• Code vehicles to Audio 20 OEM device if possible
• In individual cases, depending on the OEM system and the aftermarket radio, increased noise or a switching on or off noise may occur.
• Dipp switch settings for the aftermarket device manufacturer (see BDA)

For the following vehicles Suitable

• Mercedes SLK-Class (R171) 03/2004 - 03/2008
• Mercedes SLK-Class (R171) 04/2008 - 03/2011

Color: Rubber Touch rubberized surface seal, black

Radio display cutout: 173mm x 98.5mm

Optional

Storage compartment for 2-DIN radio panels, 2 pieces

General Installation Instructions

Verification:
1: Check all operating functions and vehicle adjustment functions of the OEM device.
2: Disassemble the OEM device with the power off.
3: Check all interface connections for correctness and continuity with the power off.

Connection and connection sequence:
1: Make the settings and hardware configuration of the interface with the power off.
2: Check the configuration of the radio connection cable.
3: Connect the radio connection cable according to the operating instructions for the retrofit device.
4: Connect all other connections according to the operating instructions for the retrofit device.
5: Connect the entire installation to the vehicle, making sure the power connection is connected last.
6: Configure the interface's software according to the instructions in the article text and the user manual.
7: Configure the retrofit device according to the operating instructions for the retrofit device. Steering wheel remote control/camera/HFS/antenna phantom power and others
8: Functional test of steering wheel remote control and vehicle

Changes to the hardware configuration of the interface and the radio connection cable:
1: Make changes with the power off
2: Connection after change, see above 5 to 8

In case of malfunction of the interface or the vehicle:
1: Revert to the OEM device
2: Operate the OEM device
3: Establish CAN bus rest
4: Check the hardware configuration of the interface
5: Connection after CAN bus rest, see above 5 to 8

Connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the operating instructions are for guidance and information purposes only for trained specialist personnel.

Further connections, changes to the cable configuration of the wiring harness or use of alternative connections or Connection extensions:
1: Connections and modifications may only be carried out by trained personnel.
2: Connections and modifications must be checked for any manufacturer approvals or manufacturer warranty conditions that may be affected by the changes.
3: Connections and modifications must be checked for functionality and accuracy by measuring and comparing them with the vehicle's wiring diagram.
4: Connections and modifications are made at your own risk and without a guarantee of functionality.
5: Connections and modifications are made at your own risk and without a guarantee of damage to the vehicle, the retrofit device, or the interface.
6: Modifications to the pre-assembled wiring harness may void the product's warranty.
