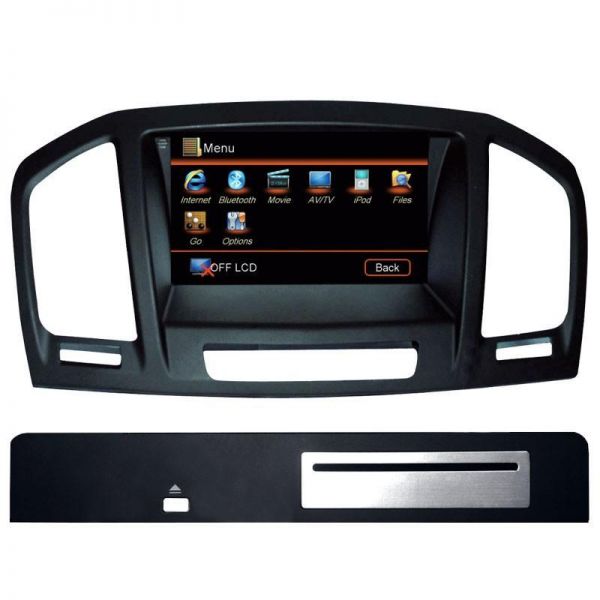

ESX VN709-OP-Insignia - Naviceiver für Opel

Vehicle-specific i9 Naviceiver with 17.8 cm (7 “) touchscreen for Opel Insignia

VN709 OP Insignia with iGO navigation software and external DVD drive for the glove compartment

Compatibility:

• Opel Insignia * (2008 - 2012)

* only with the CD400 CD radio installed at the factory. A device update is required for use with the CD300. Contact your dealer or ESX customer service. Vehicles with the factory-installed navigation system NAVI600 / NAVI900 / DVD500 / DVD800 are not compatible.

Characteristics:

• iGo-Primo navigation software with TMC on 8GB SD card, 46 countries including Turkey with point of interest display and search, TTS voice output, warnings, over 25 system and announcement languages. Latest Map Guarantee after registration at www.naviextras.com
• High-resolution 17.8 cm (7 “) touchscreen screen with 800 x 480 pixels
• Advanced i9 operating system based on Microsoft Windows CE 6
• 800 MHz ARM 11CPU, 300 MHz DSP, 4 GB iNand flash drive
• 256 MB DDR1 RAM, 256 MB NAND Flash RAM
• Bluetooth hands-free kit including audio streaming
• iPod / iPhone connection (Lightning® adapter may be required)
• Media playback (MP3 / WMA / MPEG4 / MPEG1 / 2 / WMV / AVI / DivX etc.),
• also supports 720P HD video playback (1280 * 720)
• DVD player (DVD, DVD-R / RW, DVD + R / RW, VCD, CD, CD-R / RW, MP3)
• File manager with open file structure, photo slideshow, compatible with MS Office applications
• MicroSD card slot and 2 x USB connection with copy function
• Integration of external applications (compatible with Windows CE 6)
• Date / time function, 12 or 24 hour display
• AV audio output stereo
• AV input (picture & sound)
• Video output
• Rear view camera connection (format PAL and NTSC + control signal)
• Factory radio support
• Support of the original info display (climate, radio, etc.)
• Support of 2D / 3D navigation applications with TMC Pro
• Support of an external TV or radio receiver (DVB-T, DAB, etc.)
• Support of 3G / UMTS sticks for mobile internet
• User-defined settings (individual background image, start logo, menu)
• Several design themes (skins) with different colors to choose from.
• Individually adjustable volume of the individual applications
• External DVD drive for the glove box
• With certificate of authenticity

Review

• The model VN709 OP-Astra was tested in Car & Hifi 2/2016.
• Quote: " The ESX VN709 OP-Astra is a clever solution for expanding the Opel CD300 and CD400 radios in the Astra J with touchscreen navigation, Bluetooth and modern media players. "
• Awarded as an INTEGRATION TIP
