- Order number: 02072V5-NBT-PNP
Product description
The v.LOGiC camera interface enables the connection of a rear view camera and a front camera to the vehicle manufacturer's factory navigation system.
It is automatically switched from all operating modes to the existing factory and retrofit cameras as required and automatically switched back to the previous operating state after the maneuvering process has ended.
Product features
Own on-screen display for setting changes
Rear view camera input
Automatic switching to rear-view camera input when engaging reverse gear from all operating modes
Front camera input
Manual switching to reversing camera possible (only for vehicles with PDC button)
Manual switching back and front camera possible (cancellation of the automatic switching) possible
2 switching outputs (+ 12V max. 1A), separately adjustable switching criteria (CAN, ignition, camera, reverse gear)
Picture-in-picture (PIP) modes for the combination of retrofit camera image (s) and factory parking distance sensor display
Compatible with all factory video applications (e.g. rear view camera, top view, night vision, DVD changer, TV tuner)
USB update port for software updates by the end user
compatibility
Compatible with BMW F-series with navigation system or radio and 6.5, 7, 8.8 or 10.25 on-board monitor with 4 + 2 pin HSD2 LVDS connection.

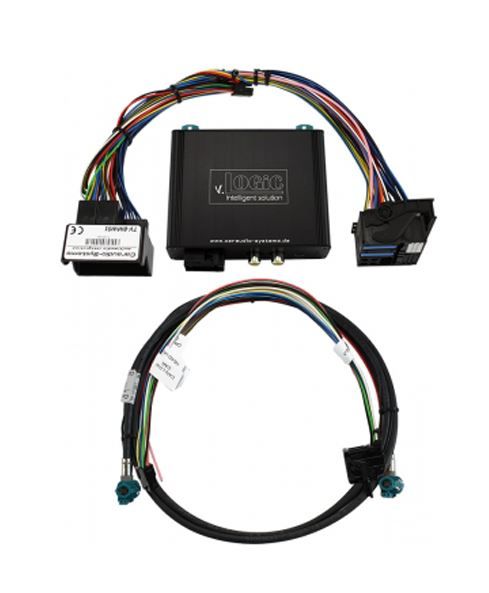

scope of delivery
v.LOGiC-Box V5C-M637
Cable set V5C-UNI01
Cable set TV-BMW01
LVDS line CAB-HSD2-RR148
operation manual
Technical specifications
Voltage working range: 10.5V to 14.8V
Quiescent current: <0.1mA
Working current: ~ 190mA
Power consumption: ~ 2.6W
Temperature range: -30 ° C to + 80 ° C
Weight: 208g
Dimensions: 103 x 30 x 105mm (W x H x D)
| quantity: | 1 piece |
| Product group: | sonstige Interfaces |
