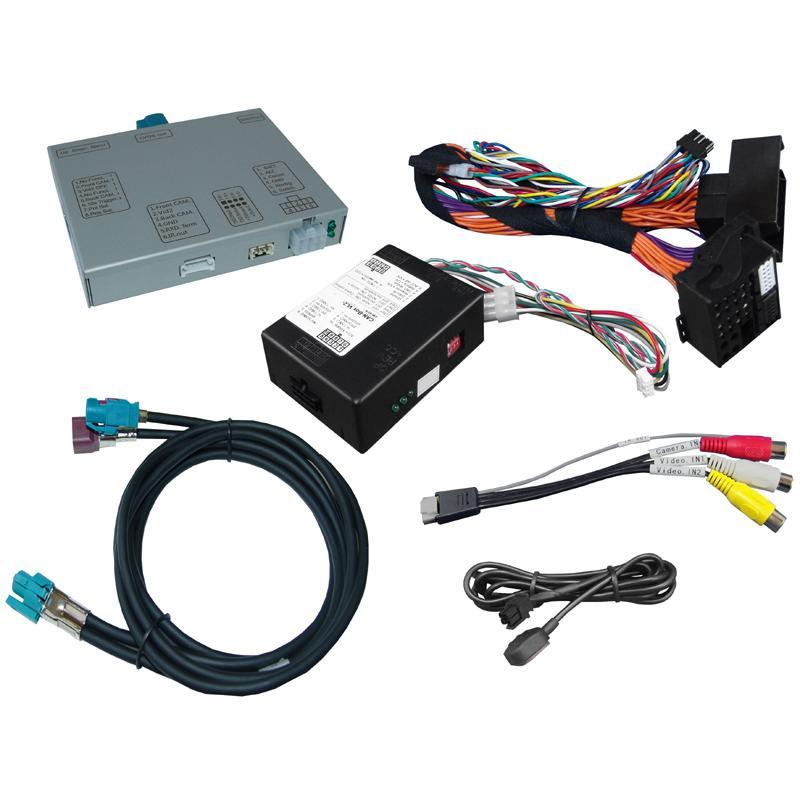

NavLinkz RL2-PC-HSD - Videoeinspeiser (kein Ton) für Citroen Peugeot SMEG oder SMEG+ Touch

The r.LiNK interface enables the feeding in of a reversing camera and any two video sources (eg USB player, DVB-T2 tuner, ...) to the vehicle manufacturer's factory infotainment system.

product features

Video feeder for factory infotainment systems
1 CVBS reversing camera video input
2 FBAS video inputs for retrofit devices (eg USB player, DVB-T2 tuner, ...)
Automatic switching to rear view camera input when engaging reverse gear
Distance lines for reversing camera can be activated (not available for all vehicles)
Picture release while driving (ONLY for fed-in video)
Video inputs PAL and NTSC compatible

Citroen Berlingo 2015-, SMEG / SMEG + / DS Connect Nav Touch Navigation
Citroen C4 2015-, SMEG / SMEG + / DS Connect Nav Touch Navigation
Citroen C4 Cactus 2014, SMEG / SMEG + / DS Connect Nav Touch Navigation
Citroen C4 Picasso 2014-2016, SMEG / SMEG + / DS Connect Nav Touch Navigation
Citroen DS3 2016, SMEG / SMEG + / DS Connect Nav Touch Navigation
Citroen DS4 2015, SMEG / SMEG + / DS Connect Nav Touch Navigation
Peugeot 208 to about 2016, SMEG or SMEG + Touch
Peugeot 2008 to about 2016, SMEG or SMEG + Touch
Peugeot 308 from 10/2013 to 07/2017, SMEG or SMEG + Touch
Peugeot 508 from approx. 09/2014, SMEG or SMEG + Touch

connections

• Image feed: 4-pin HSD
• Power and CAN: Plug & Play (Quadlock)
• Video inputs (2x): RCA female
• Rear view camera input: RCA female

Technical specifications

• Operating voltage 7 ~ 25V DC
• Quiescent current 40mA
• Current consumption 270mA
• Video input 0.7 ~ 1V
• Video input formats PAL / NTSC
• Operating temperature range -40 ° C to + 85 ° C
• Dimensions video box 112 x 22 x 113mm (W x H x D)
• Dimensions CAN box 89 x 27 x 65mm (W x H x D)
