Alpine X903D-DU - 2DIN Navigation

Alpine X903D-DU - 9 inch navigation system Fiat Ducato, Citroen Jumper and Peugeot Boxer - with rotary control

The latest system generation for Fiat Ducato 3, Peugeot Boxer 2 and Citroën Jumper 2 offers, among other things, a new, modern design, a swiveling display (X903D-DU2 only) and motorhome profiles for route calculation. The large screen allows the driver and front passenger to always have a good readability of the display, even in direct sunlight.

• 9 inch capacitive touch screen
• New design with knobs
• Navigation

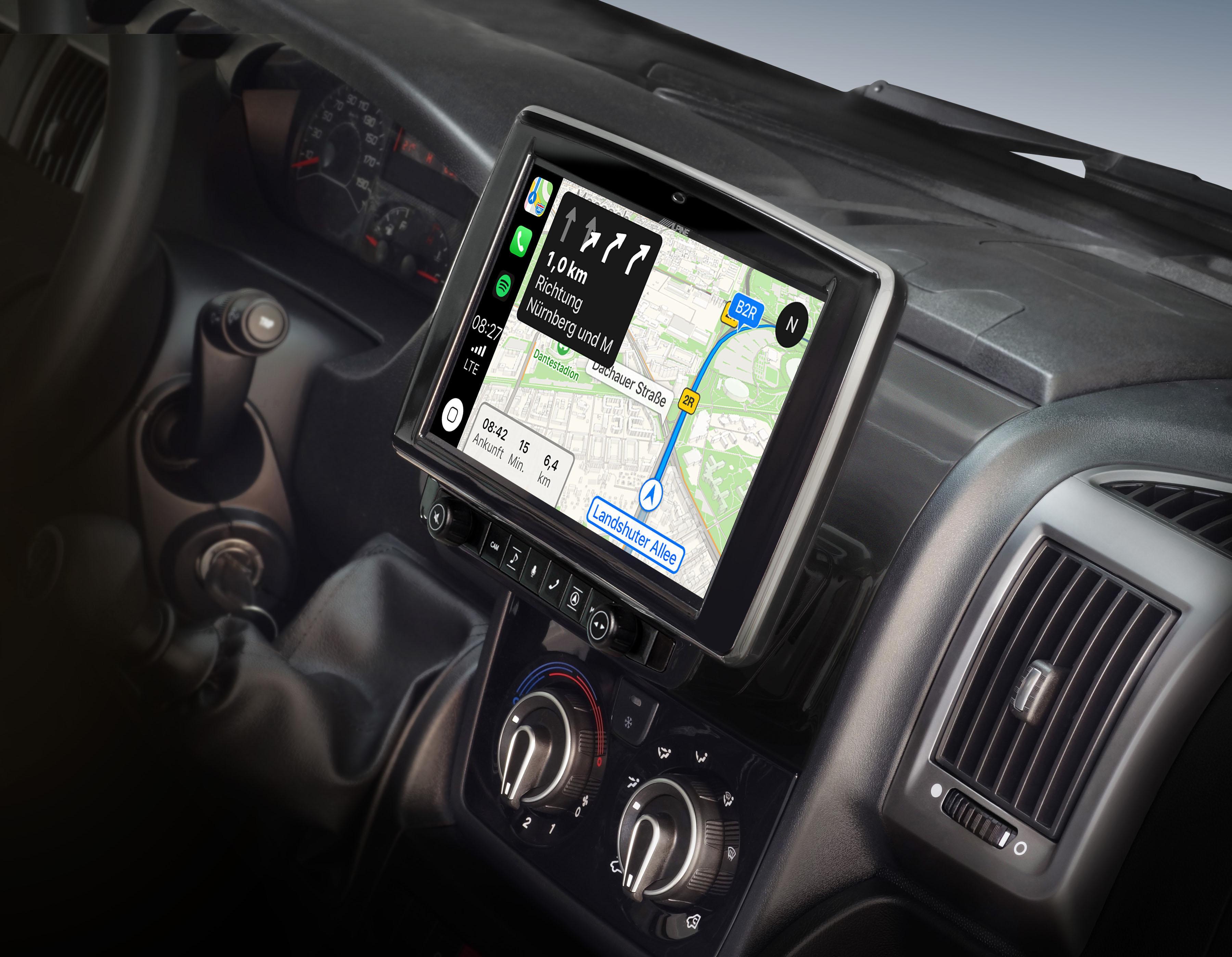

• Apple CarPlay

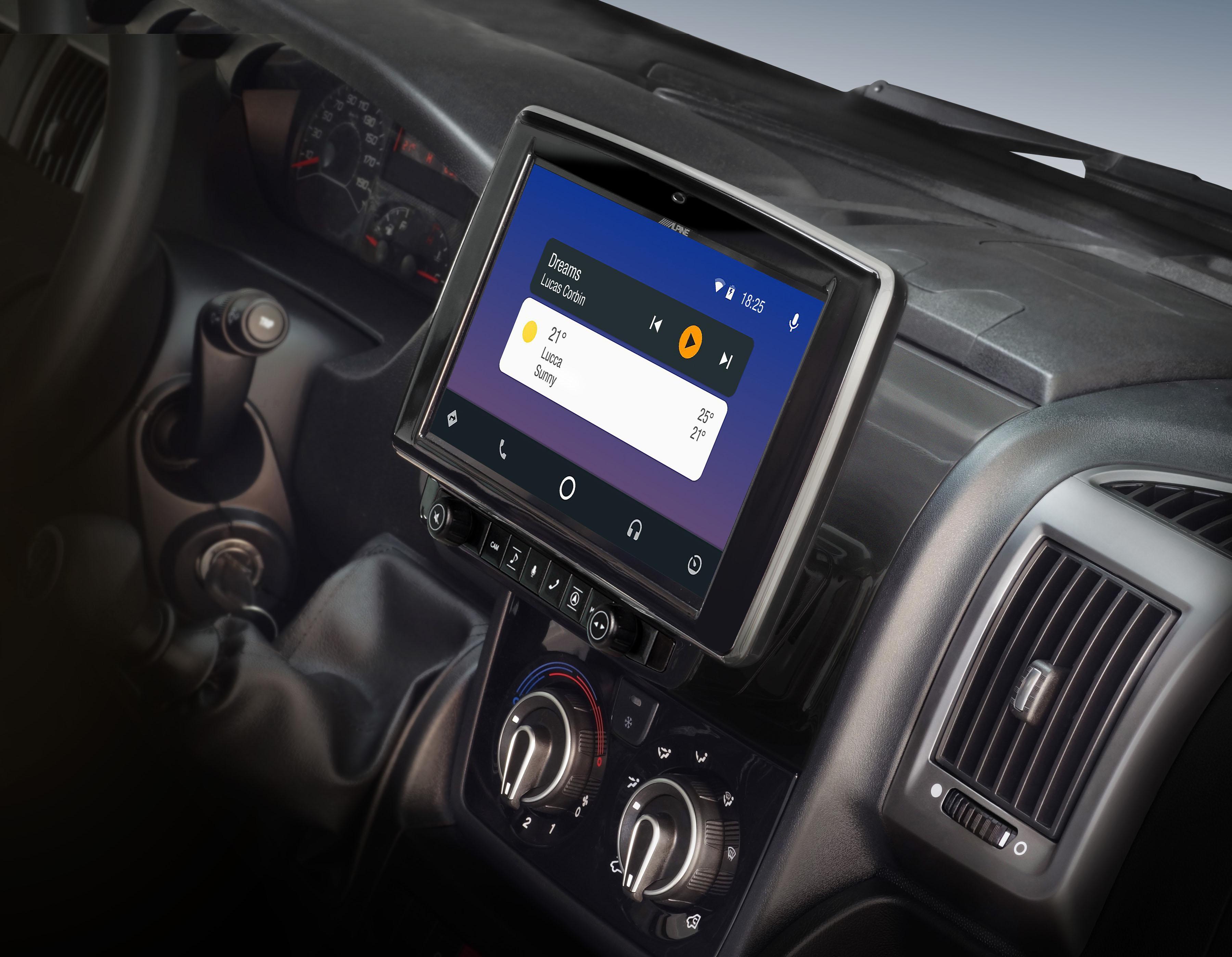

• Android Auto
• Bluetooth

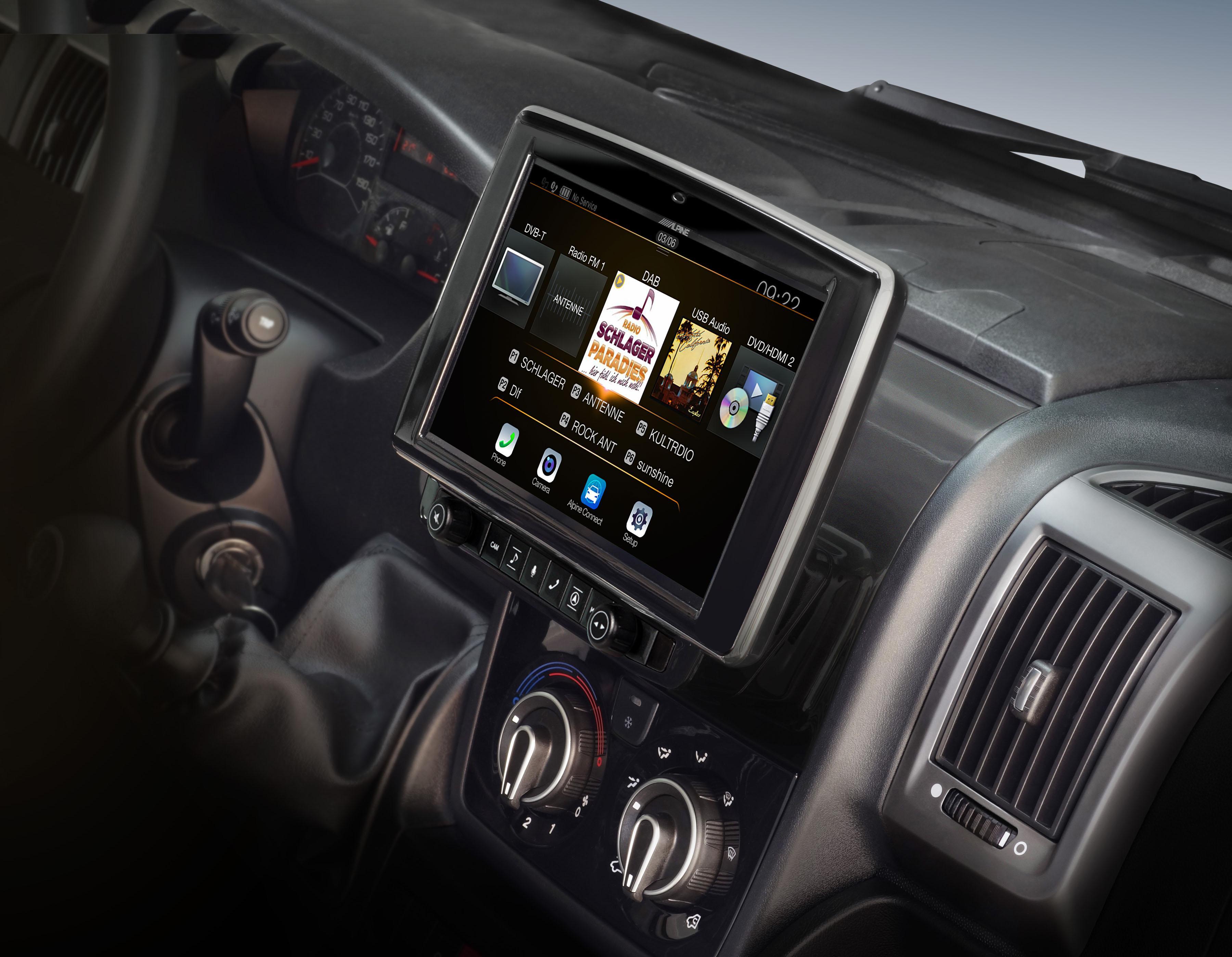

• DAB+
• HDMI / USB Ports
• Prepared for reversing camera
• Car-side integration of steering wheel remote control

New design with knobs

The modern design fits perfectly into the dashboard of your Fiat Ducato, Peugeot Boxer or Citroën Jumper. The new knobs simplify manual operation, especially while driving.

The X903D-DU was specially tailored for the Fiat Ducato 3 (Type 250/251), Citroen Jumper 2 and Peugeot Boxer 2. It is intended for these vehicles with 1-DIN radio or radio preparation. The X903D-DU can also be used with additional original spare parts in vehicles that are already equipped with a factory radio or navigation system. Installation is easy and requires no dashboard modifications.

Easily accessible from the driver's seat

Ease of access is an important factor, especially on long journeys when you often want to switch radio stations or change navigation settings. The Alpine Style System is a great in-dash tablet solution  , bringing the display much closer to the user. This allows the device to be operated easily without having to bend forward. In addition to the touch screen, there are extra large control knobs for easy access to the most important functions such as navigation, source selection, volume, telephone,  and much more.

Extra large 23cm (9-inch) touch screen

The heart of the system is a huge 23cm touchscreen - in fact the size is comparable to an Apple iPad® display. This makes it very easy to read navigation maps, numbers and text on the screen while driving. This contributes significantly to driving safety - because the distraction caused by a quick glance at the screen is significantly reduced. Characters and letters on the screen are very large and clear, making the product very user-friendly.

Steering wheel remote

If your Ducato is equipped with steering wheel buttons, you can continue to use them with the X903D-DU. The Alpine Style system is fully connected to the vehicle electronics and handles all steering wheel control commands such as volume, telephone, voice control and mute. This is another feature that contributes to comfort and driving safety in your motorhome.

Perfect design

The attractively designed bracket of the X903D-DU is painted in high-gloss black and features a dark chrome-colored trim frame that integrates perfectly with the Ducato dashboard. Thanks to the smart tablet design, the screen seems to float almost free-standing in the dashboard. The microphone for the Bluetooth hands-free system is integrated in the display housing.

In order for your  X903D-DU to integrate perfectly with the Ducato dashboard, the screen background and button lighting are preset to orange.

One Look Display

The innovative, divisible screen can show the driver the navigation map and at the same time e.g. B. Play video or music content on the other shared page. This gives you all the information you need at a glance. This function is particularly useful e.g. B. for longer trips.

Detailed features:

Screen:

• 23 cm (9-inch) capacitive WVGA display
• Customizable favorites screen
• Transparent Type TN LCD
• Touchscreen with slide function / drag and scroll function
• TFT Active Matrix
• 1,152,000 pixels (800x3x480)
• White LED backlight
• NTSC, PAL
• 50/50 Split Screen

Navigation features:

• 3 years of free map updates
• 48 countries (Western and Eastern Europe)
• 29 languages
• Voice guidance in 29 languages, 15 languages for Text-to-Speech (TTS)
• Advanced address search
• Postcode search
• Free search
• Search with word fragments
• Advanced POI functions
• Fast route calculation
• Extended route planning
• ECO routing
• 7 alternative routes to choose from
• Extended TMC mode
• Map display: 2D top view, 2D north-up, 3D
• 3D city maps: 3D building views
• Display of elevation profiles
• 3D motorway junctions: 3D display of motorway junctions
• Lane instructions
• Tunnel Mode
• Highway mode
• Navi Mix Mode
• Text to Speech
• Direct phone dialing from POI data
• Hybrid GPS sensor: GPS, gyro sensor, car speed pulse

Tuners:

• Station memory: FM: 24 / MW: 6 / LW: 6
• Automatic station memory
• Search function: manual / local / DX selection

DAB+ Tuner:

• DAB+/DMB support
• Slideshow Service
• Dynamic Label Service
• Automatic DAB+/FM switching (when signal is available)
• 18 program storage locations
• Phantom power selectable for DAB antenna

Bluetooth:

• Wide Band Speech Technology
• Hands-free function
• Music streaming A2DP compatible
• Music streaming control AVRCP version 1.5 compatible
• SSP (Secure Simple Pairing) support
• Automatic phone book transfer
• Hot Keys
• 5 different phones can be registered
• Device name display
• Redial function
• DTMF tone function
• Display of GSM signal strength
• Battery state of charge display
• 24 menu languages
• Firmware Updatable

Made for iPod & iPhone:

• Made for iPod touch 6 / 5, iPod nano 7, iPhone 6/6+ / SE / 5S/5C/5 / 4s
• Requires KCU-471i (sold separately)
• Possible choices: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
• Album cover display
• M.I.X. (shuffle)
• Repeat function
• Load function

Connectivity:

• Works with Apple CarPlay (CarPlay-enabled smartphone required)
• Works with Android Auto (Android Auto enabled smartphone required)

USB port:

• USB 2.0 / FAT 16/32
• USB port on the back (2m USB extension cable included)
• Music and video playback
• FLAC/MP3/WMA/AAC/AVI/MP4/MKV playback
• M.I.X. Shuffle
• Repeat function

Sound Tuning:

• BASS ENGINE™ Pro
• BASS ENGINE™ SQ
• Subwoofer level adjustable
• Subwoofer phase selectable
• 4 V preamp output (connection cable KTX-PRE1 optional)
• Equalizer
• Dual HD EQ (9-Band Parametric Equalizer (Front/Rear Separate))
• 6-channel runtime correction
• Customizable sound settings by vehicle type
• MediaXpander HD
• Source volume adjustable
• Easy, step-by-step sound customization
• Alpine TuneIt App Ready
