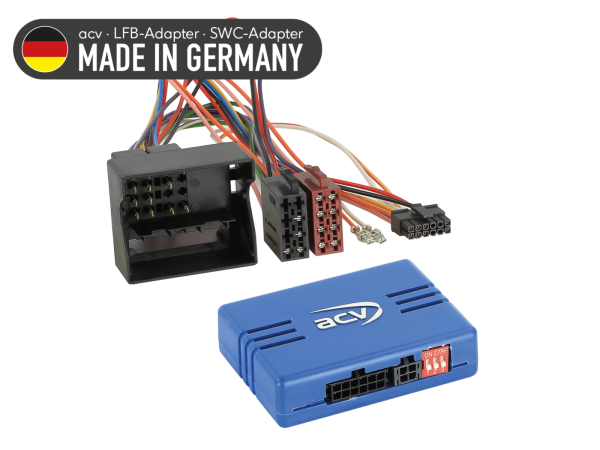

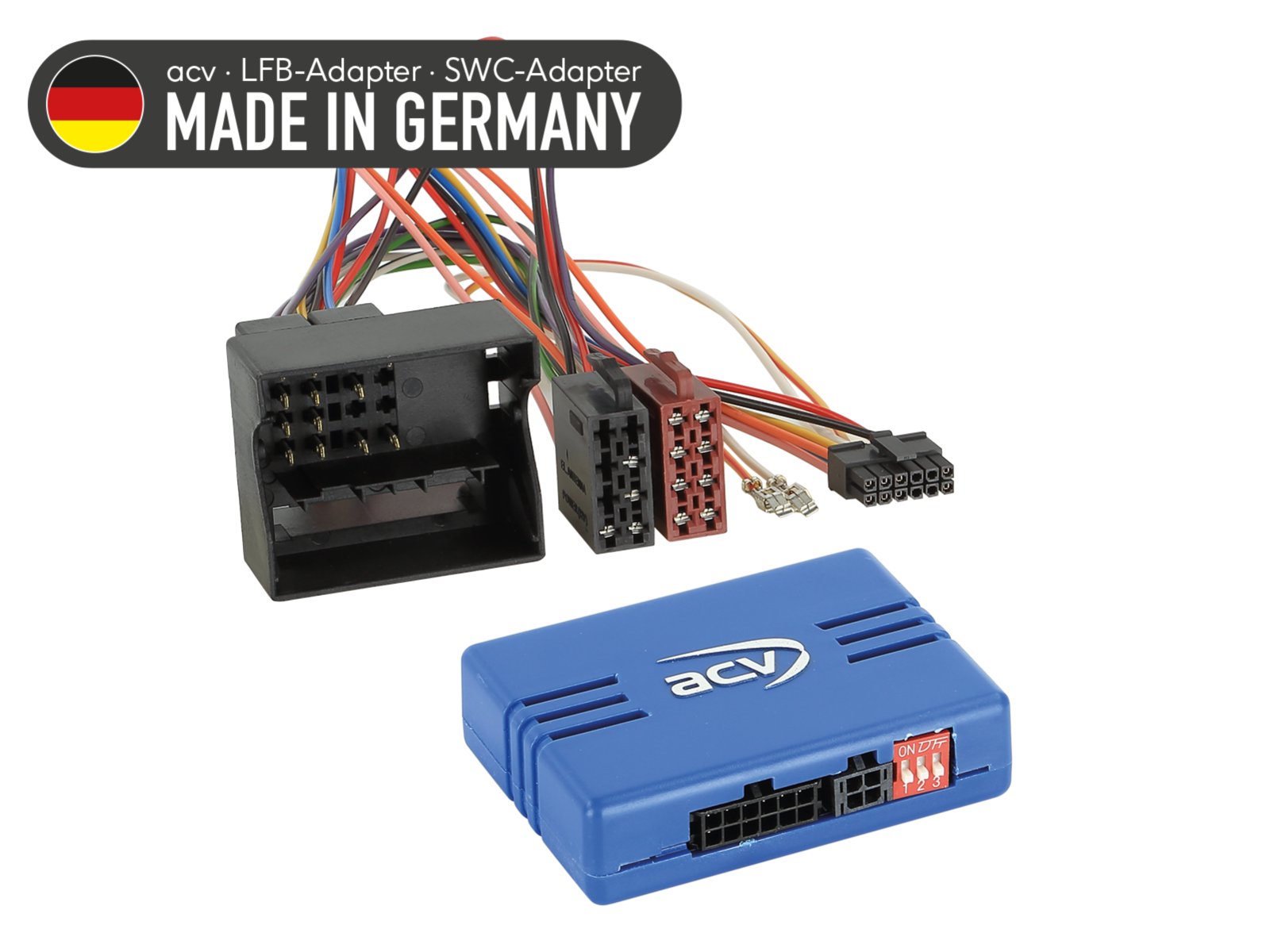

ACV 42a-1041-001 - LFB for Citroen/Fiat/Peugeot/Toyota

Steering wheel remote control adapter Citroen / Fiat / Peugeot / Toyota

Keep the original steering wheel remote control functions when replacing the factory radio with an aftermarket radio.
Depending on the vehicle equipment and the range of functions and software of the aftermarket device, individual operating functions may be omitted or replaced by other functions.

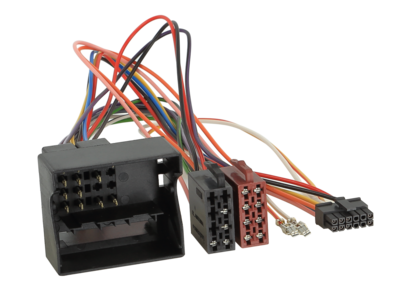

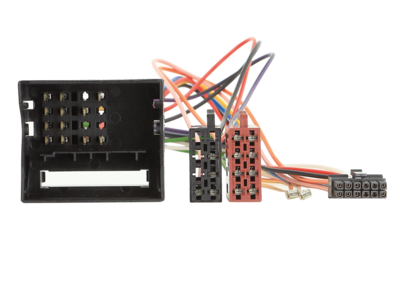

Compare the adapter plugs shown with those in your vehicle and make sure that they fit visually and technically.
Please also check whether one of the specified original factory radios was installed in your vehicle.
Before final assembly, check vehicle functions, vehicle settings and steering wheel remote control for functionality.

For the following vehicles suitable:

Citroen

• Citroën Berlingo (7) 06/2008 - 03/2012
• Citroën Berlingo (7) 04/2012 - 05 /2015
• Citroën Berlingo (7) 06/2015 - 06/2018
• Citroën C2 (J) 12/2004 - 12/2009
• Citroën C3 (F) 10/2005 - 01/2010
• Citroen C3 (S) 01/2010 - 03/2013
• Citroen C3 (S) 04/2013 - 01/2017
• Citroën C4 (L) 11/2004 - 08/2010
• Citroën C5 (D) 10/2004 - 04/2008
• Citro in C8 (E) 01/2008 - 07/2012
• Citroën C8 (E) 07/2012 - 06/2014
• Citroën DS3 (S) 03/2010 - 07/2014
• Citroen Jumpy (V) 02/2007 - 05/2016

• Citroen Jumpy (V) 09/2016 - 01/2024*
• Citroen Spacetourer (V) 03/2016 - 03/2024*

Fiat

• Fiat Scudo (ZAF 270) 02/2007 - 07/2016

Opel

• Opel Vivaro C (V) 09/2019 - 01/2024*
• Opel Zafira Life V (V) 02/20 19 - 01/2024*

Peugeot

• Peugeot 207 (WC) 06/2006 - 06/2009
• < span>Peugeot 207 (W) 06/2009 - 07/2015
• Peugeot 208 (C) 04/2012 - 04/2015
• Peugeot 307 (3/3 Break/3 SW/3 CC) 06/2005 - 03/2009
• Peugeot 308 (4/4 GTI/4 /4 CC) 09/2007 - 07/2015
• Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 07/2008
• Peugeot 4 07 (6/6 SW/6 Coupé) 02/2006 - 03/2011
• Peugeot 607 (9) 10/2004 - 04/2009
• Peugeot 807 (E) 07/200 2 - 02/2008
• Peugeot 807 (E) 02/2008 - 06/2014
• Peugeot 3008 (OU) 06/2009 - 10/2013
• Peugeot 5008 (O) 10/2009 - 10/2013
• Peugeot Bipper (A) 12/2007 - 12/2015
• Peugeot Expert (X) 02/2007 - 08/2016
• Peugeot Expert (X) 03/2016 - 2024
• Peugeot Partner (7) 05/2008 - 03/2012
• Peugeot RCZ (4J) 04/2010 - 09/2015
• Peuge ot Traveler 03/2016 -2024*

Toyota

• Toyota Proace 03/2013 - 08/2016
• Toyota Proace (V) 2016 - 04/2024*
• Toyota Proace Verso (V) 03/2016 - 04/2024*

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in terms of functions.

• pink: +12V ignition terminal 15 1.5A max.
• orange: +12V lighting terminal 58 0.1A max.
• white: +12V reversing signal 1.5A max.
• yellow/green yellow/red: speed signal
• Steering wheel remote control
• Vehicle settings supported

*Vehicles with Clarion MQ-RD6 OEM device with monochrome display and central rotary knob
*Vehicle settings not supported
