ACV 42b-3444741 - LFB for Citroen/Fiat/Peugeot/Toyota on Quadlock

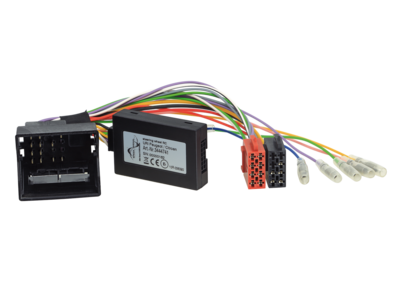

Steering wheel remote control adapter Citroen / Fiat / Peugeot / Toyota

Keep the original steering wheel remote control functions when replacing the factory radio with an aftermarket radio.
Depending on the vehicle equipment and the range of functions and software of the aftermarket device, individual operating functions may be omitted or replaced by other functions.
Compare the adapter plugs shown with those in your vehicle and make sure that they fit visually and technically.
Please also check whether one of the specified original factory radios was installed in your vehicle.
Before final assembly, check vehicle functions, vehicle settings and steering wheel remote control for functionality.

For the following vehicles suitable:

Citroen

• Citroën Berlingo (7) 06/2008 - 03/2012
• Citroën Berlingo (7) 04/2012 - 05/2015
• Citroën Berlingo (7) 06/2015 - 06/2018

• Citroën C2 (J) 12/2004 - 12/2009
• Citroën C3 (F). 10/2005 - 01/2010
• Citroën C3 (S) 01/2010 - 01/2017
• Citroën C4 (L) 11/2004 - 08/2010
• Citro ën C5 (D) 10/2004 - 04/2008
• Citroën C8 (E) 01/2008 - 07/2012
• Citroën C8 (E) 07/2012 - 06/2014
• Citroën DS3 (S) 03/2010 - 07/2014
• Citroen Jumpy (X) 02/2007 - 05/2016
• Citroen Nemo (A) 08/2008 - 12/2015
• Citroen Xsara Picasso (C) 03/2004 - 02/2010

Fiat

• Fiat Scudo (ZAF 270) 02/2007 - 07/2016

Peugeot

• Peugeot 207 (WC) 06/2006 - 06/2009
• Peugeot 207 (W) 06/2009 - 07/2015
• Peugeot 208 ( C) 04/2012 - 04/2015
• Peugeot 307 (3/ 3 Break/ 3 SW/3 CC) 06/2005 - 03/2009
• Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015
• Peugeot 407 (6 /6 SW/6 Coupé) 05/2004 - 07/2008
• Peugeot 407 (6/6 SW/6 Coupé) 02/2006 - 03/2011
• Peugeot 807 (E) 07/2002 - 02/2008
• Peugeot 807 (E) 07/2002 - 02/2008
• Peugeot 807 (E) 02/2008 - 06/2014
• Peugeot 3008 (oU) 06/2009 - 10/2013
• Peugeot 5008 Van (O) 2009 - 10/2013
• Peugeot Bipper (A) 12/2007 - 12/2015
• Peugeot Expert (X) 02/2007 - 08/2016
• Peugeot Partner (7) 05/2008 - 03/2012
• Peugeot RCZ (4J) 04/2010 - 09/2015

Toyota

• Toyota Proace 03/2013 - 08/2016

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in terms of functions

• +12V ignition terminal 15
• +12V lighting terminal 58
• +12V reversing signal
• Speed signal
• Total output load capacity: 200 mA max.
• Individual output load capacity: 180 mA. max
• Current requirement greater than 180 mA:
• 1 relay coil resistance 75 Ohm min.
• 2 relay coil resistance 150 Ohm min.
• Steering wheel remote control
• Vehicle settings supported

General installation instructions:

Check:

1: Check all operating functions and vehicle setting functions of the OEM device
2: Dismantle the OEM device without power supply
3: Check all interface connections for correctness and continuity without power supply

Connection and connection sequence:

1: Make settings and hardware configuration of the interface without power supply
2: Check the configuration of the radio connection cable
3: Connect the radio connection cable according to the operating instructions for the retrofit device
4: Connect all other connections according to the operating instructions for the retrofit device
5: Connect the entire installation to the vehicle with the live connection last
6: Software configuration of the interface according to the instructions in the article text and in the BDA
7: Configuration of the retrofit device according to the operating instructions for the retrofit device steering wheel remote control/camera/FSE/antenna phantom power and others
8: Function test of the steering wheel remote control and vehicle

Changes to the hardware configuration of the interface and the radio connection cable:

1: Make changes without power supply
2: Connection after change see above 5 to 8

If the interface or the vehicle malfunctions:

1: Revert to the OEM device
2: Operate OEM device
3: Establish CAN bus rest
4: Check the hardware configuration of the interface
5: Connection after CAN bus rest, see above 5 to 8
Connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the operating instructions are for guidance and information purposes only for trained specialist personnel.

Other connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:

1: Connections and changes may only be carried out by trained specialist personnel
2: Connections and changes must be checked for any manufacturer approvals or manufacturer warranty conditions that may be affected by the changes before connection
3: Connections and changes must be checked for function and correctness before connection by measuring and comparing against the vehicle's cable assignment plan
4: Connections and changes are made at your own risk and without a guarantee of function
5: Connections and changes are made at your own risk and without Warranty on damage to the vehicle, the retrofit device or the interface
6: Changes to the pre-assembled wiring harness may void the product warranty
