Alpine iLX-705S453B - 1DIN media system

iLX-705S453B

Digital Media Station with 7-inch WXGA display, for installations in the Smart (BR453)

The iLX-705D is the successor to our popular and award-winning Digital Media Station iLX-702D. This new generation of devices includes many improvements, such as B. a significantly higher screen resolution, Apple CarPlay Wireless, 2 USB ports and an integrated Class D amplifier and playback in Hi-Res audio quality.

If you are looking for a high-performance 2-DIN car radio with Bluetooth for your vehicle that offers the latest features, cutting-edge media compatibility and excellent sound quality, the iLX-705D is for you. Enjoy the features of Apple CarPlay wireless and Android Auto (wired), DAB+ digital radio, USB video playback, Hi-Res audio playback, Bluetooth hands-free and audio streaming, and much more with this amazing 2-DIN car stereo.

Bring exceptionally good sound quality to your vehicle: The Alpine iLX-705D is one of the world's first control units with an integrated Class D amplifier and has a wide range of professional sound tuning functions such as a digital crossover, a parametric EQ, a digital time correction and much more.

The new generation of the 2-DIN Digital Media Station

The iLX-705D is the official successor to the very popular Digital Media Station iLX-702D. We have improved the 2-DIN car radio with numerous new functions, more compatibility, a screen with HD resolution and the world's first class D amplifier in a head unit.

18 cm (7-inch) WXGA HD resolution touchscreen

The iLX-705D features the best 7-inch display we've ever put in a 2-DIN device. This 7-inch HD touchscreen has a resolution of 1280 x 720p (WXGA) and is characterized by amazingly vivid colors and contrasts - so that icons, menus and visual content in your dashboard are presented even more clearly. You will be able to read the display of small text or symbols on navigation maps much better with this high-resolution screen.

Wireless Apple CarPlay

For even more convenience, the iLX-705D offers wireless connection via Apple CarPlay Wireless with the iPhone. This means that iPhone users in the vehicle can leave their phone in their pocket and conveniently make calls, call up and reply to short messages, use music apps and even be navigated. Access to Apple CarPlay is via the capacitive touchscreen or the voice dial button to activate Siri voice control.

2x USB ports

With two USB ports, the Alpine iLX-705D offers you the variety of media you need on your travels. For example, you can use the USB ports on the back of the device to connect a mobile device for charging, while the second USB port connects a USB stick or hard drive to access audio and video files.

Android Auto compatible

Android Auto is designed with road safety in mind and works with the Google Assistant (requires both USB cable and Bluetooth® connection - Android ™ smartphone version 5.0 [ Lollipop] or higher and the Android Auto app). To access Android Auto's Google Assistant, just say "OK Google" or select the microphone button. With the Google Assistant in Android Auto, users can play their favorite music, get directions to their destination, interact with smart home devices, and reply to text messages.

The world's first head unit with an integrated class D amplifier

In addition to the new Halo9 and Halo11, the iLX-705D is the world's first head unit for the aftermarket that has an integrated class D amplifier with 4x 50 watts of power. This amplifier has excellent high-end sound reproduction with extremely reduced noise and barely measurable phase shifts. The main benefit of Class D amplifier technology is the high efficiency of around 90%, compared to 50-70% for Class AB amplifiers. A new cooling concept with internal heat sinks ensures that your Alpine Halo11 always has the right working temperature - and plays your favorite music.

Enjoy excellent sound quality

With a 56-band parametric equalizer, digital crossover, 6-channel digital time-delay correction, and multiple Bass Engine SQ presets and MediaXpander sound tuning options, you have excellent options to customize your Alpine Halo11 or connected perfectly tune amplifier/loudspeaker systems. But that's not all: Alpine's Halo11 car radio is Hi-Res Audio certified and can decode and convert Hi-Res audio files up to 96 kHz / 1,536 kbps from uncompressed USB sources with formats such as FLAC, WAV and APE. p>

Diverse entertainment options

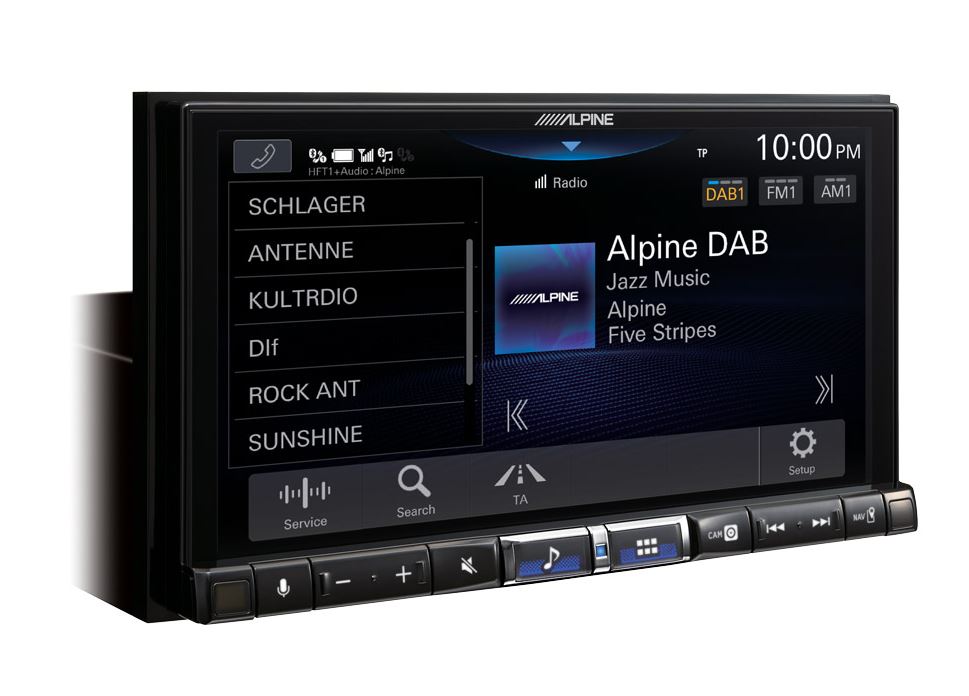

The completely newly developed 1.5-way DAB+/FM/AM tuner allows you to switch between DAB and FM and lets you enjoy seamless radio reception without interruptions. In addition to the advanced USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo11 offers many additional entertainment options. With the integrated Bluetooth module you can use audio streaming from your phone and an HDMI input allows you to connect an external video playback device. play.

Vehicle data bus connection

If your vehicle is equipped with parking sensors and , you can still enjoy these handy features with your iLX-705D. Alpine offers many vehicle data bus connections to connect your Alpine iLX-705D to your vehicle's data bus system. This enables compatibility with your vehicle's steering wheel remote control, display of climate control settings and display of parking sensors.

Parking Assist Technology

The optional reversing camera systems offer even more safety with the latest camera technology. The reversing camera is activated automatically when reversing and interrupts the audio signal so that you can continue to hear the parking sensors. Not only do you have a clear view to the rear, you also have dedicated guidance lines. You can even enable a hitch guide line to make hitching your trailer much easier. A direct camera key is available for quick camera access while driving.

External wireless volume control with camera activation

The RUE-BK01 control knob, sold separately, has its origins in the Alpine Halo 2022 series and can also be used with the iLX-705D (cannot be attached to the device). This gives you the opportunity to place the remote control at your desired location in the vehicle. No additional cable needs to be laid. Turning the knob adjusts the volume of the main unit. By pressing the button, the rear view camera can be activated on the screen while driving. Note: This control button is not active when the Apple CarPlay wireless function is activated.

EQUIPMENT
Radio/DAB tuner

• Station memory (FM: 3x 12 / DAB: 3x 12 / AM: 2x 12)
• Station memory: Automatic station memory
• Search function: Local, DX, PreSet, Service
• RDS functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
• DAB+/DMB support
• DAB+ Slideshow Service
• DLS (Dynamic Label Service) and DAB Service Following
• Seamless-Linking Seamles (automatic DAB+/FM switching without interruption (when signal is available)
• Automatic ensemble/service storage
• Service search and PTY search function
• Alphabetical channel search function

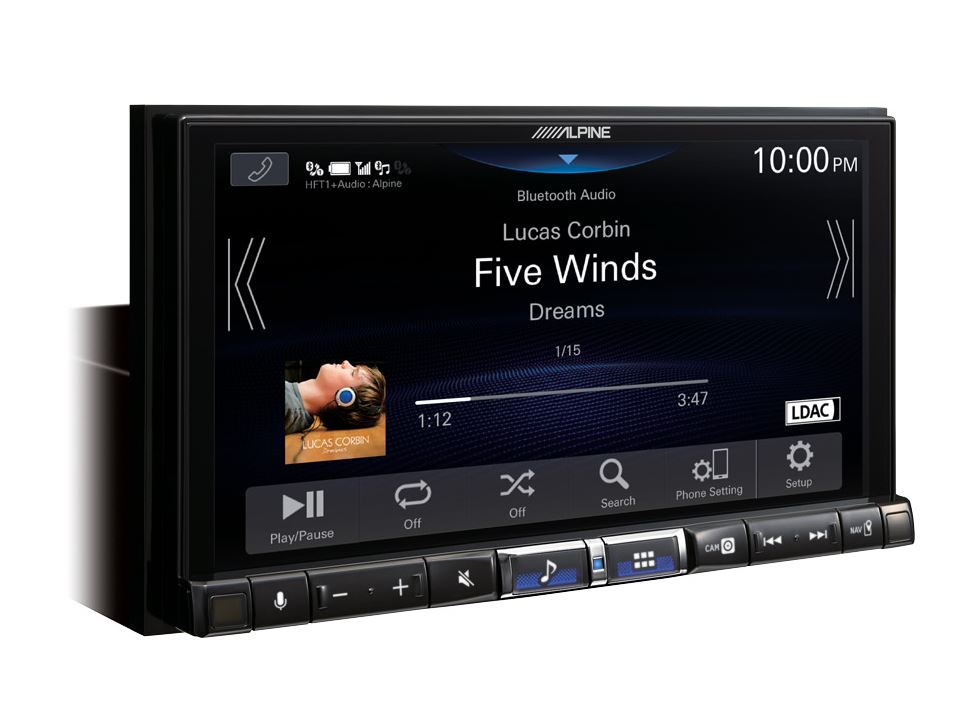

BLUETOOTH

• Integrated BLUETOOTH® module V4.2
• Hands-free function: HFP (Hands Free Profile) compatible
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Music streaming control: AVRCP (Audio/Video Remote Control Profile) version 1.5 compatible
• Phone book: Automatic phone book transfer
• Direct dial buttons: 4 memory slots per phone
• Call history: dialed number / received calls / missed calls
• Redial function
• Speech volume setting: Adjustable for incoming and outgoing calls
• Menu language selection: 24 menu languages
• Microphones included

Works with iPhone

• Compatible for iPhone with Lightning connector
• Different search functions and album artwork display
• Battery charging function

Connectivity

• Works with Apple CarPlay Wireless (from iPhone 6S) and Apple CarPlay (CarPlay-enabled smartphone required)
• Works with Android Auto (Android Auto enabled smartphone required)
• Dash Cam Link for DVR-C320S to view and control the Dash Cam

Online navigation features

• Online navigation combined with Apple CarPlay and Android Auto
• Including GPS/Glonass antenna
• Direct access to navigation from CarPlay or Google Maps

USB port

• 2x USB connection cable (2m) included
• USB port 1: media playback / USB port 2: battery charging function
• Music playback formats: FLAC, MP3, WMA, AAC, APE
• Video Playback: MP4, MOV, FLV, MKV
• Supported video formats: MPEG-4 / H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
• Various search functions included

Sound Tuning

• Bass Engine SQ and Bass Engine PRO Sound Tuning
• Subwoofer level adjustable
• 4V preamp output
• 10 Equalizer Presets
• 56-Band Parametric EQ, (4x 13-Band Front L/R, Rear L/R + 4-Band for Subwoofer)
• 6-channel runtime correction
• Digital Crossover
• Independent source volume adjustment
• Detailed information about the sound options can be found in the user manual

General

• 4x 50 watt class D high-power amplifier
• 18 cm (7-inch) WXGA (1280 x 720p) capacitive touchscreen
• Screen adjustable in inclination, height and depth
• 3 preamp outputs (4V, front / rear / subwoofer)
• 1 A/V AUX input (3.5 mm jack optional C1902-Nav)
• 1 HDMI input / 1 HDMI output
• 2 USB ports (1x USB media playback / 1x USB charging function)
• Suitable for steering wheel remote control
• Vehicle Display Interface Ready (UART connector)
• Remote control available as an option (RUE-4360)
• 2x Camera Direct Connection Note: does not supportthe KCX-C250MC Camera Switching Box
• Rear view camera guidelines (adjustable)
• Trailer guidelines for rear view camera
• Live contrast setting
• Menu language: 24 languages
• Automatic Dimmer
• Anti-theft device with numeric code
• Start Stop Ready

Installation

• Various vehicle-specific installation kits available

SPECIFICATION

Screen

• Screen size: 18 cm (7-inch) capacitive WXGA display
• Number of pixels: 2,764,800 pixels (1280 x 3 x 720)
• Lighting system: White LED backlight
• Effective number of picture elements: 99.99% or more
• Color system: NTSC, PAL

Maximum output power

• Max. Power 4x 50 W

Radio / DAB tuner

• FM frequency range: 87.5 - 108.0 MHz
• AM frequency range: 531 - 1.602 kHz
• DAB Band III: 174 – 240MHz
• Alternative channel selectivity: 80 dB
• Signal-to-noise ratio (S/N): 65 dB
• DAB Audio Format: DAB / MPEG 2, DAB+ / AAC, DMB Profile 1 / BSAC / DMB profile 2 / AAC

WiFi

• Receive frequency: IEEE 802.11 b/g/n (2.4 GHz)
• Channels: 1 – 13 ch (2.4 GHz)
• Security protocol: WPA3 / WPA2-PSK (TKIP, AES)

USB

• USB requirements: USB 2.0
• USB 1: media playback / 2,400 mA (mass storage class)
• USB 2: battery charging function / 1,500 mA (CDP support)
• USB class: playback from device / mass storage
• File system: FAT16 / FAT32 / exFAT
• Audio formats: FLAC, MP3, WMA, AAC, WAV, APE
• Video Playback: MP4, MOV, FLV, MKV
• Supported video formats: MPEG-4 / H.264 (MPEG-4/AVC) / MPEG-1 / MPEG-2
• Number of channels: 2-channel (stereo)
• Frequency response: 5 - 40 kHz ±1 dB *Depending on encoding software and bit rate
• Total Harmonic Distortion - T.H.D. (@ 1kHz): 0.005%
• Dynamic range (@ 1 kHz): 95 dB
• Signal-to-noise ratio: 95 dB

GPS / Glonass

• GPS/Glonass compatible antenna included
• GPS frequency: 1575.42 +/- 1.023MHz
• Input sensitivity (search): -136 dB max

BLUETOOTH

• BLUETOOTH® Version: Bluetooth V4.2
• Output power: +4 dBm max. (power class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)
• Supports LDAC Audio Codec

Sound Tuning

• Subwoofer level adjustable: 0 to +15
• Subwoofer phase: 0° or 180°
• BASS ENGINE SQ: 5 modes, levels 0 to +6
• For detailed information on how to set the bands and frequencies, please refer to the user manual

HDMI

• Input format 720p / 480p / VGA

General

• Power supply: 14.4 V.DC (11-16 V allowable)
• Preamp output (without clipping): 4 V / 10 kOhm

Dimensions

• Weight: 1.4kg
• Housing dimensions (W x H x D) mm: 178 x 50 x 150
• Screen dimensions (W x H x D) mm: 171 x 96 x 18
