Product information Ampire KVA-T6-F - rear view camera for Volkswagen T5 and T6 / T6.1 with wing doors up to model year 2021

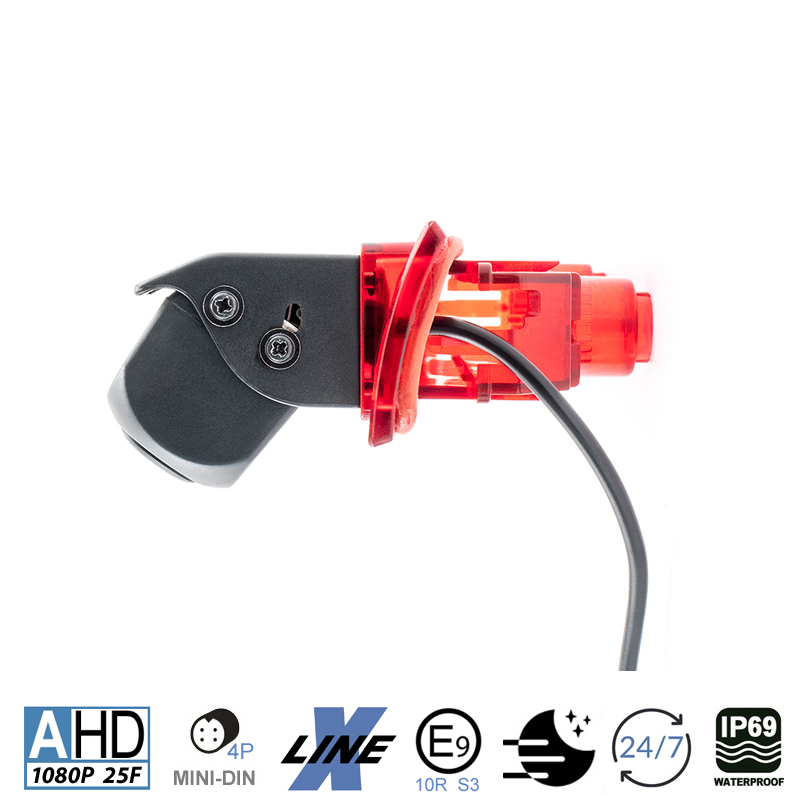

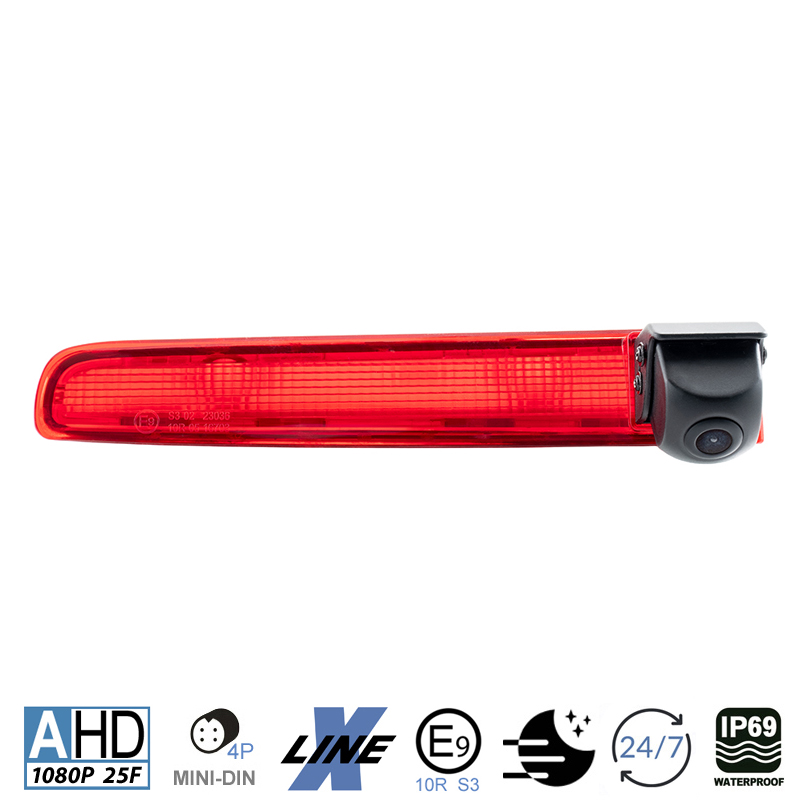

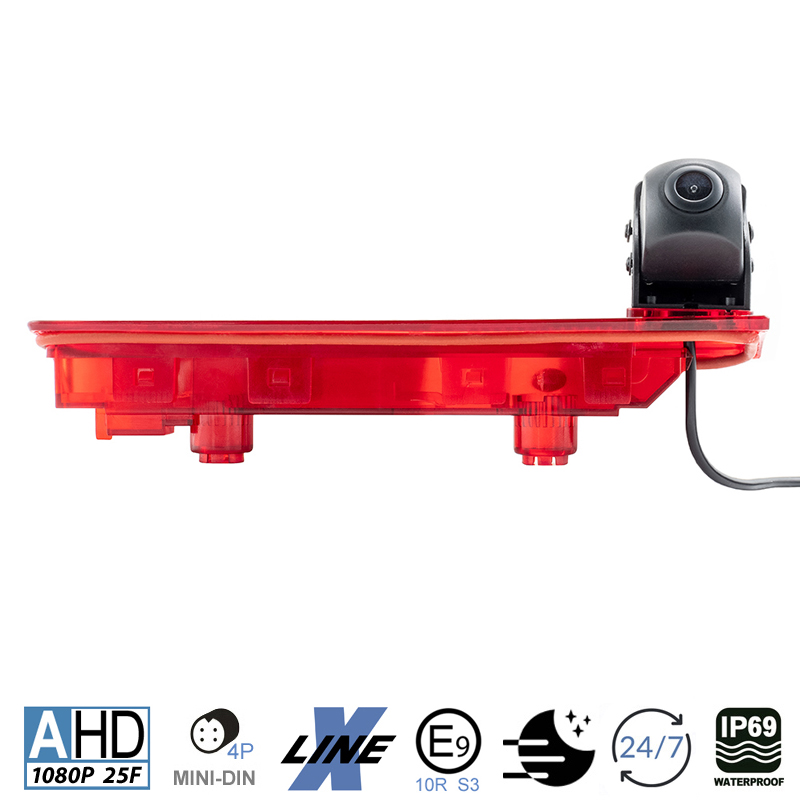

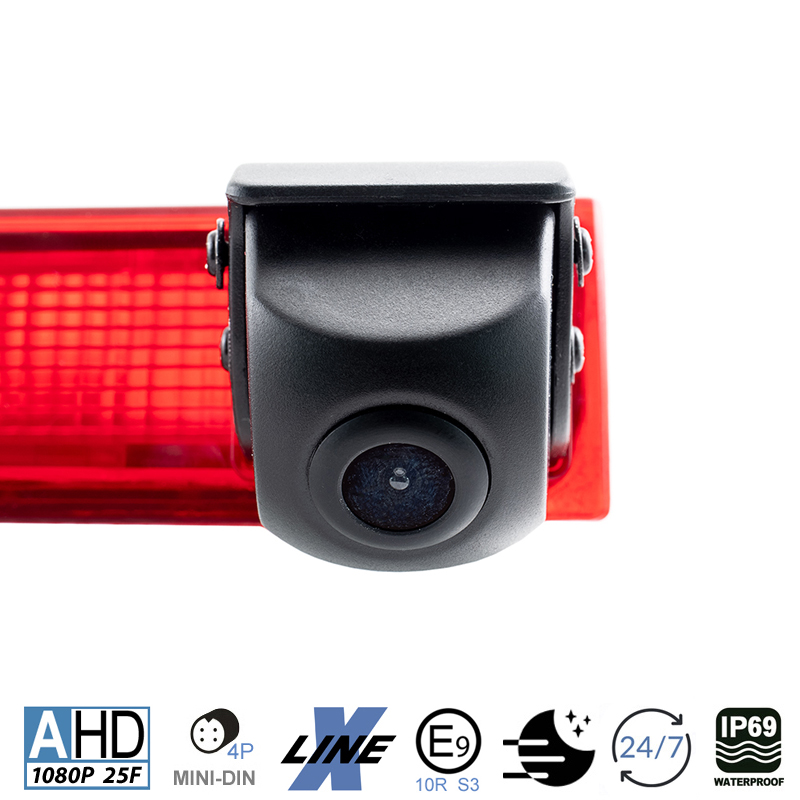

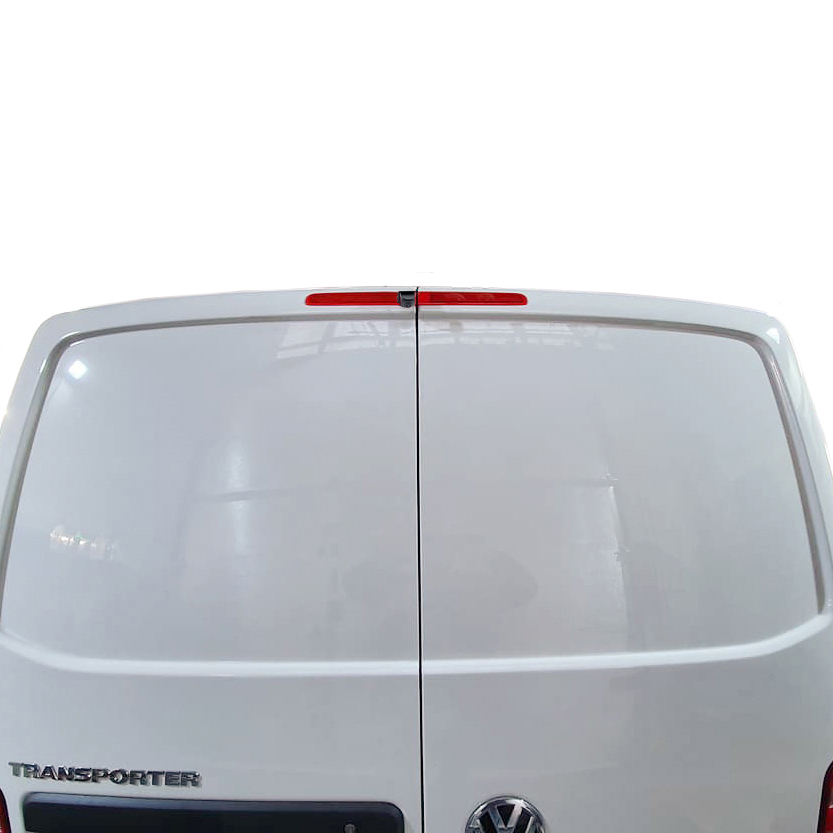

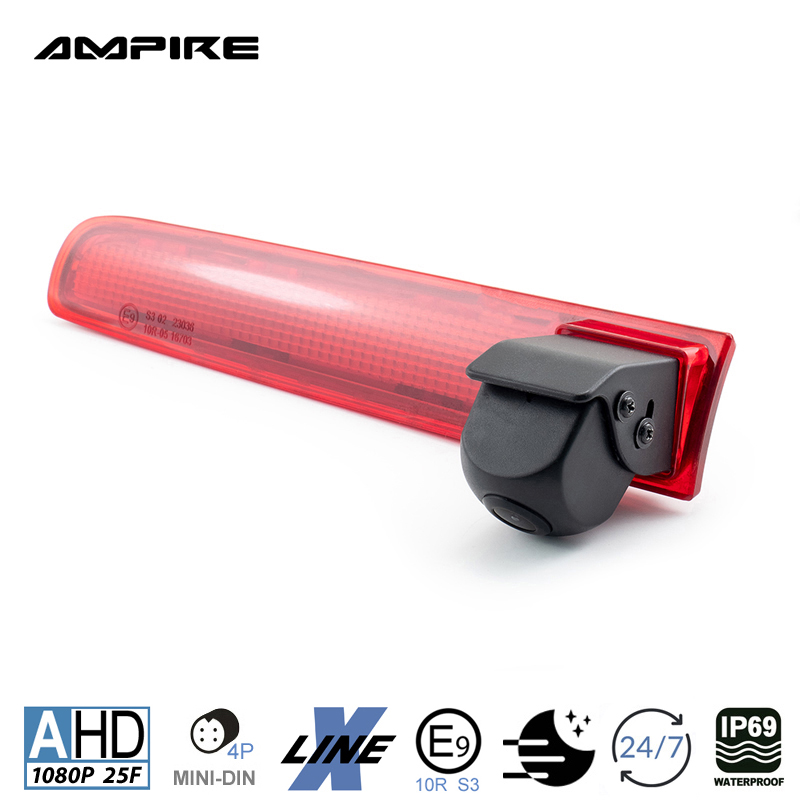

High-resolution AHD rear view camera for the Volkswagen T5 and T6 / T6.1 with wing doors up to model year 2021. The camera is mounted over the factory brake light glass.
TECHNICAL DATA

•  Video standard AHD 1080P 25F
•  Image sensor: GC2399 (FH8536H)
•  Image sensor size 1/2.7
• Resolution 1920x1080 Pixel
•  3D noise reduction
•  Sequential scanning
•  Minimum illumination: 0.005 lux
•  Signal-to-noise ratio >50dB
•  Automatic white balance
•  Image display mirrored horizontally
•  Guide lines: switched on (can be switched off by disconnecting the cable loop)
•  horizontal viewing angle 155°
•  vertical viewing angle 100°
•  diagonal viewing angle 185°

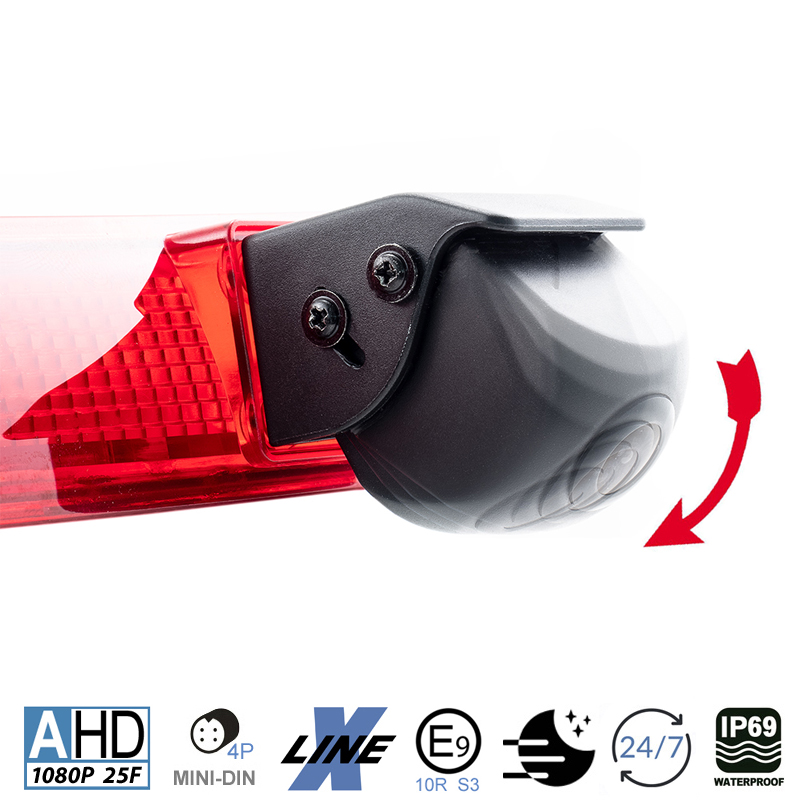

•  camera head adjustable up to 20° vertically
•  protection class IP69 waterproof
•  operating voltage: 9-16 volts DC
•  power consumption: max. 75mA
•  operating temperature: -20° to 70°C
•  color: black
•  cable length: 10 meters with 4-pin. MINI-DIN connectors
•  E approval E9*10R06/00*22328*00
•  CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
•  FCC approval ANSI C63.4-2003

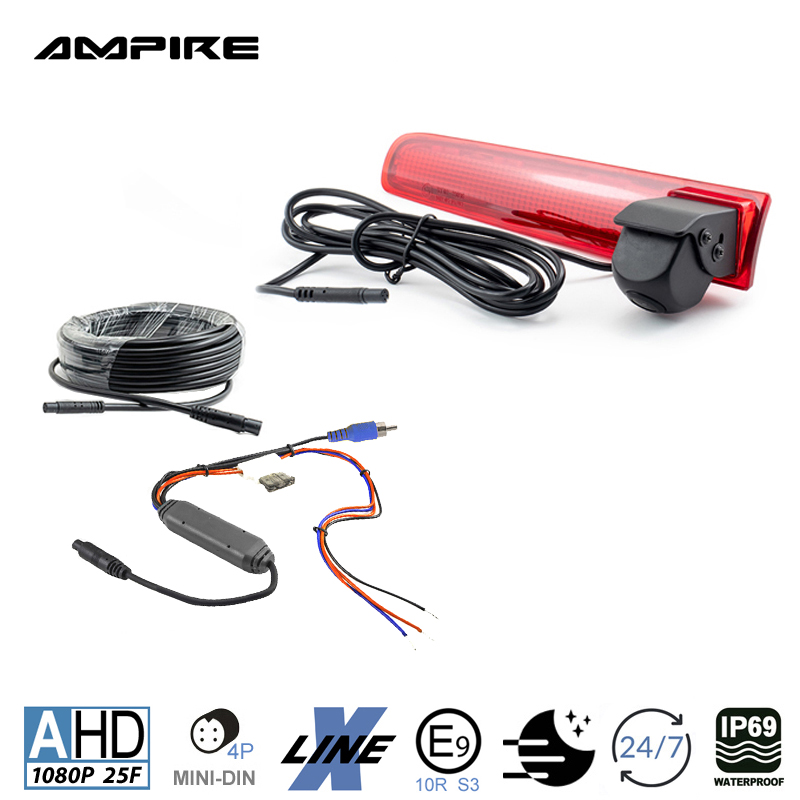

SCOPE OF DELIVERY

• Rear view camera
• AK1035 power supply
• AK1034 mini-DIN extension cable 10m

IMPORTANT NOTE

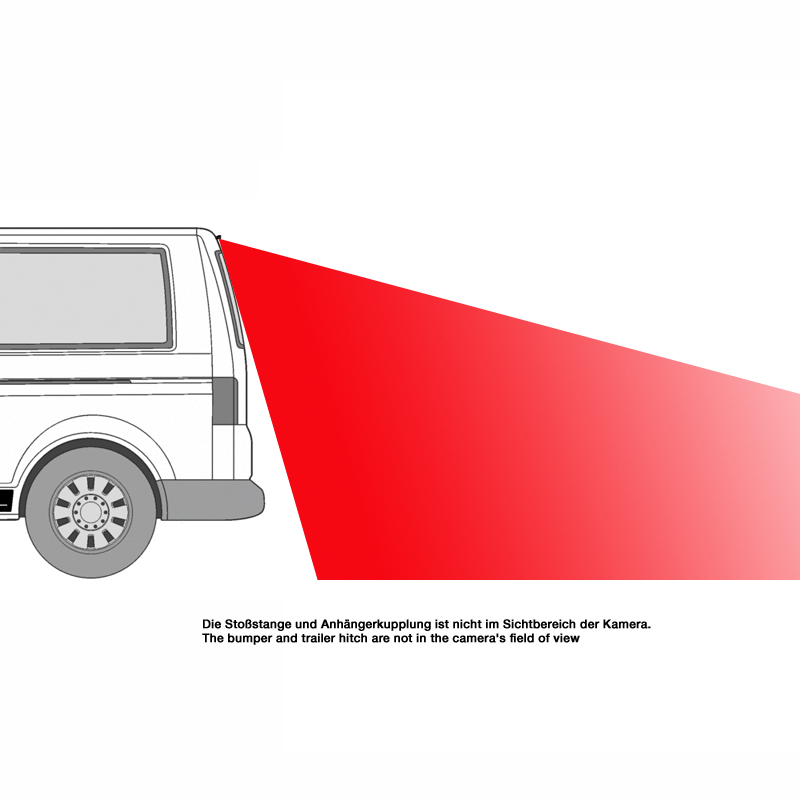

Depending on the roof structure and the trailer hitch installed on the vehicle, the trailer hitch may not be visible on the monitor.
ORDERING NOTE
This camera is a high-resolution AHD camera with 1080P resolution and 25 frames/second.
This camera can only be connected to compatible monitors, car radios or interfaces.
If the camera input on your monitor can only display a video signal in CVBS, FBAS or NTSC, this AHD camera is unsuitable and you should then use the identical CVBS camera with NTSC video signal.
