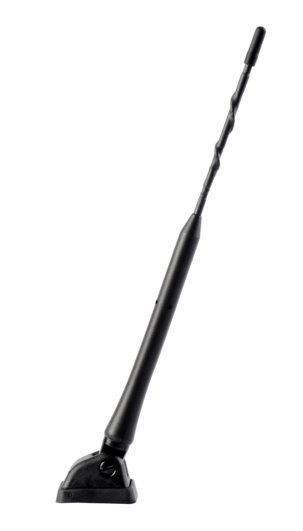

ATBB 3940.01 - Dachantenne passiv - FM/DAB+ mit optionalem Splitter

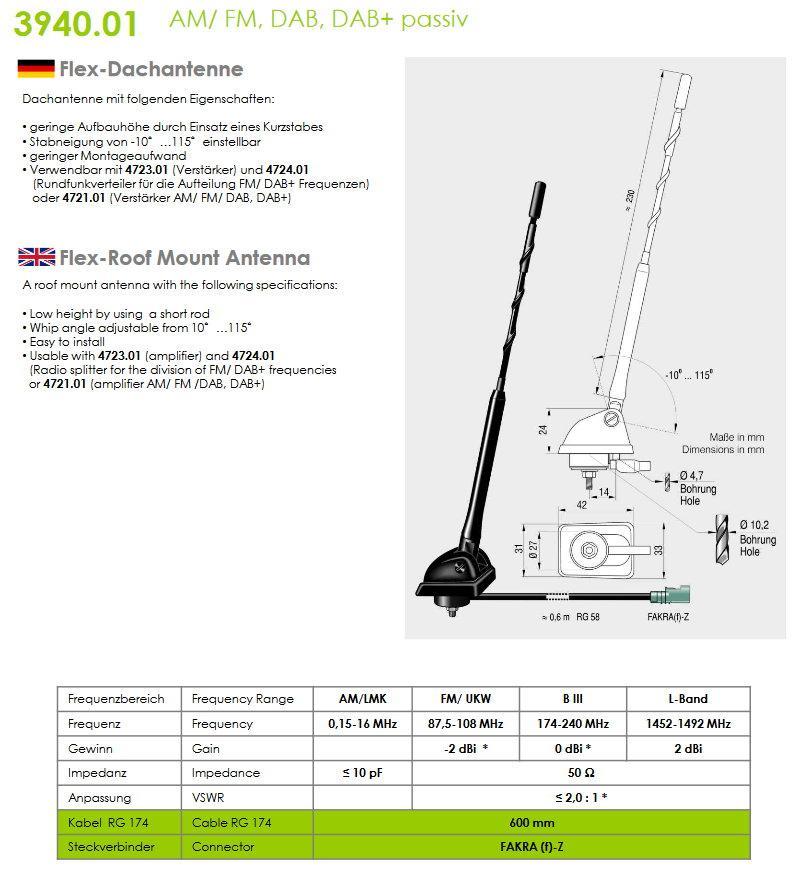

Roof antenna (Holmenantenne with the following characteristics:

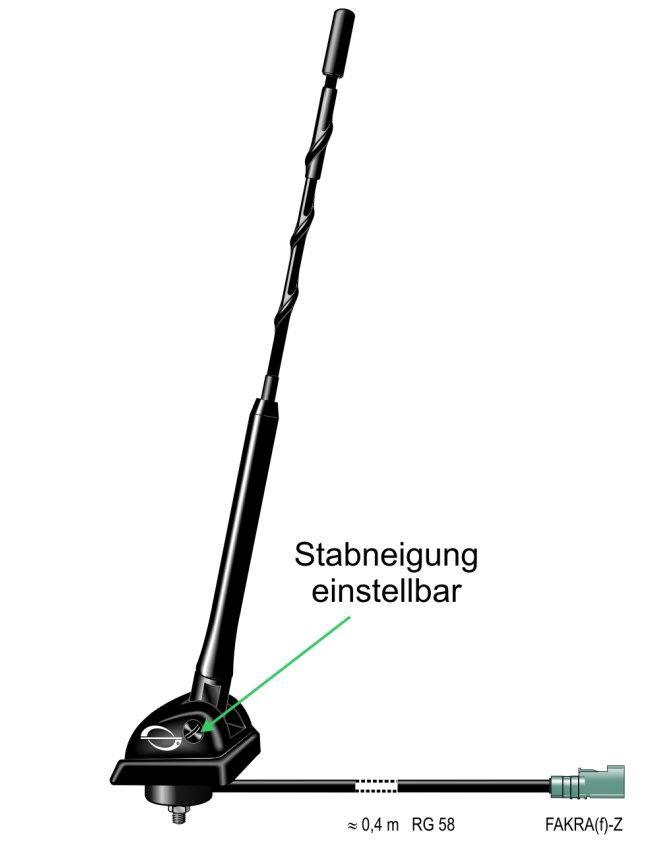

• Stab tilt of 10-115 degrees adjustable
• low installation height by using a short rod (length 23 cm)
• low installation costs
• can only be used with splitter with built-in amplifier ABB 4726.01 or ATBB 4726.02 or ABB 4726.03 or combination of amplifier ATBB 4723.01 and passive splitter ATBB 4724.01.
• Connection to antenna: 60 cm cable with Fakra socket

Note:
In many vehicles with an active 16V antenna, only a filtered FM signal is transmitted, i. the DAB + signal is outside the transmitted frequency range.

Solution:
Remove the active roof antenna and replace it with a passive roof antenna, such as the one mentioned here, and then split the signals into DAB and FM on the radio with the ATBB 4726.01 splitter.
