ATBB 3775.01 - Hai Antenne aktiv - FM/DAB+ mit Fakraanschlüssen

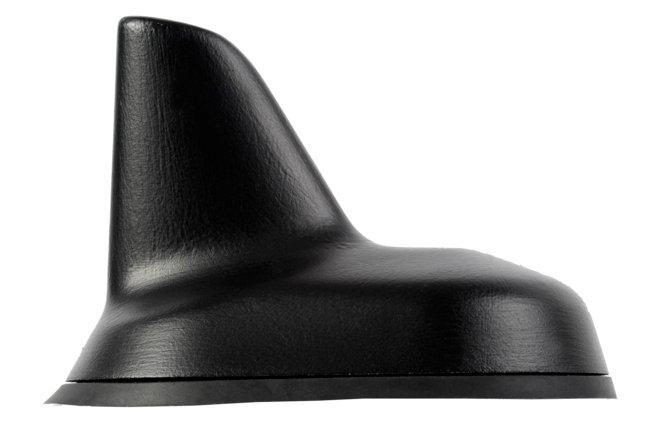

Roof antenna with the following characteristics:

• DAB reception, active and low noise in the BAND 3
• FM / FM / AM reception, active and low noise
• 12 Volt power supply optionally via inner conductor of the cable connections (phantom power) or via DIN socket (see ATB formation)

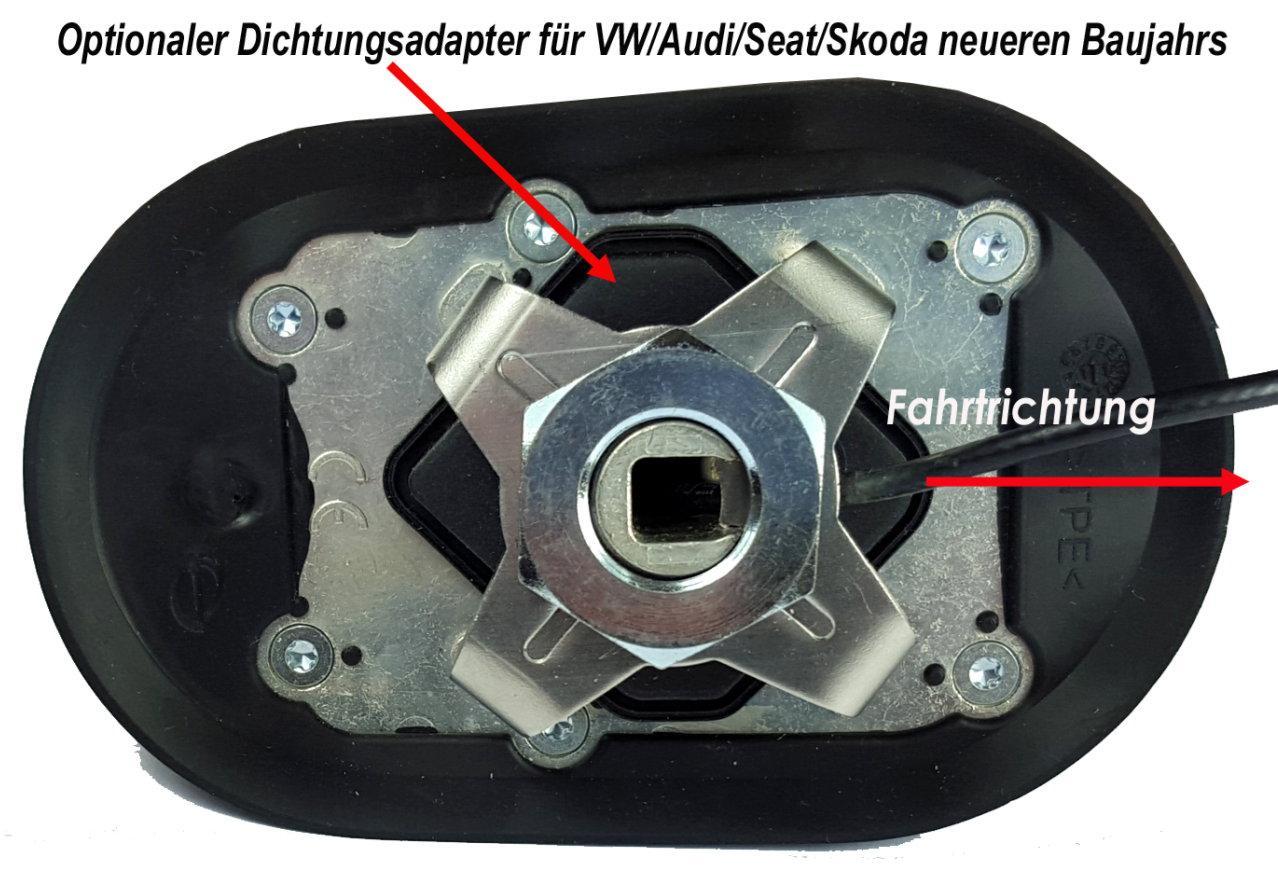

• Assembly possible with new hole patterns from Mercedes, VW, Audi. Seal adapter optionally available. Mercedes ATBB 4624.01 or for VW / Audi ATBB 4625.01.

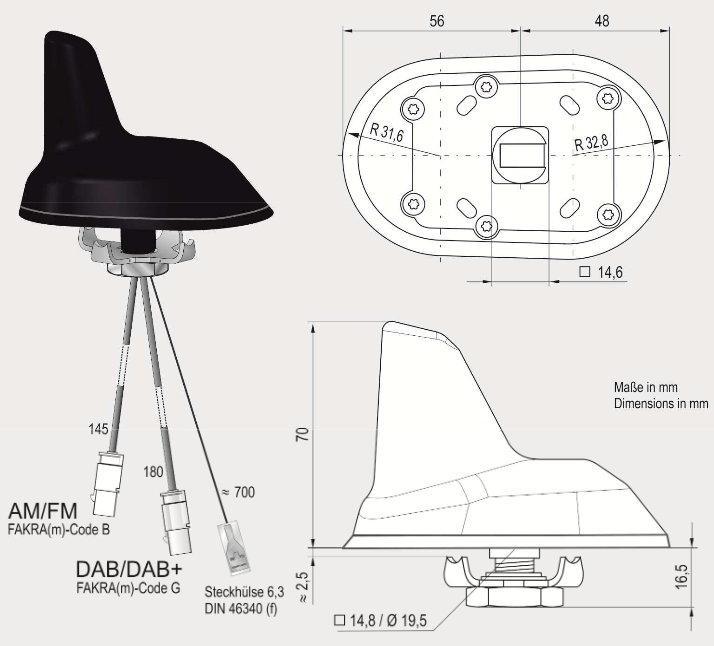

• low installation depth (about 16.5 mm)

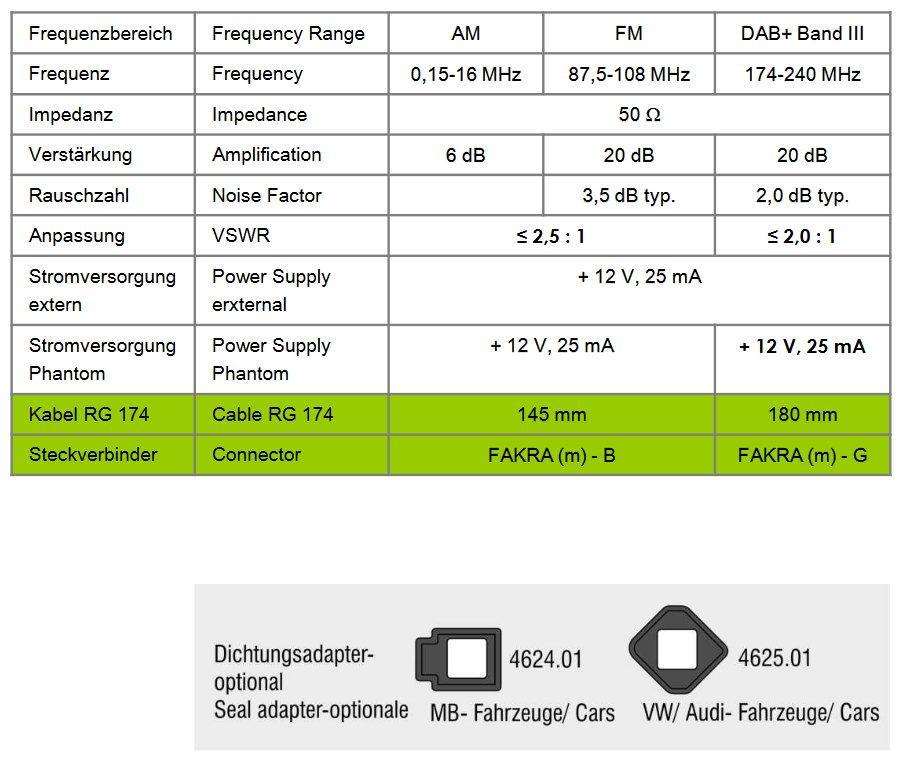

• Amplification: FM: 20dB
• Gain: DAB +: 20dB
• Amplification: AM: 6dB
• Power supply: 12 volts, 25mA
• Cable: RG 174, AM / FM 145 mm, Fakra plug, white
• Cable: RG 174, DAB + 185 mm, Fakra plug, gray

Note:
In many vehicles with an active 16V antenna, only a filtered FM signal is transmitted, i. the DAB + signal is outside the transmitted frequency range.

Solution:
Remove active roof antenna and replace it with an active roof antenna like the one mentioned here.
