Retro Sound MOTOR-6DAB - DAB+ complete set “Grand Prix” with accessories

RETROSOUND “MOTOR-6DAB” DAB+ complete set in “Grand Prix” design with lots of accessories

The “MOTOR model -6DAB" is a premium model from RetroSound. It is visually identical to the cheaper model "MOTOR-2DAB" and, in addition to its features, has a second USB input on the back of the device, APPLE iPhone interface via USB, Bluetooth audio and hands-free functions, three preamplifier outputs and multi-color lighting.

EQUIPMENT

• DAB+ digital radio
• FM radio with RDS functions
• A2DP Bluetooth audio playback for wireless smartphone integration
• two USB inputs on the back of the device
• AUX input (3.5 mm) on the back of the device
• Bluetooth hands-free system with external microphone

SCOPE OF DELIVERY

• RETROSOUND MOTOR-6DAB radio module with DAB+ and FM
• RETROSOUND FACE-GRANDPRIX display unit
• RETROSOUND RSP-296 ISO installation kit for DIN slot
• AMPIRE DAB1 antenna splitter
• AMPIRE USB/AUX built-in socket with 60cm cable
• USB32G Mini USB stick 32GB (black)
• H-MARK CONFIRMATION FROM TÜV SÜD

ANTENNA CONNECTION
Passive rod or telescopic antennas were installed in most classic vehicles. These are also suitable for DAB+ radio reception. The set includes a DAB1 antenna splitter. For window antennas or electronically amplified roof antennas, you need a separate DAB+ antenna install and cannot use the DAB1.

H MARK
Any concerns that your H - License plate that would possibly be at risk due to the installation of a RetroSound car radio is unfounded. In the download you will find a confirmation with the approval of the entire AKE working group (TÜV SÜD, TÜV Rheinland, TÜV Nord , Dekra, KÜS, GTÜ), which states that the RetroSound Model Zuma" and the RetroSound Model Two" including vehicle-specific panels and control buttons may be installed in classic cars with H license plates or  do not prevent the award of the H license plate!

EQUIPMENT

• Playback of MP3 and WMA files via the rear USB input
• Bluetooth hands-free kit with A2DP audio streaming
• Adjustable LCD lighting with 32,000 different colors
• DAB+/FM/AM radio receiver with RDS and 30 station memories
• Tuner with European even and odd radio frequencies
• -integrated 4-channel amplifier (4 x 25 watts RMS)
• 3 RCA outputs (stereo) for external power amplifiers (front/rear/subwoofer)
• 3 equalizer programs plus individual bass/treble/fader/balance settings
• XBAS loudness function
• Non-volatile memory

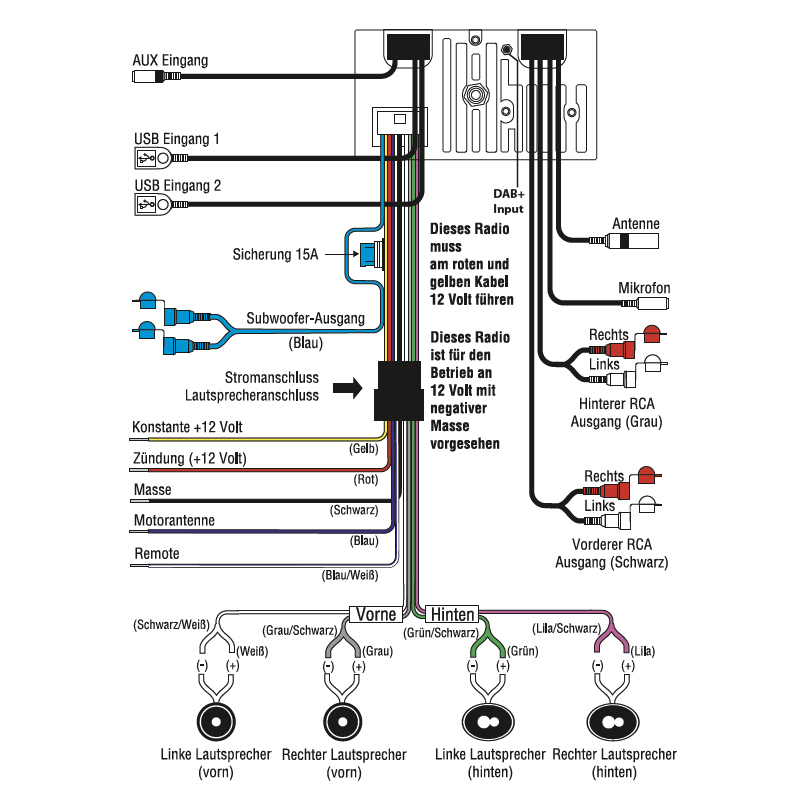

EXPANSION POSSIBILITIES

• Two USB inputs (back of device) up to max.
• 3.5 mm jack AUX input (stereo)
• 3 RCA outputs (stereo) for external power amplifiers (front/rear/subwoofer)
• Separate switch-on cable for motor antenna and amplifier

TECHNICAL DATA RADIO PART

• FM European Radio frequency range 87.5-107.9 MHz. (0.05 MHz. in steps)
• MW frequency range 530-1710 kHz (9 kHz. in steps)
• DAB+ reception via SMB antenna input for passive DAB+ antennas

GENERAL DATA

• Dimensions of the basic radio unit 101x51x136mm
• Voltage supply 10.5 to 14.4 volts
• Maximum current consumption 15 amps
• quiescent current 3.5 mA
• Sine output power 12V, 4 ohms, <1% THD: 4x25 watts (RMS)
• Impedance speaker 4-8 ohms
• RCA output 2.85 volts for external amplifier
• Input sensitivity AUX >300 mV / 6 kOhm

E-APPROVAL

• E approval e13 03 10006 e13*72/245*2006/96*10006*00
