Dynavin D9-KG21 Premium - Android car radio for Renault Trafic / Renault Kangoo

D9-KG21 Premium

• Integrated 4 x 60W RMS Class D DSP amplifier: Distortion (THD+N) <1%, DSP resolution: 24-bit, sampling rate: 44.1K.
• Includes head-up display that displays navigation information from Dynaway, Apple Maps with CarPlay, and Google Maps with Android Auto, as well as vehicle speed and Blitzer.de information.

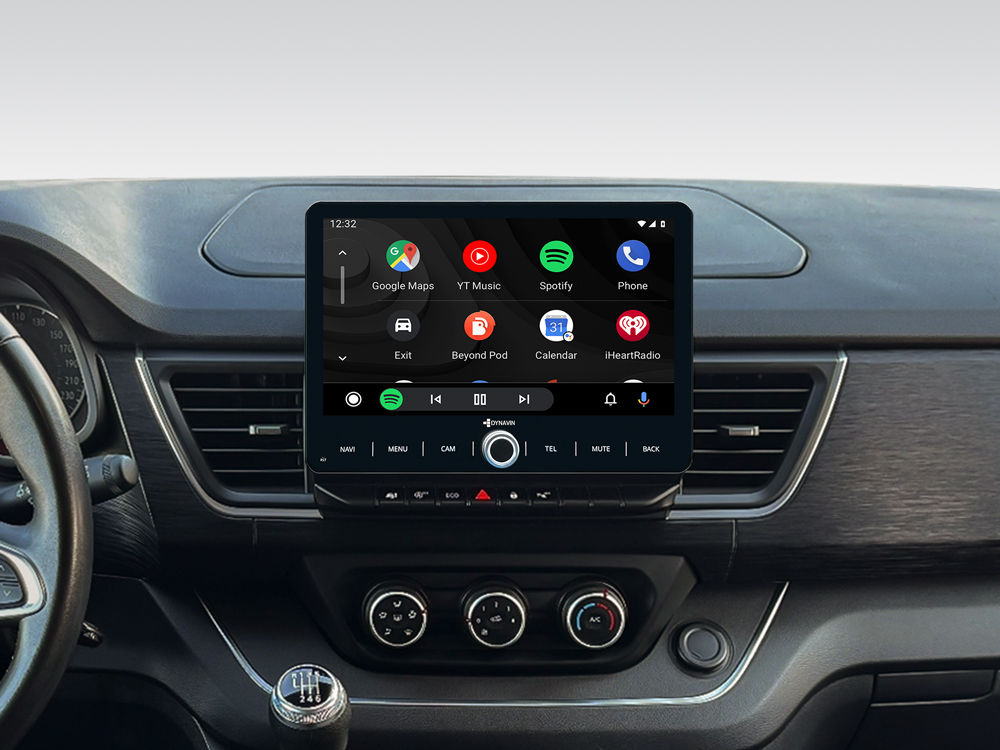

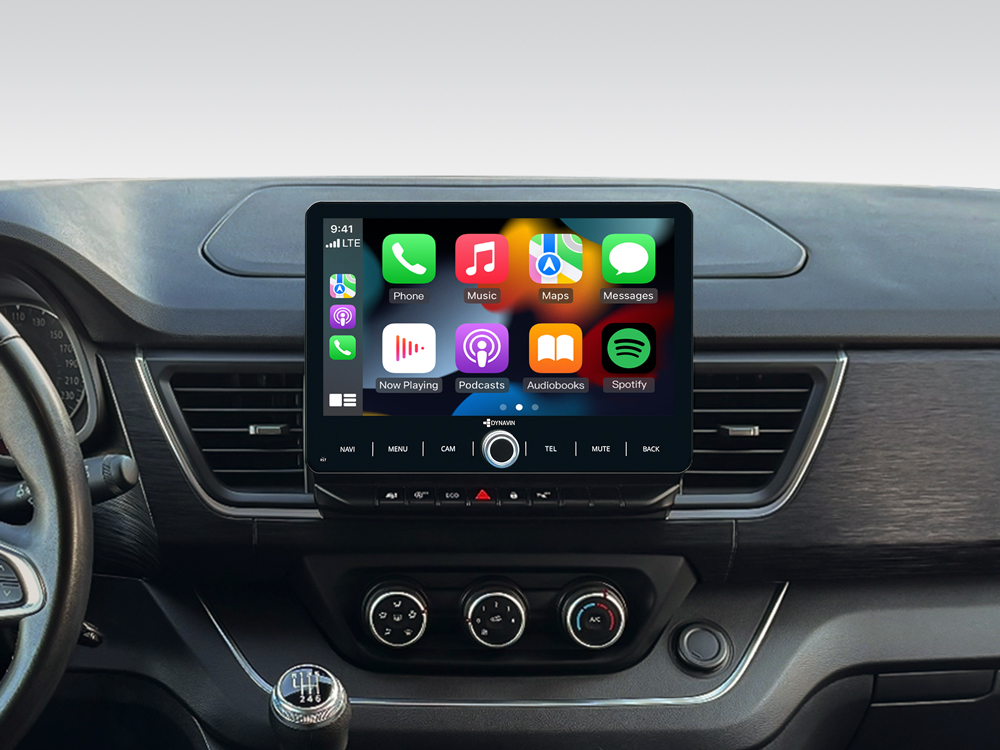

• Compatible with Apple CarPlay, Wireless CarPlay, Android Auto, Wireless Android Auto*, and Smartphone Mirroring.
• Google Play Store: Internet connection via integrated Wi-Fi module.
• Integrated CANBUS solution for steering wheel controls.
• BT for audio streaming and hands-free calls via any smartphone (Android, Apple, etc.). External compact dual digital microphones are included.
• FM RDS tuner with DSP noise masking and 15 preset stations, integrated DAB. Supports automatic switching between DAB and FM (Seamless Blending).

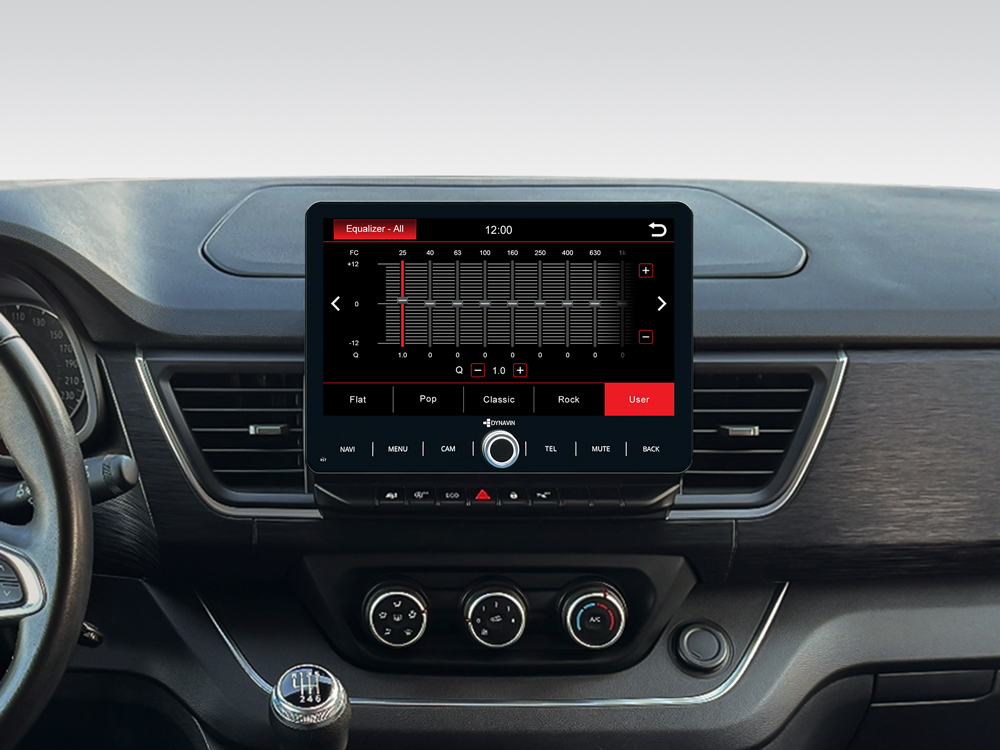

• Integrated sound DSP processor with 16-band EQ and time correction.
• Multimedia player via USB port.
• Rear view camera ready: Compatible with aftermarket rear view cameras.

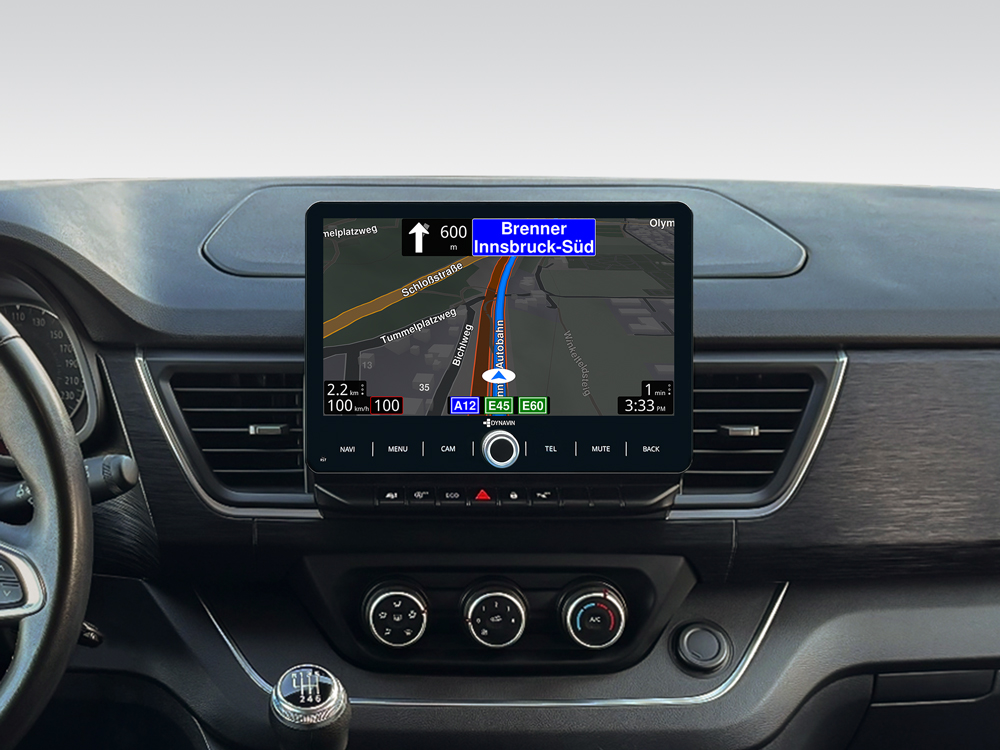

• Integrated GPS navigation.

* The Wireless Android Auto feature included in Z-Link does not guarantee compatibility with all Android phones.

Suitable for

• from 2021 Renault Trafic for vehicles without original display
• from 2021 Renault Kangoo for vehicles without Original Display

Specifications

General

• Android 11 OS with 4 GB RAM and 32 GB or 160 GB ROM
• 5 PreOuts (3 V, Front / Rear / Subwoofer)
• CANBUS Integration
• Menu Language: English / German / French / Spanish / Portuguese / Dutch / Italian / Polish / Danish / Czech / Finnish
• Compatible with AHD / NTSC / PAL Camera Inputs
• Camera Guide Line Adjustment
• Rear Camera Display Automatic / Fast Boot
• 16 Band EQ
• Auto Dimmer
• Firmware Upgradeable
• Compatible with start-stop system

Display

• Display: 10.1-inch
• Resolution: 1280 x 720 pixels (RGB)
• Capacitive touchscreen
• Anti-reflective display
• Operating system: TFT active matrix
• Active area: 222.72 (H) x 125.28 (V) mm

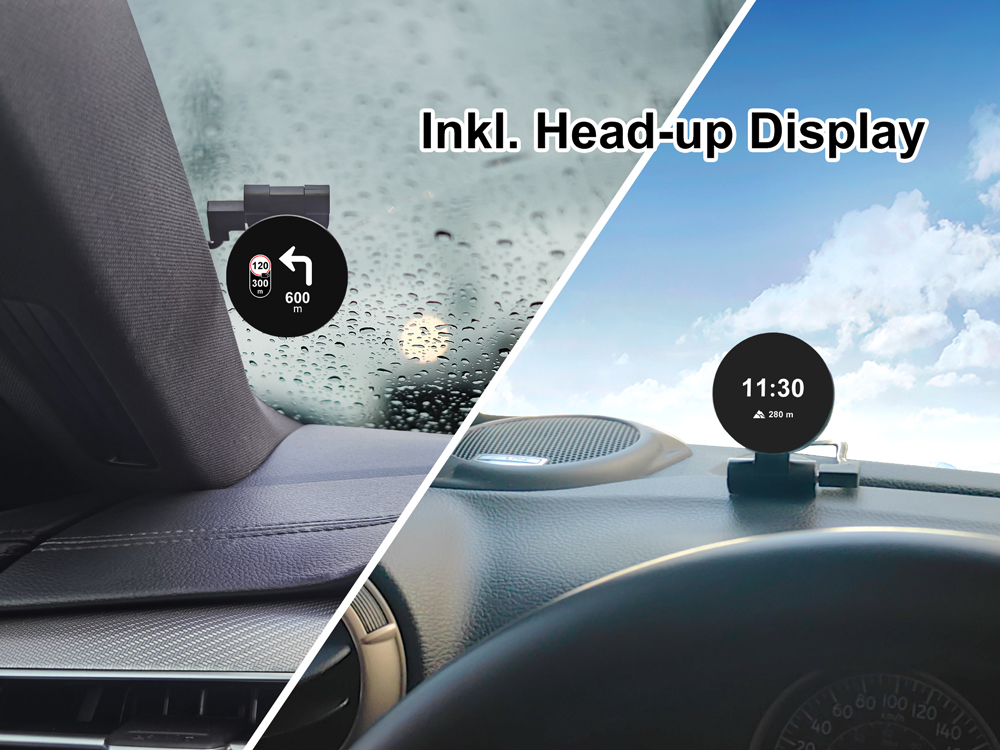

Head-up display

• Display: 1.4-inch LCD
• Supports the display of time, date, altitude, navigation information from Dynaway, Apple Maps with CarPlay and Google Maps with Android Auto, as well as vehicle speed and Blitzer.de information on

Z-Link

• Compatible with Apple CarPlay, Wireless CarPlay, Android Auto, and Wireless Android Auto
• Compatible with SmartPhone Mirroring
• * The Wireless Android Auto feature included in Z-Link does not guarantee compatibility with all Android phones.

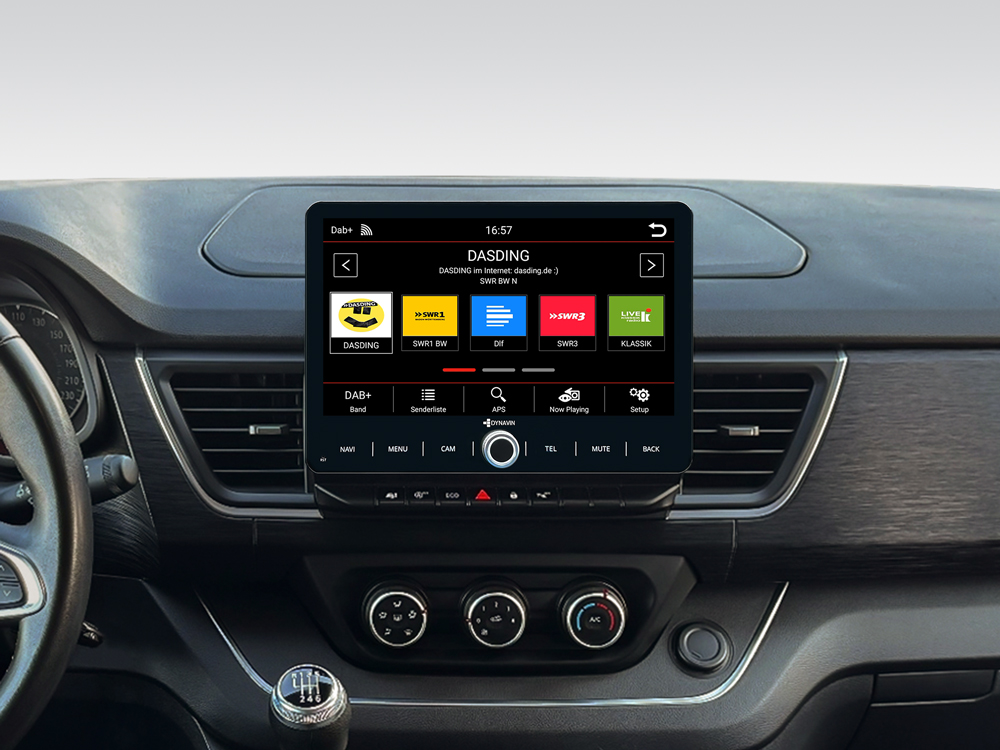

DAB+

• Integrated DAB/DAB+
• DAB+ to DAB+ Service Following
• Seamless Blending (automatic switching between DAB+ and FM)
• SLS (Slideshow Service)
• DLS (Dynamic Labeling Service)
• Radio VIS (station coverage on your radio display)
• Station memory: 15 Program memory locations
• Integrated BT

Integrated BT module

• Specification standard: 3.0 and 2.1 + EDR
• -95dBm sensitivity, excellent anti-interference performance
• Supports low-power scanning function
• PBAP phone book synchronization with 1000 entries
• Hands-free function with HFP
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Individual profile connection: Hands-free function and music streaming
• Phone book: Automatic phone book transfer
• Support for dashboard display for caller alerts
• Support for storing connection history of multiple Mobile phones
• Display of the device name
• Call log: dialed number / received calls / missed calls
• Voice volume adjustment: adjustable for incoming and outgoing calls
• Microphone gain adjustment
• GSM signal strength display
• Battery level display

USB

• USB specification: USB 2.0, supports fast charging
• Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
• Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
• Image browsing (supported Formats: JPG/BMP/PNG/JPEG)
• Playback mode: Random play / Single track loop / All loop / Folder loop
• Image can be set as home screen
• Synchronize song album images
• Video playback speed x2/x4
• Memory playback progress
• Support dashboard display of songs/composers
• Support steering wheel control for song/volume up/down
• Search by file/folder name
• Supports up to 256 GB USB storage device

Sound tuning

• Maximum output power: 4 x 100W Class D (built-in 4 x 60W RMS Class D DSP amplifier)
• Adjustable subwoofer level, high-pass filter, low-pass filter, and phase
• Equalizer: 16-band parametric equalizer
• Fader and balance
• Digital time correction
• Adjustable crossover and gain on the front and rear channels
• Distortion (THD+N) < 1%
• DSP Resolution: 24 Bit
• Sampling Rate: 44.1 K

Radio

• FM Frequency Range: 87.5 – 108.0 MHz
• AM Frequency Range: 530 – 1710 KHZ
• FM Utility Sensitivity: 5-6 dB
• FM Stop Sensitivity: 22 dB
• AM Stop Sensitivity: 21 dB
• With Left and Right Stereo Channels
• Signal-to-Noise Ratio: 56 dB
• Manual Station Preset for 15 Transmitter
• RDS functions: AF, TA, station text
• Automatic station search function
• High-cut high-frequency attenuation function
• Support for alternating FM/AM memory images
• Optional radio antenna on/off

GPS

• GPS antenna included
• GPS reception frequency 1575.42 ± 1 MHz
• GPS reception sensitivity -165 dB max
• Positioning accuracy: 10 m, 2D RMS
• Data update rate: 1 Hz
• Reacquisition time: 0.1 s in Average

A2DP

• Synchronize Bluetooth music with your mobile phone
• Display song title/lyrics/composer/singer
• Steering wheel can control song/volume up/down
• Song title/lyrics can be displayed on the dashboard

Scope of delivery:

• Display screen
• Head unit
• Head-up display
• Connection cable
• GPS antenna
• DAB antenna
• USB extension cable
• Adapter for factory USB Connection
• Dual digital microphones
• Rear view camera cable
• Antenna adapter
• Steering wheel control cable
• Connection cable
• Metal bracket
• BT Wi-Fi ANT
• Reset pin
• Tool for removing the bezel and pulling the cable through
