- Order number: 02037SPH-EVO98DAB
- EAN 4988028512803
Pioneer SPH-EVO98DAB - Moniceiver
The 9" SPH-EVO98DAB media center from Pioneer offers maximum flexibility for installation in various vehicle types thanks to its modular design – even those where a conventional media center could not previously be integrated. The system is equipped with a 9" (23 cm) capacitive touchscreen and offers user-friendly smartphone connectivity that supports wireless Apple CarPlay® and Android Auto™.
The media center also features a digital DAB/DAB+ radio for crystal-clear radio reception, Bluetooth® for wireless music listening and hands-free calling, and a 13-band graphic equalizer that allows you to customize the sound. The CarAVAssist app makes the media center even easier to control and offers access to Waze, a popular navigation app.

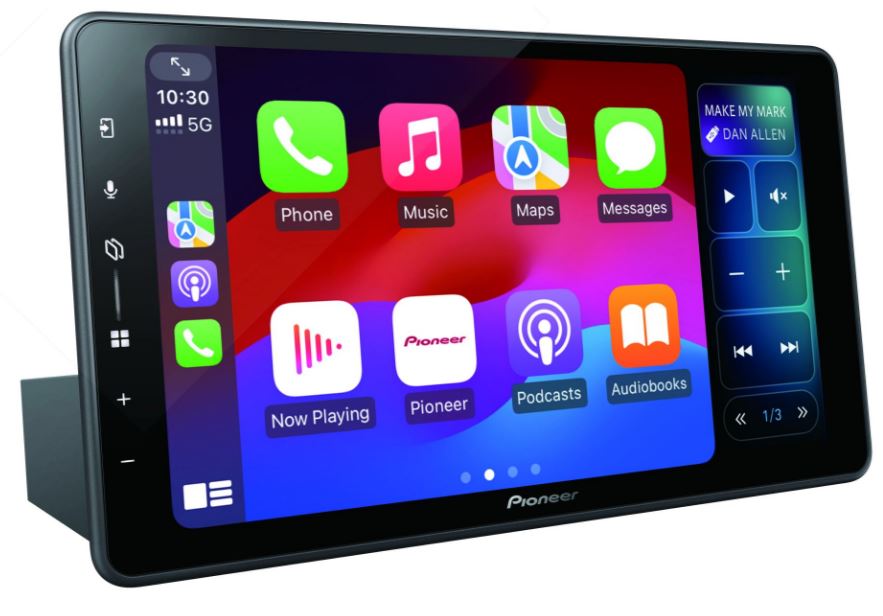

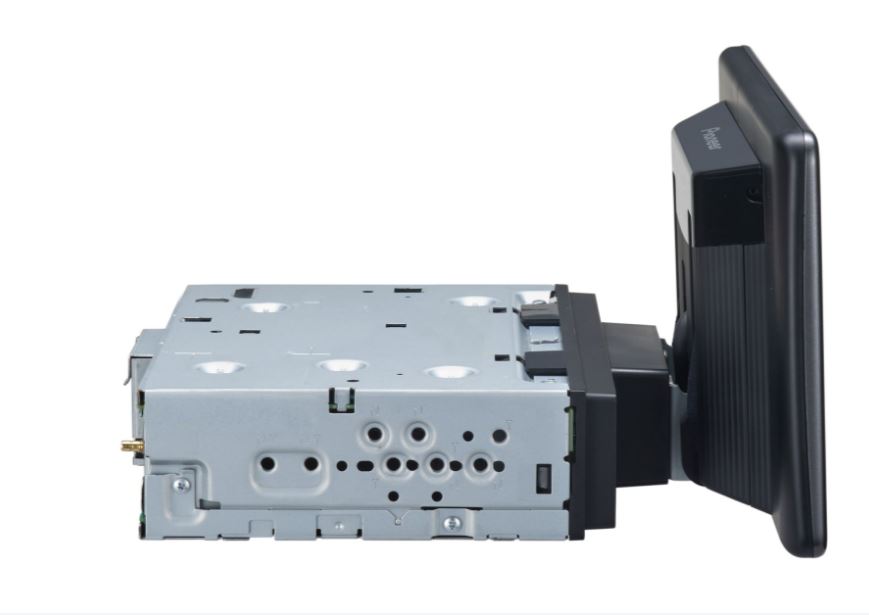

The SPH-EVO98DAB is available in two versions: as a "floating" display that can be freely positioned, and as a "tablet" version that can be integrated directly into the dashboard. It fits into most standard 1-DIN and 2-DIN installation slots and is also available with vehicle-specific installation kits. Thanks to its universal mounting options, it can even be integrated into vehicles where the installation of conventional media center solutions would not be possible.
With the SPH-EVO98DAB, Pioneer offers two innovative functions for an even better user experience:

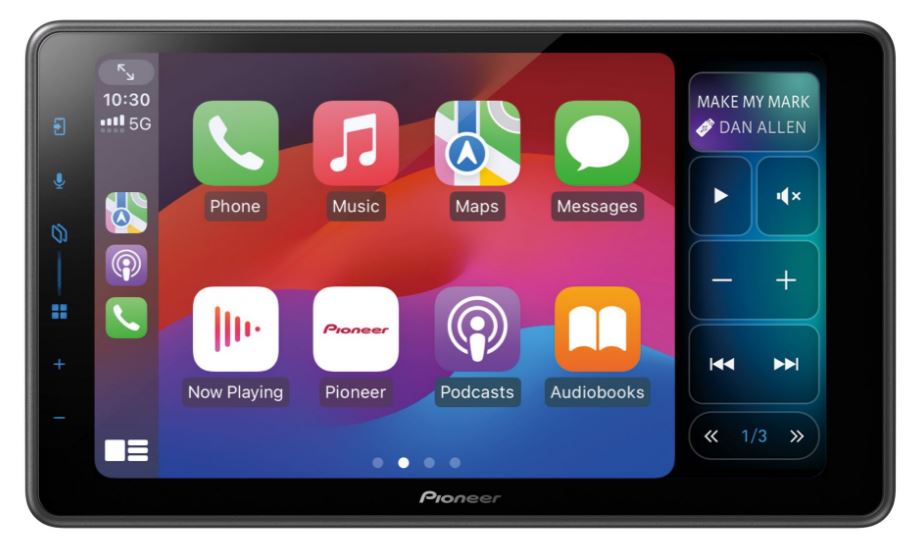

Split-screen mode: This allows you to display two functions on the screen simultaneously, e.g. B. the Apple CarPlay or Android Auto user interface and another application such as Waze, whereby the screen size can be dynamically adjusted.
Individual display mode: You can switch between a "light" and a "dark" mode to adapt the screen display to your preferences and the lighting conditions – for optimal readability at all times.
This media center combines the latest entertainment technology with the highest level of comfort and can be perfectly tailored to your needs.
Technical specifications
- Wi-Fi®

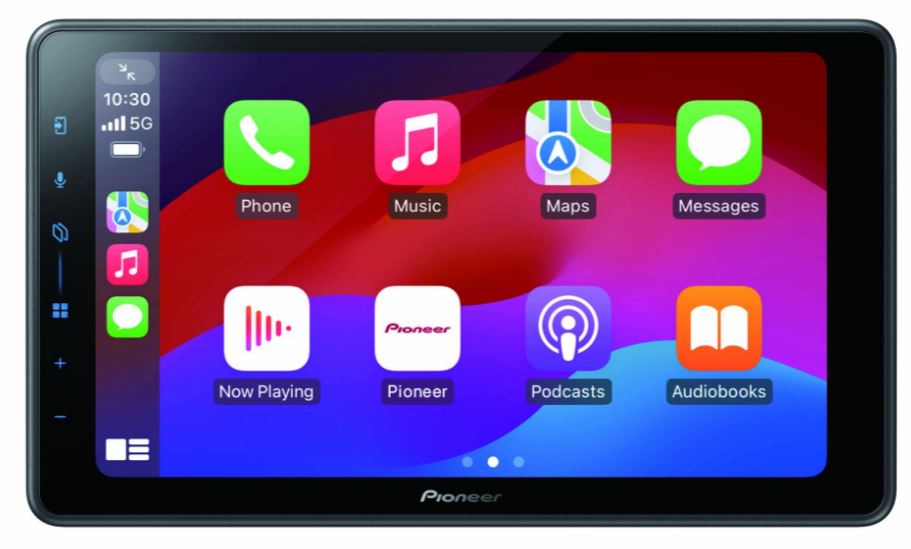

- Apple CarPlay
- Apple CarPlay connection: Wireless connection or wired USB connection

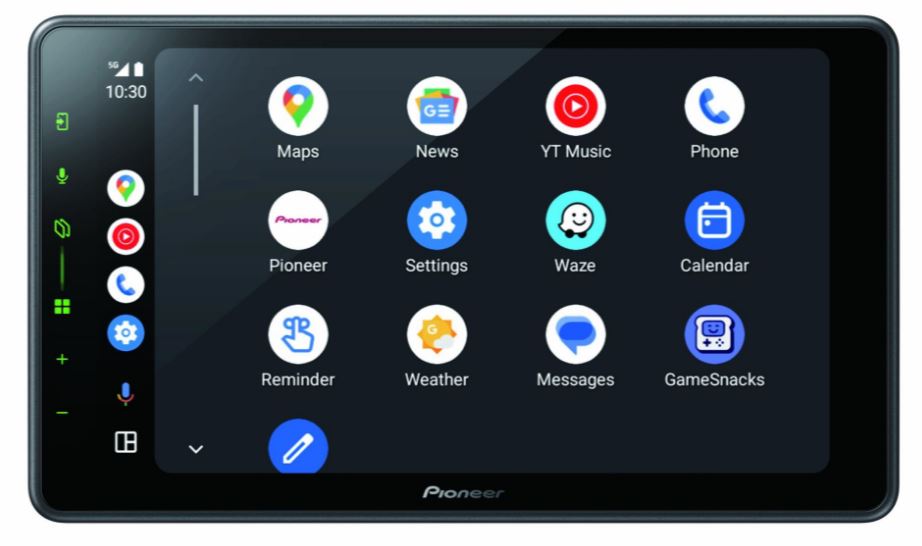

- Android Auto
- Android Auto connection: Wireless connection or wired USB connection USB connection
- Waze Yes. (Via Apple CarPlay/Android Auto)
- Digital Radio Certification Mark (Digital Tick Mark)
- Bluetooth®
- 9" Capacitive Touchscreen
- Dual Camera Input (N)
- Multicolor Illumination
- CarAVAssist App (N) iPhone / Android
- Modular Design
- WebLink
- Mechafree
- Auto-Mute Phone Call
- USB Input
- Camera Input (N) 2
- Screen Size 9" (approx. 23 cm)
- Customizable Button and Display Illumination
- Installation Type: Modular and 1-DIN
- Button Illumination RGB color adjustment (210,000 colors)
- Screen: 9" capacitive touchscreen with multi-touch (23 cm)
- USB input 1
- DAB+
Playable formats
- Your iPhone or Android smartphone
- Bluetooth audio
Playable formats via USB
- MP3, WMA, AAC, WAV, DSD, and FLAC audio files
- Full HD video files: H.264, MKV, FLV, TS, and MPEG4
- Video files: MPEG2 and DivX
- Image files: JPEG
Audio
- FLAC
- 13-band graphic equalizer
- MOSFET amplifier with 4 x 50 W
- Graphic equalizer 13-band
- Network mode 3-way active switch
- Manual TA (Time Alignment)
- High Pass Filter
- Low Pass Filter
- Subwoofer Control
- Preamp outputs 3. (front, rear and subwoofer)
- Advanced Sound Retriever
- Program source level adjustment
- Loudness
Compatibility with Android
- Compatible with Android
- Quick Charge for Android devices
Tuner Functions
- DAB+ Digital
- RDS FM Radio
Connections
- Aux-in: 1 rear AV/AUX input
- Portable Device Connections: 1 rear AV/AUX input
- Suitable for hard-wired remote input
- CAN Bus UART
- Analog Video Output
- ISO Connector
Bluetooth
- Hands-free Making phone calls
- Additional Bluetooth features • Audio streaming • Automatic phone book transfer (1,000 contacts) • Automatic pairing with connection for 2 phones • Up to 5 phones can be registered • Automatic pairing via USB
- HFP/A2DP/AVRCP compatibility
| quantity: | 1 piece |
| Lightning: | Freely adjustable, Amber, Blau, Grün, Orange, Rot, Weiß |
| Cinch Output: | 3 pairs |
| Peak Power (in Watt): | 4 x 50 |
| Medien: | USB, Android Auto, HDMI, Android Music, Apple Carplay, Apple/Ipod Music, AUX-In, Bluetooth, DAB+, USB hinten |
| Product group: | 2-DIN Radios |
| Radio Size: | 1-DIN |
| Radio Features: | GPS Antenne (im Lieferumfang) , Zündlogik , Car specific, HDMI, low mounting depth, capacitive Touchscreen, HDMI, Car specific |
